ASSA ABLOY ACCENTRA 1900 Series 1912, 4, 1915, 6 Door Closer Regular Hold Open Arm Sizes 2-4, 5 or 6_7319-0103

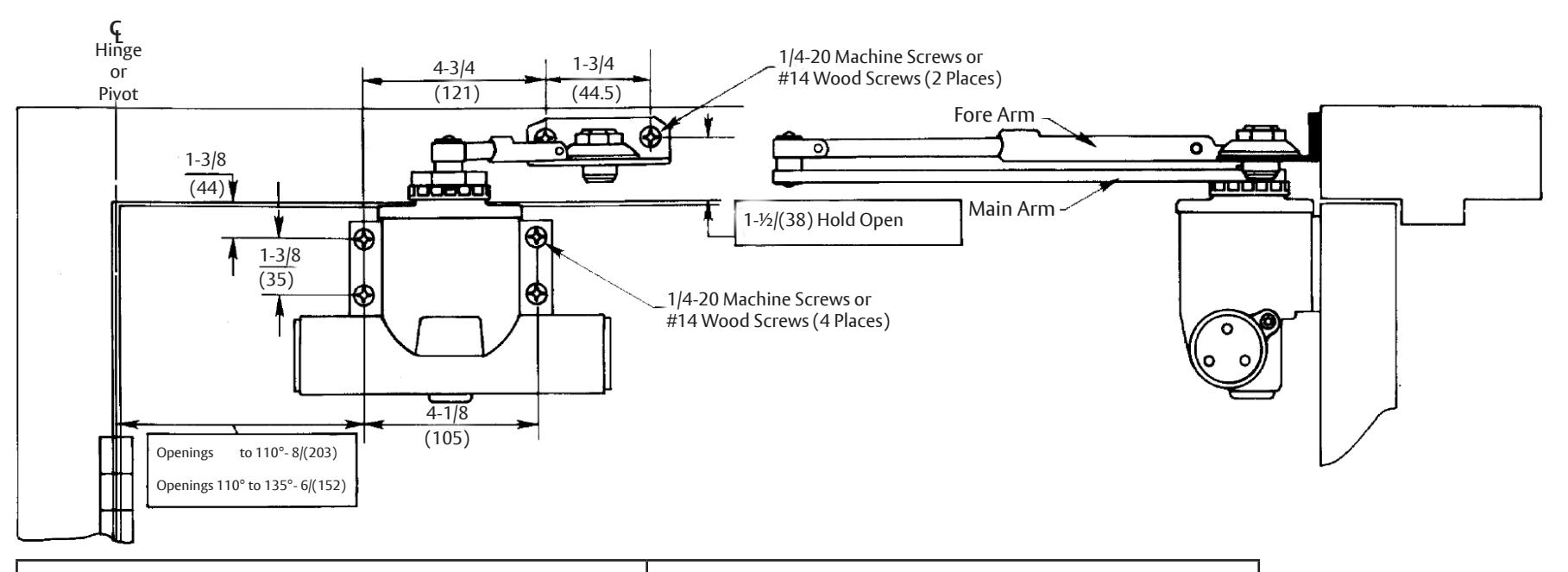

This template covers all holder arm installations from 90° to 135°.

Notes:

• 1. Do not scale drawing.

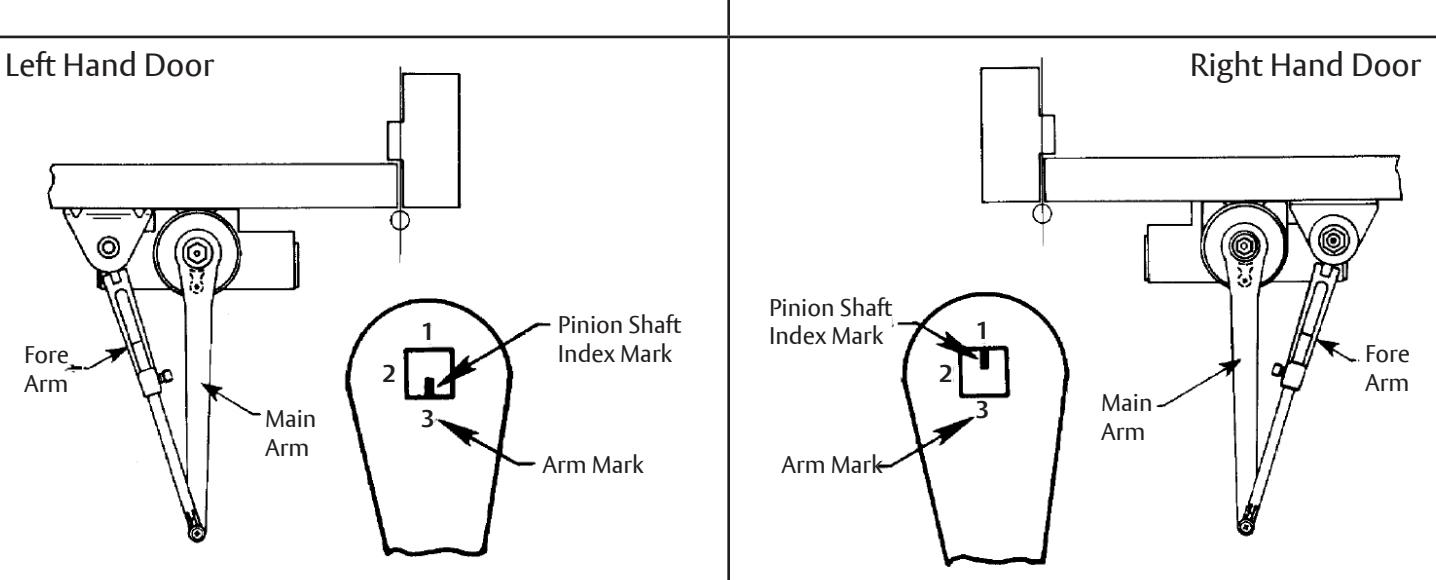

• 2. Right habd door shown.
• 3. Dimensions are inches (mm).
• 4. Hold Open Arm closers are not permitted to be used on fire doors.

Copyright © 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

1910 Series Door Closers Regular Arm Installation Hold Open Sizes 1912/4 or 1915/6 Date: 12/23

Template Number: 7319-0103

Sheet: 1 of 1
