ASSA ABLOY ACCENTRA 1900 Series 1902, 4, 1905, 6, 1912, 4, 1915, 6 Door Closer Non-Hold and Hold Open_7319-0143

This Template Covers Installations to 180°

When Using Hold Open Arms

Hold Open-Arm is not handed: Holder adjusting nut Up for Left hand Down for Right hand

Experience a safer and more open world

Copyright © 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

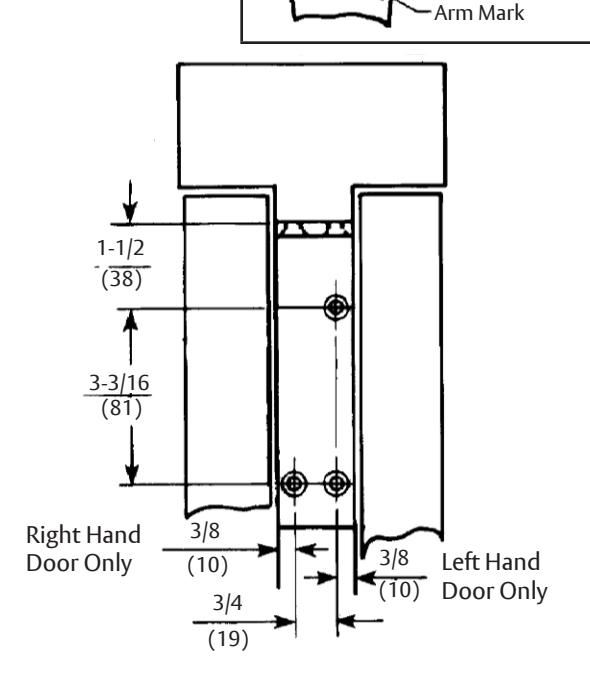

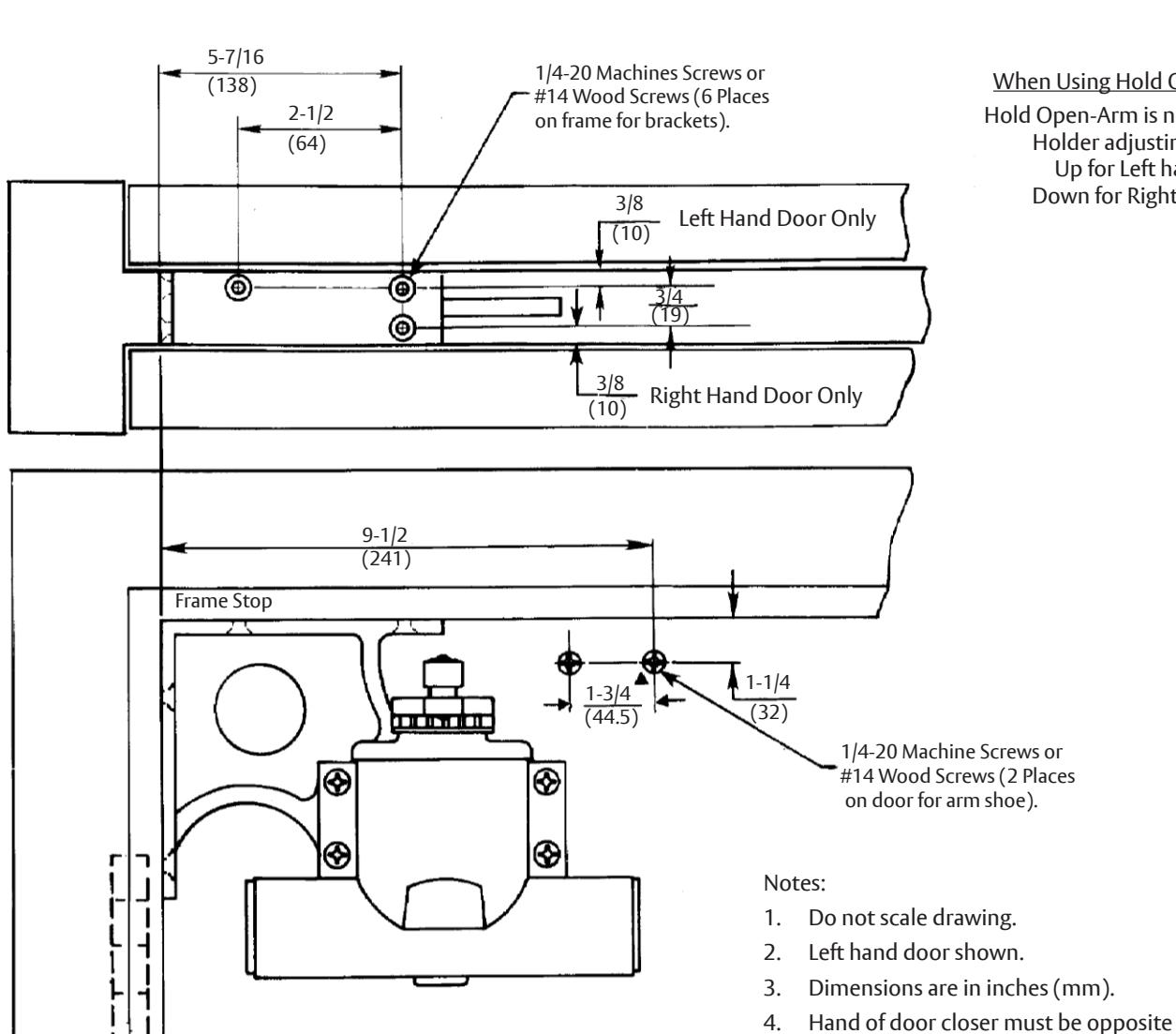

1900 Series Door Closers with 1950 Corner Bracket Standard Drop Corner Bracket Installation Non-Hold Open Sizes 1902/4 or 1905/6; Hold Open Sizes 1912/4 or 1915/6

from hand of door.

to be used on fire doors.

5. Hold Open Arm closers are not permitted

Template Number: 7319-0143 Sheet: 1 of 1

Date: 12/23
