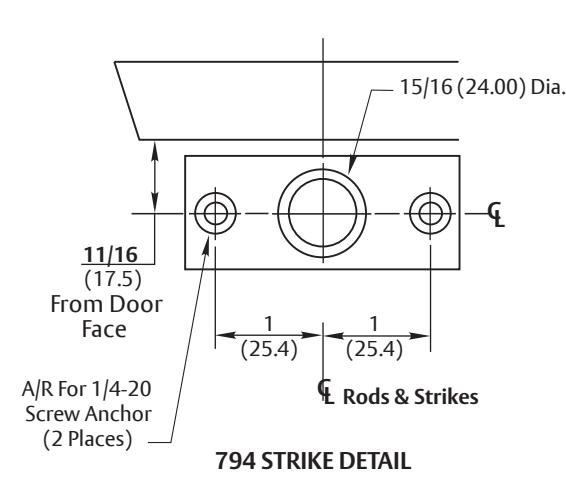

ASSA ABLOY ACCENTRA 1810(F), 2110(F) Wide Stile SVR 794 Floor Strike Optional SNB Wood or Composite_7421-1012

Open the original PDF document

View PDF

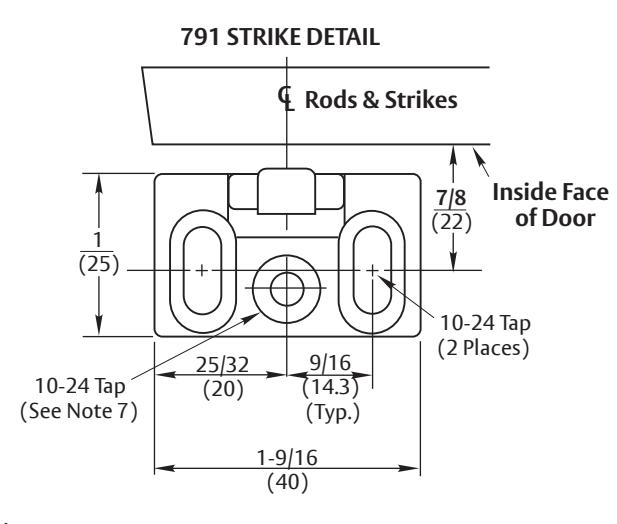

Reinforcement for 791 Strike (See Note 6)

Notes:

  • 1. Do not scale drawing.
  • 2. Dimensions are in inches (mm).
  • 3. LHR door shown. Preparation is typical for both door hands.
  • 4. Minimum door stile width: 4-1/2 (114).
  • 5. Prepare mounting holes when installing the device.
  • 6. Unreinforced frames require blind rivet nuts (by others) to mount the strike.
  • 7. This hole MUST be field located using physical part as template, after installation is complete and device is fully operational.
  • 8. For outside trim preparation see appropriate trim template.
  • 9. Provide adequate structural support to maintain door integrity after device installation with power tools, door use, or abuse.
  • 10. Device mount to hinge stile (not shown) requires hole location and preparation during device installation. Door structural requirements to support the device cases are similar for both door stiles.

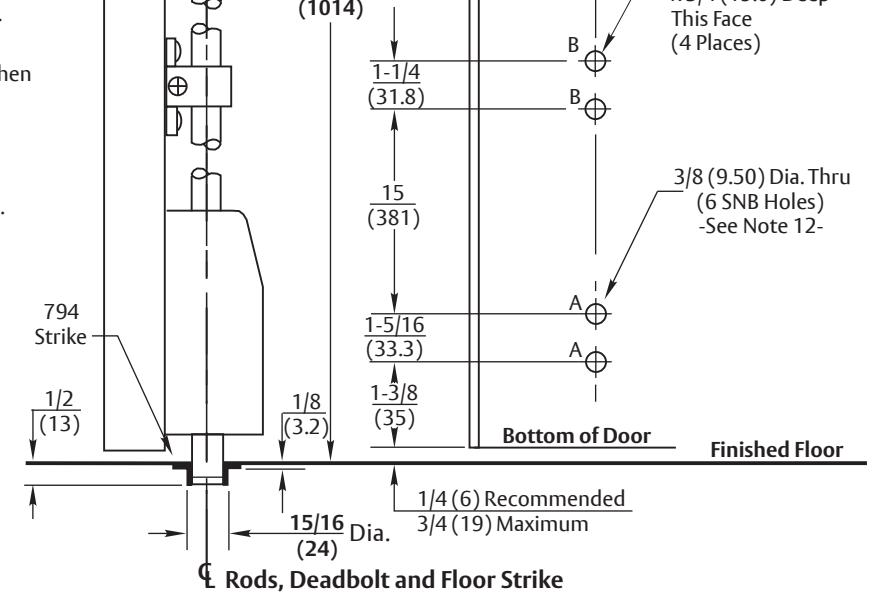

  • 11. Bottom bolt should retract to 1/8 (3.2) above floor strike. Floor coverings in the door path must be laid accordingly.
  • 12. Wood screws #14 x 1-1/2" (by others) permitted for solid core wood doors if pilot holes are used for installation, when door label allows its use.

2-1/4 (57) 1-5/16 (33.3)

Lock Edge

1-1/4 (31.8)

3-5/8 (92)

3-5/8 (92)

39-15/16

16-3/8 (416)

11/16 (17.5)

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-557-5078.

2110(F) & 1810(F) Surface Vertical Rod Fire/Panic Exit Devices with Optional 794 Floor Strike and SNB

Application for Wood or Composite Door and H.M. Frame

.140 (3.50) Dia. x 3/4 (19.0) Deep

CL Horizontal Reference (Device Centerline)

CL Door

A A

CL

2-3/4 (70)

B B

A

CL

A

Inside Face of Door

11/16 (17.5)

Rods & Strikes

Vertical Reference

7421-1012 DATE SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 04/10 12-23
