ASSA ABLOY ACCENTRA 1810(F), 2110(F) Wide Stile SVR 790 Floor Strike with Bottom Pullman Latch_7421-1010

Open the original PDF document

View PDF

Notes:

  • 1. Do not scale drawing.
  • 2. Dimensions are in inches (mm).
  • 3. LHR door shown. Preparation is typical for both door hands.
  • 4. Minimum door stile width 4-1/2(114).
  • 5. Prepare mounting holes when installing the device.

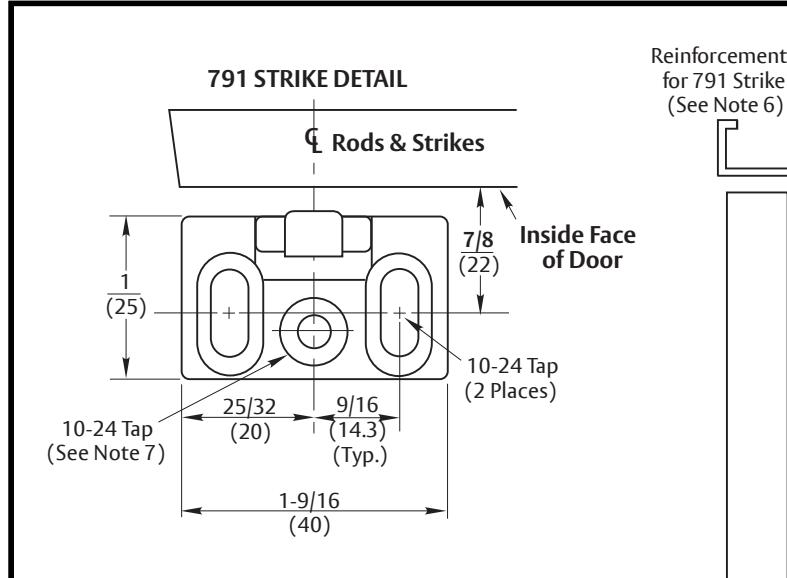

  • 6. Unreinforced frames require blind rivet nuts (by others) to mount the strike.
  • 7. This hole MUST be field located using physical part as template, after installation is complete and device is fully operational.
  • 8. For outside trim preparation see appropriate trim template.
  • 9. Provide adequate structural support to maintain door integrity after device installation with power tools, door use or abuse.
  • 10. Device mount to hinge stile (not shown) requires hole location and preparation during device installation. Door structural requirements are similar for both door stiles.

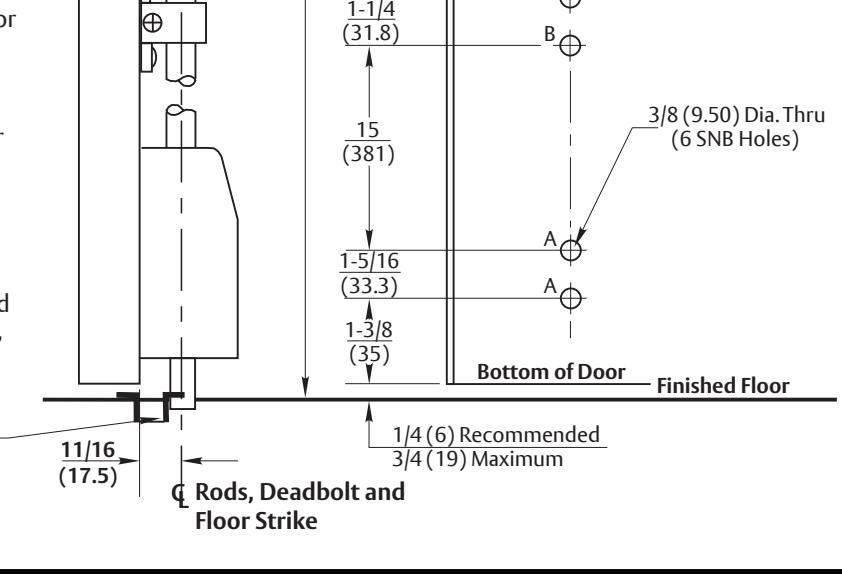

  • 11. Bottom bolt should retract to 1/8 (3.2) above floor strike. Floor coverings in the door path must be laid accordingly.
  • 12. Wood screws #14x1-1/2" (by others) permitted in solid core wood doors if pilot holes are used for installation, when door label allows its use.

2-3/4 (70)

A A

2-1/4 (57) 1-5/16 (33.3)

Lock Edge

1-1/4 (31.8)

3-5/8 (92)

3-5/8 (92)

39-15/16 (1014)

16-3/8 (416)

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE,

2110(F) & 1810(F) Surface Vertical Rod Fire/Panic Exit Devices with Bottom Pullman Latch Option

Standard Application for Wood or Composite Door and H.M. Frame with 790 Floor Strike MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-557-5078.

.140 (3.50) Dia. x 3/4 (19) Deep This Face (4 Places)

Horizontal Reference ( Device Centerline)

11/16 (17.5)

Rods & Strikes

Vertical Reference

CL

CLDoor

CL

A

A

B

B B

CL

Inside Face of Door

7421-1010 DATE SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 04/10 12-23

5/8 (16.00) Dia. 3/4 (19) Deep For 790 Strike
