ASSA ABLOY ACCENTRA 1810(F), 2110(F) Wide Stile SVR 790 Floor Strike with Bottom Pullman Latch_7421-0010

Open the original PDF document

View PDF

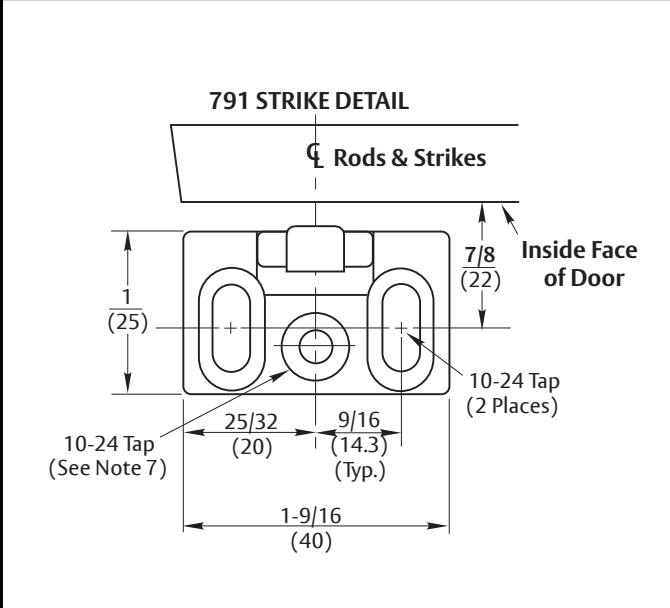

Reinforcement for 791 Strike (See Note 6)

2-3/4 (70)

A A

2-1/4 (57) 1-5/16 (33.3)

Lock Edge

1-1/4 (31.8)

3-5/8 (92)

3-5/8 (92)

16-3/8 (416)

1-1/4 (31.8)

39-15/16 (1014)

15 (381)

1-5/16 (33.3)

Notes:

  • 1. Do not scale drawing.
  • 2. Dimensions are in inches (mm).
  • 3. LHR door shown. Preparation is typical for both door hands.
  • 4. Minimum door stile width 4-1/2(114).
  • 5. Prepare mounting holes when installing the device.
  • 6. Unreinforced frames require blind rivet nuts (by others) to mount the strike.
  • 7. This hole MUST be field located using physical part as template, after installation is complete and device is fully operational.
  • 8. For recommended door reinforcements see template 7400-0000. Unreinforced doors require SNB option to mount the device components.
  • 9. Holes for optional SNB: 9/32 (7.00) dia. inside door face; 3/8 (9.50) dia. outside door face.
  • 10. Provide door stiffeners, as needed to prevent door collapse due to installation with power tools, door use, or abuse.
  • 11. Device mount to hinge stile (not shown) requires hole location and preparation during device installation.
  • 12. For outside trim preparation see appropriate trim template.

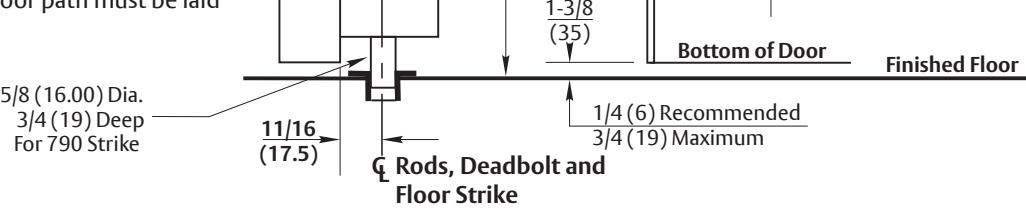

  • 13. Bottom bolt should retract to 1/8 (3.2) above floor strike. Floor coverings in the door path must be laid accordingly.

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE,

2110(F) & 1810(F) Surface Vertical Rod Fire/Panic Exit Devices with Bottom Pullman Latch Option

Standard Application for Metal Door and Frame with 790 Floor Strike

MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-557-5078.

.140 (3.50) Dia. This Face (4 Places)

Horizontal Reference (Device Centerline)

11/16 (17.5)

Rods & Strikes

Vertical Reference

CL

CLDoor

CL

A

A

B B

A A

B B

CL

Inside Face of Door

See Note 10

1/4-20 Tap (Std.) Or See Note 9 (SNB) -6 Places-

7421-0010 DATE SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 04/10 12-23
