ASSA ABLOY ACCENTRA 1810, 2110 Wide Stile SVR with Bottom Pullman Latch Option and SNB Wood_7421-1016

RESPONSIBILITY

PANIC TYPE LATCHING THRESHOLD TYPICAL DETAIL

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE,

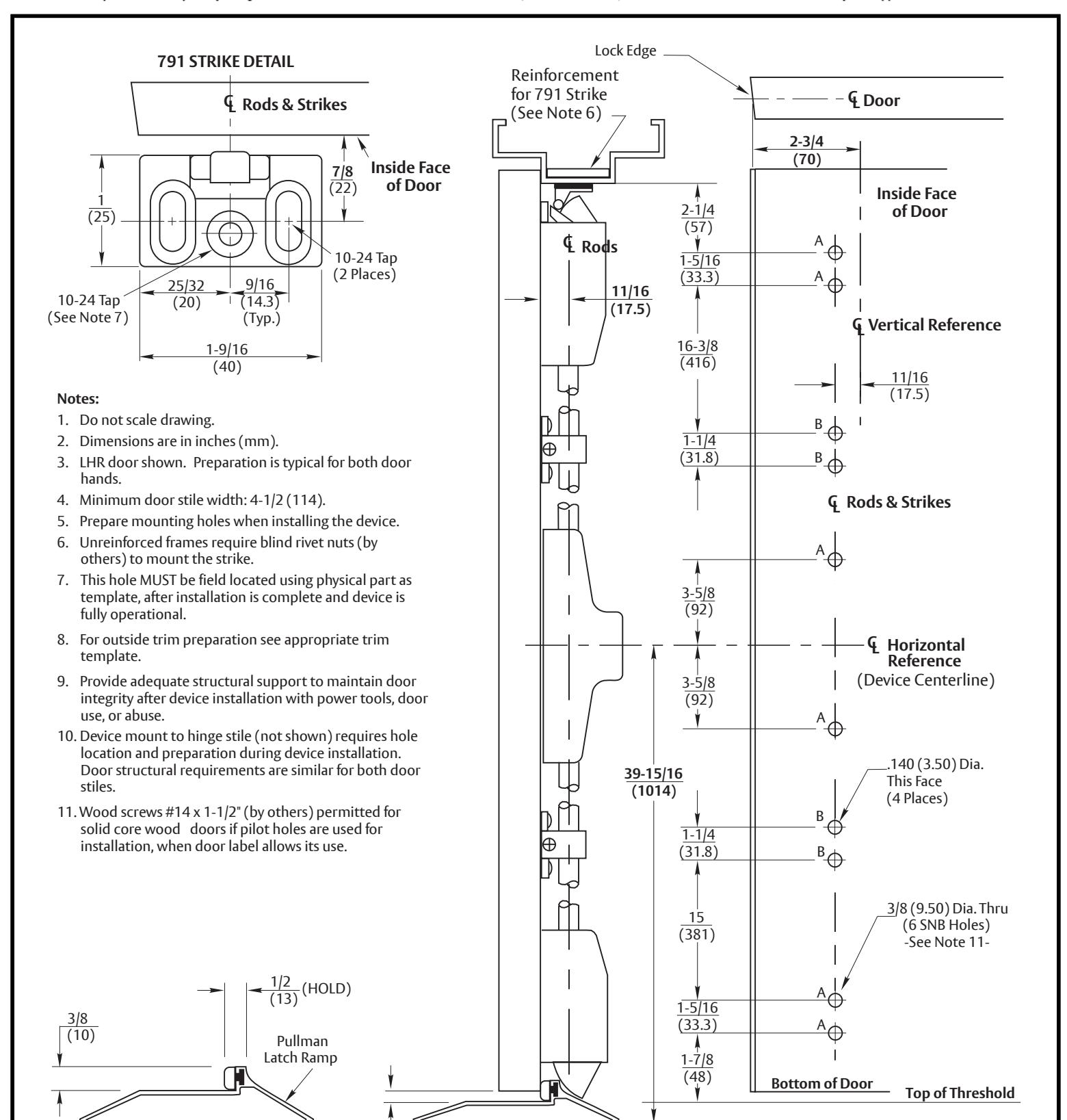

2110 & 1810 Surface Vertical Rod Panic Exit Devices with Bottom Pullman Latch Option

Recommended 3/4 Max

(19.1)

1/4 (6)

Application for Wood or Composite Door, H.M. Frame with Latching Threshold and SNB MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-557-5078.

Finished Floor

7421-1016 DATE SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 04/10 12-23
