ASSA ABLOY ACCENTRA 1810, 2110 Wide Stile SVR with Bottom Pullman Latch Option Metal Door and Frame_7421-0016

Open the original PDF document

View PDF

Reinforcement

& Rods

11/16

(17.5)

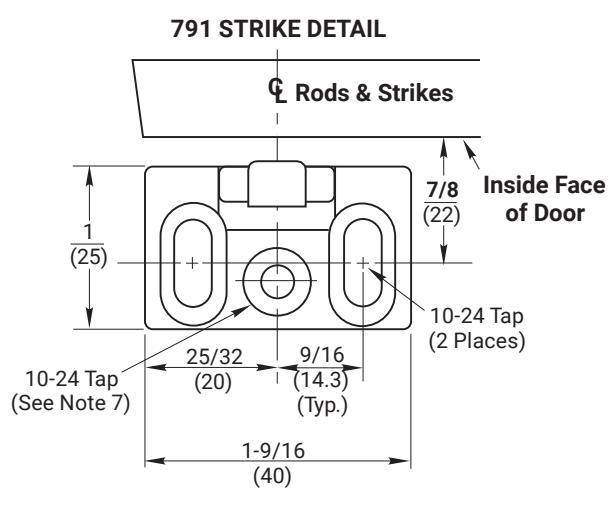

for 791 Strike

(See Note 6)

Lock Edge

(57)

1-5/16

(33.3)

16-3/8

\overline{(416)}

1-1/4

(31.8)

G Door

Inside Face

of Door

G Vertical Reference

11/16 (17.5)

See Note 10

2-3/4

(70)

В

В

Notes:

  • 1. Do not scale drawing.
  • 2. Dimensions are in inches (mm).
  • 3. LHR door shown. Preparation is typical for both door hands.
  • 4. Minimum door stile width 4-1/2(114).
  • 5. Prepare mounting holes when installing the device.
  • 6. Unreinforced frames require blind rivet nuts (by others) to mount the strike
  • This hole MUST be field located using physical part as template, after installation is complete and device is fully operational.
  • 8. For recommended door reinforcements see template 7400-0000. Unreinforced doors require SNB option to mount the device components.
  • 9. Holes for optional SNB: 9/32 (7.00) dia. inside door face; 3/8 (9.50) dia. outside door face.
  • 10. Provide door stiffeners, as needed to prevent door collapse due to installation with power tools, door use, or abuse.
  • 11. Device mount to hinge stile (not shown) requires hole location and preparation during device installation.
  • 12. For outside trim preparation see appropriate trim template.

(19.1)

RESPONSIBILITY DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

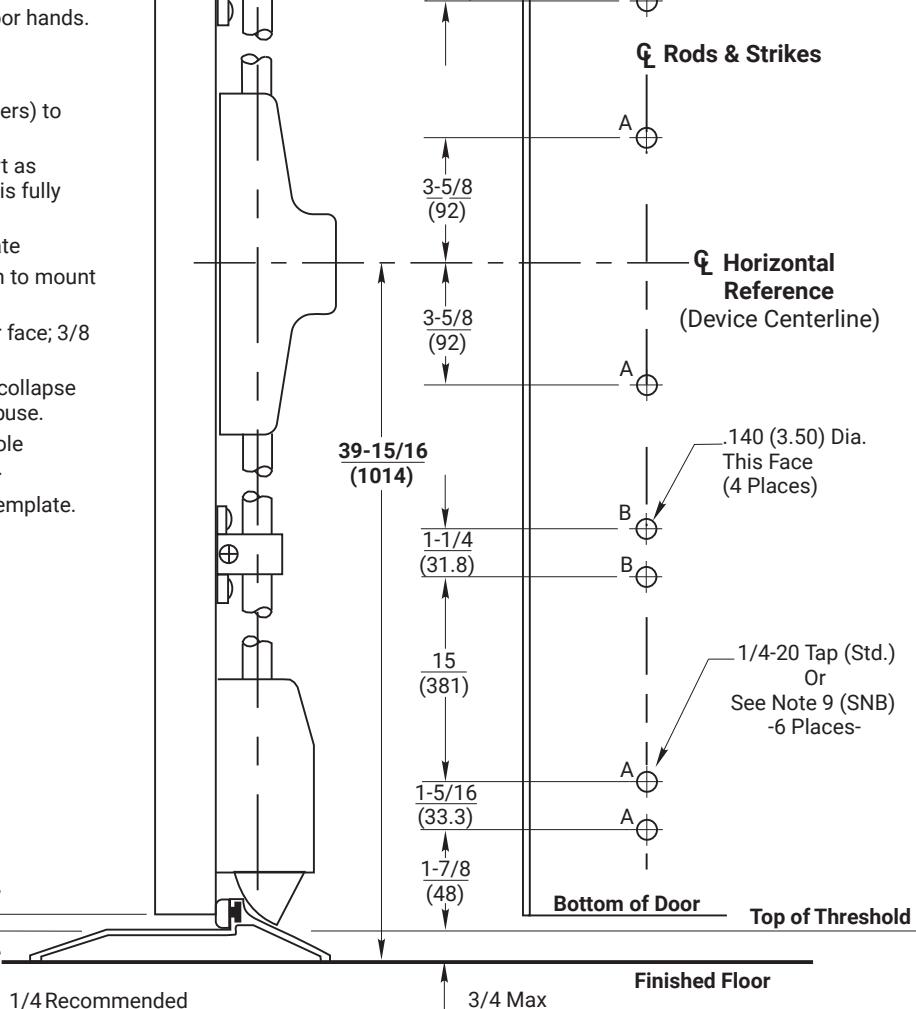

2110 & 1810 Surface Vertical Rod Panic Exit Devices with Bottom Pullman Latch Option

(6)

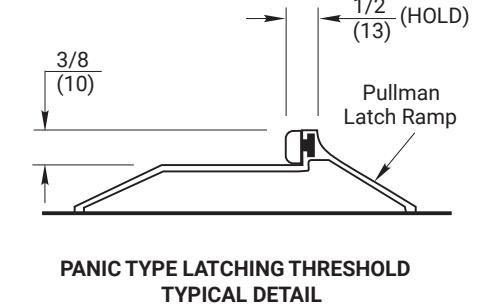

Application for Metal Door and Frame with Latching Threshold

1-855-557-5078 Ext. 2 www.accentra-assaabloy.com

ACCENTRA ASSA ABLOY

Experience a safer and more open world

Copyright © 2010, 2024, ASSA ABLOY ACCENTRA ^{\mathrm{to}} Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

SUPERSEDES 04/10 DO NOT SCALE DRAWING TEMPLATE NUMBER SHEET DATE 7421-0016 1 of 1 04-24
