ASSA ABLOY ACCENTRA 1810, 2110 Wide Stile SVR 702 Floor Strike with Bottom Pullman Latch Option_7421-1015

Lock Edge

• 1. Do not scale drawing.
• 2. Dimensions are in inches (mm).
• 3. LHR door shown. Preparation is typical for both door hands.
• 4. Minimum door stile width: 4-1/2 (114).
• 5. Prepare mounting holes when installing the device.

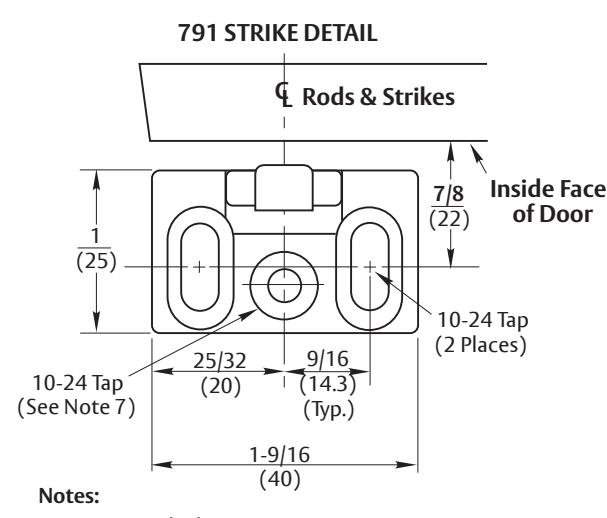

• 6. Unreinforced frames require blind rivet nuts (by others) to mount the strike.
• 7. This hole MUST be field located using physical part as template, after installation is complete and device is fully operational.
• 8. For outside trim preparation see appropriate trim template.
• 9. Provide adequate structural support to maintain door integrity after device installation with power tools, door use, or abuse.
• 10. Device mount to hinge stile (not shown) requires hole location and preparation during device installation. Door structural requirements to support the device cases are similar for both door stiles.
• 11. Wood screws #14 x 1-1/2" (by others) permitted for solid core wood doors if pilot holes are used for installation, when door label allows its use.

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE,

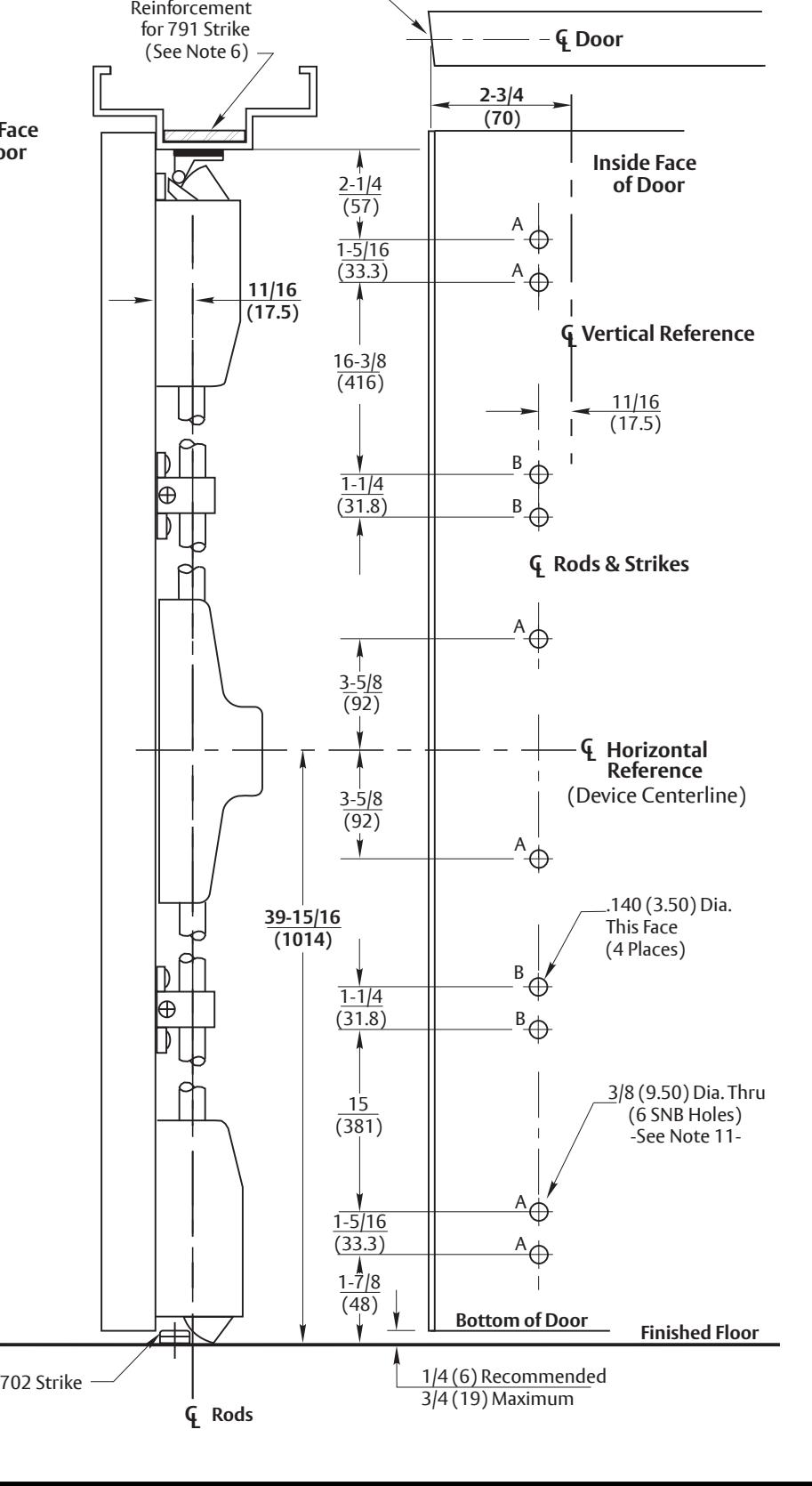

2110 & 1810 Surface Vertical Rod Panic Exit Devices with Bottom Pullman Latch Option

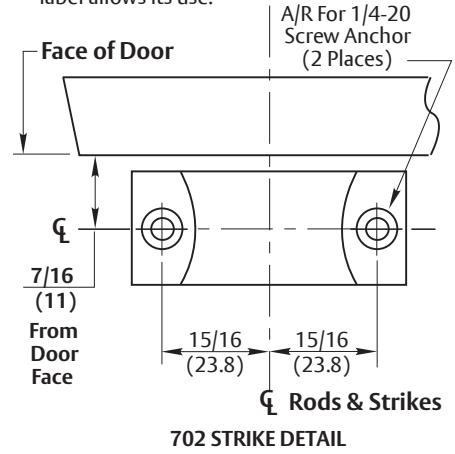

Application for Wood or Composite Door and H.M. Frame With 702 Floor Strike and SNB MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-557-5078.

7421-1015 DATE SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 04/10 12-23
