ASSA ABLOY ACCENTRA 1810, 2110 Wide Stile SVR 702 Floor Strike with Bottom Pullman Latch Option_7421-0015

Notes:

• Do not scale drawing.
• 2. Dimensions are in inches (mm).
• LHR door shown. Preparation is typical for both door hands.
• 4. Minimum door stile width: 4-1/2 (114).
• 5. Prepare mounting holes when installing the device.
• 6. Unreinforced frames require blind rivet nuts (by others) to mount the strike.

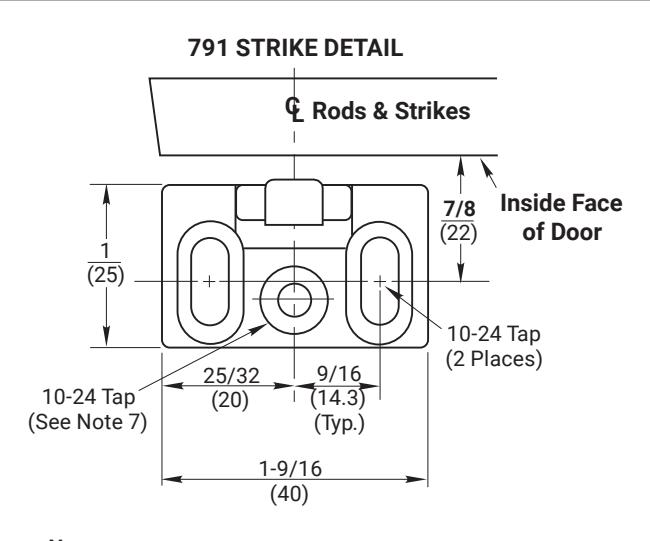

• 7. This hole MUST be field located using physical part as template, after installation is complete and device is fully operational.
• 8. For recommended door reinforcements see template 7400-0000. Unreinforced doors require SNB option to mount the device components.
• 9. Holes for optional SNB: 9/32 (7.00) dia., inside door face; 3/8 (9.50) dia., outside door face.
• Provide door stiffeners, as needed to prevent door collapse due to installation with power tools, door use, or abuse
• 11. Device mount to hinge stile (not shown) requires hole location and preparation during device installation.
• 12. For outside trim preparation see appropriate trim template.

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

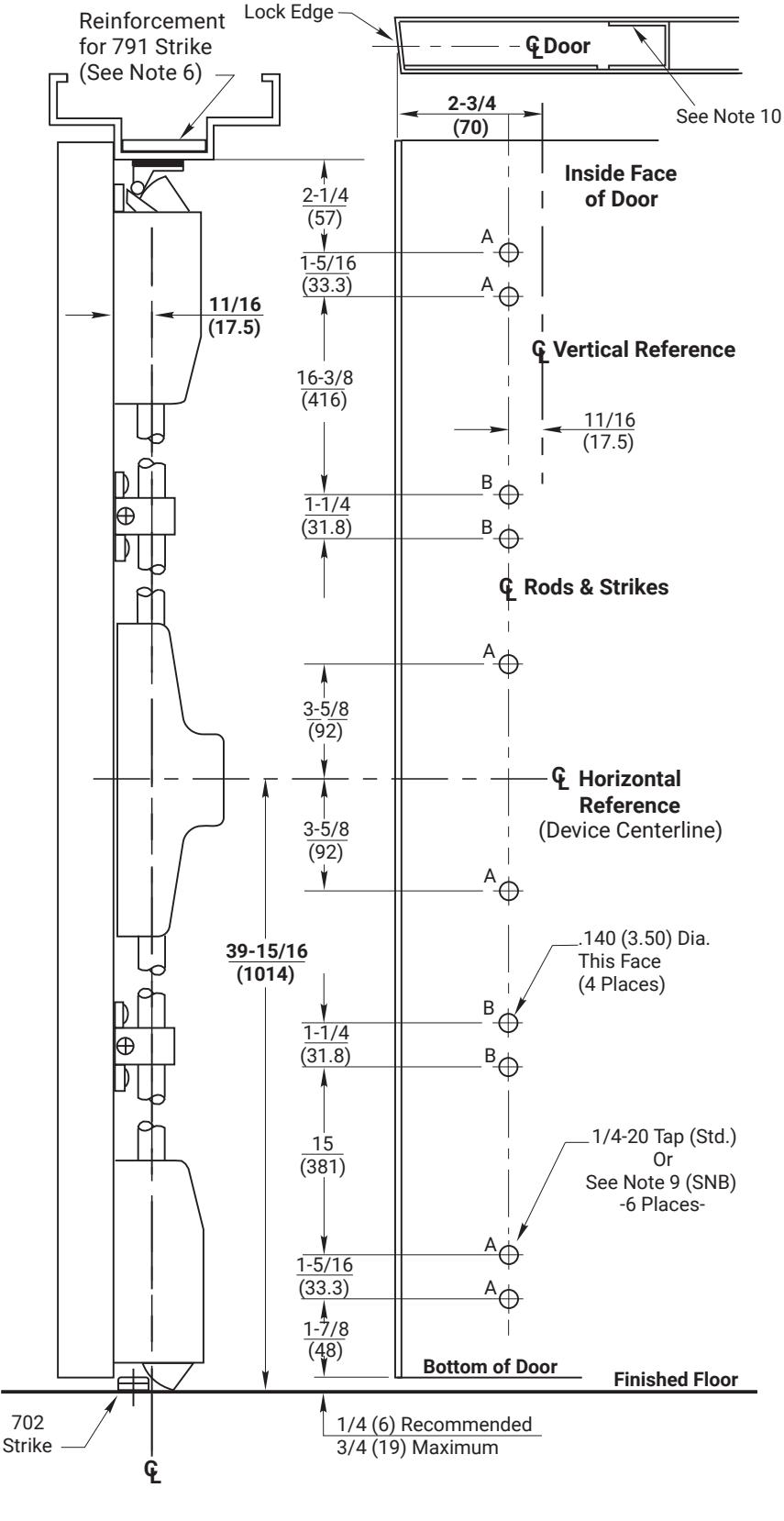

2110 & 1810 Surface Vertical Rod Panic Exit Devices with Bottom Pullman Latch Option

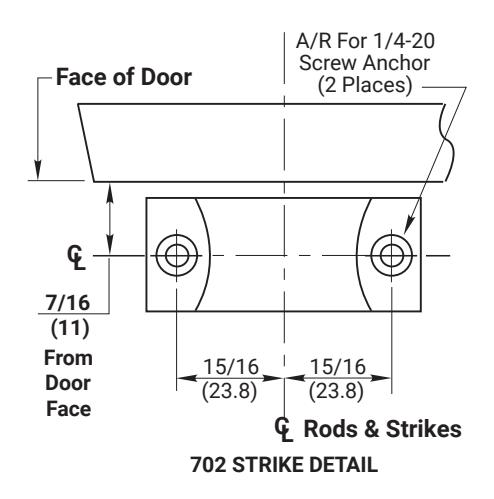

Application for Metal Door and Frame with 702 Floor Strike

1-855-557-5078 Ext. 2 www.accentra-assaabloy.com

ACCENTRA ASSA ABLOY

Experience a safer and more open world

Copyright © 2010, 2024, ASSA ABLOY ACCENTRA $^\{\backslash mathrm\{M\}\}$ Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

SUPERSEDES 04/10 DO NOT SCALE DRAWING TEMPLATE NUMBER SHEET DATE 7421-0015 1 of 1 04-24
