ASSA ABLOY ACCENTRA 1800(F), 2100(F) Wide Stile Rim 757F Strike Wood or Composite Door and H.M_7421-1002

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE,

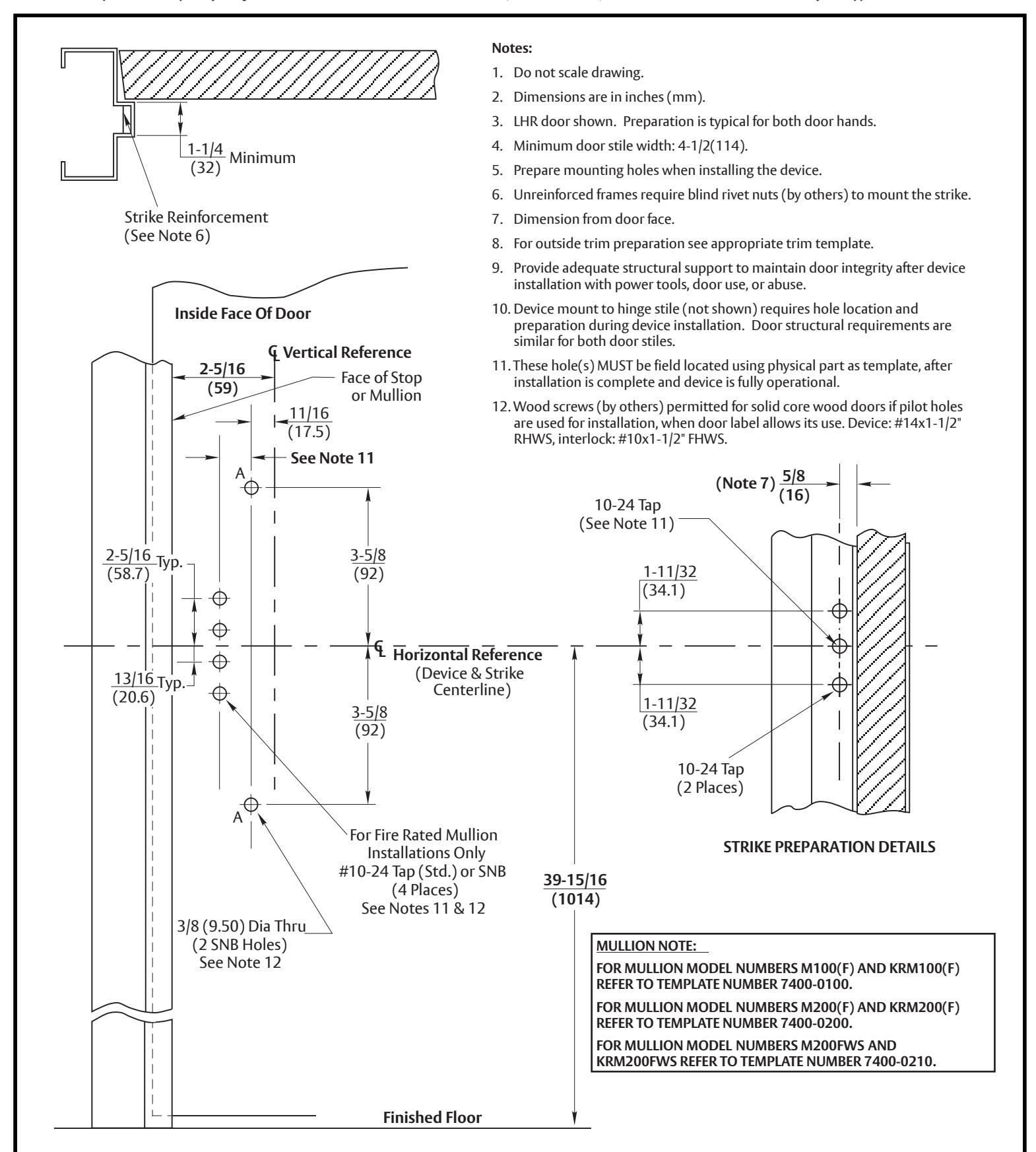

2100F & 1800F Rim Fire Exit Devices With 757F Strike

Application for Fire Labeled Wood or Composite Door and H.M. Frame or Mullion

MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-557-5078.

SUPERSEDES DO NOT SCALE DRAWING 04/10

TEMPLATE NUMBER

7421-1002 DATE

12-23
