ASSA ABLOY ACCENTRA 1800, 2100 Wide Stile Rim 793 Strike Pair of Metal Doors without Mullion_7421-0793

Open the original PDF document

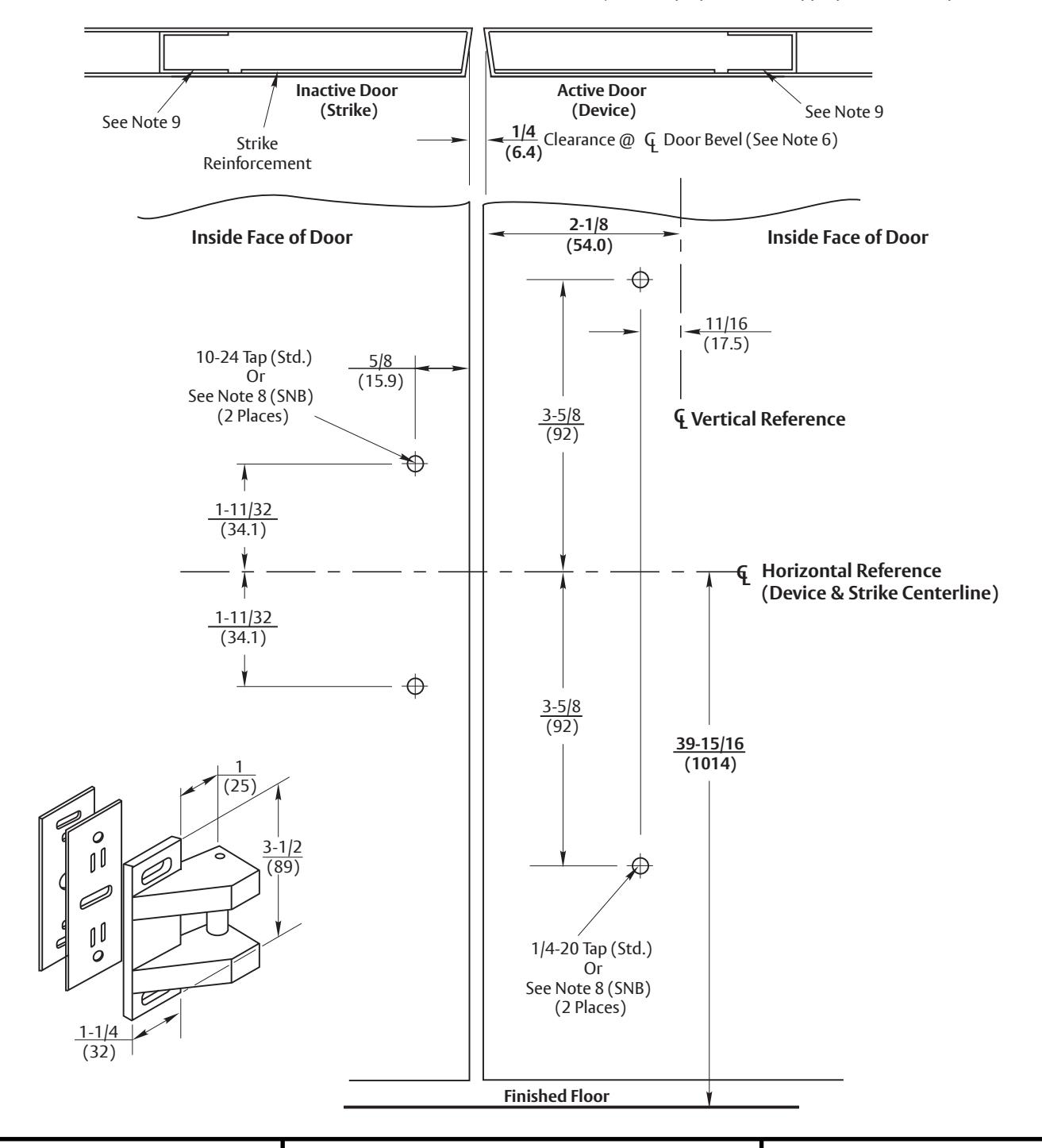

Notes:

1) Do not scale drawing.
2) Dimensions are in inches(mm).
3) LHR active pair shown. Preparation is typical for both hands.
4) Minimum door stile width: 4-1/2(114).
5) Prepare mounting holes when installing the device.
6) For square door edges, or other center clearance, compensate locating dimensions as required to maintain strike to device distance shown.
7) For recommended door reinforcements see template 7400-0000. Unreinforced doors require SNB option to mount the hardware.
8) Holes for optional SNB: 9/32(7.00) dia., inside door face; 3/8(9.50) dia., outside door face.
9) Provide door stiffeners, as needed to prevent door collapse due to installation with power tools, door use, or abuse.
10) Device mount to hinge stile (not shown) requires holes location and preparation during device installation.
11) For trim preparation see appropriate trim template.

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

2100 & 1800 Rim Panic Exit Devices With Optional 793 Strike

Application for Pair of Metal Doors without Mullion (Not for Fire Labeled Devices)

ASSA ABLOY

SUPERSEDES 04/10 DO NOT SCALE DRAWING TEMPLATE NUMBER 7421-0793 DATE 12-23
