ASSA ABLOY ACCENTRA 1500 Series 1530(F) Wide Stile Mortise ANSI A115.1 Strike Optional SNB Pair_7415-1031

Printed in U.S.A

Notes:

• 1. Do not scale drawing.
• 2. Dimensions are in inches (mm).
• 3. LHR active pair shown. Preparation is typical for both hands.
• 4. Minimum door stile width 4-1/2(114).
• 5. Prepare mounting holes when installing device.
• 6. Provide adequate structural support to maintain door integrity after device installation with power tools, door use, or abuse.
• 7. Device mount to hinge stile (not shown) requires hole location and preparation during device installation. Door structural requirements to support the device cases are similar for both door stiles.

• 8. For outside trim preparation see appropriate trim template.
• 9. Unless otherwise specified, door preparation and dimensional tolerances must conform to ANSI A115.W1.
• 10. Dimensions given about a centerline are symmetrical.
• 11. Dimension is 1 (25) if dust box is used.
• 12. Wood screws (#14x1-1/2" by others) permitted in solid core wood doors if pilot holes are used for installation, when door label allows its use.
• 13.Latchbolt centerline is 23/32 (18.2) below & Auxbolt centerline is 3/16 (4.8) above the centerline of lockfront.
• 14. For electrical device suffixes "SAFE" or "SECURE", also see template 7477-0001.

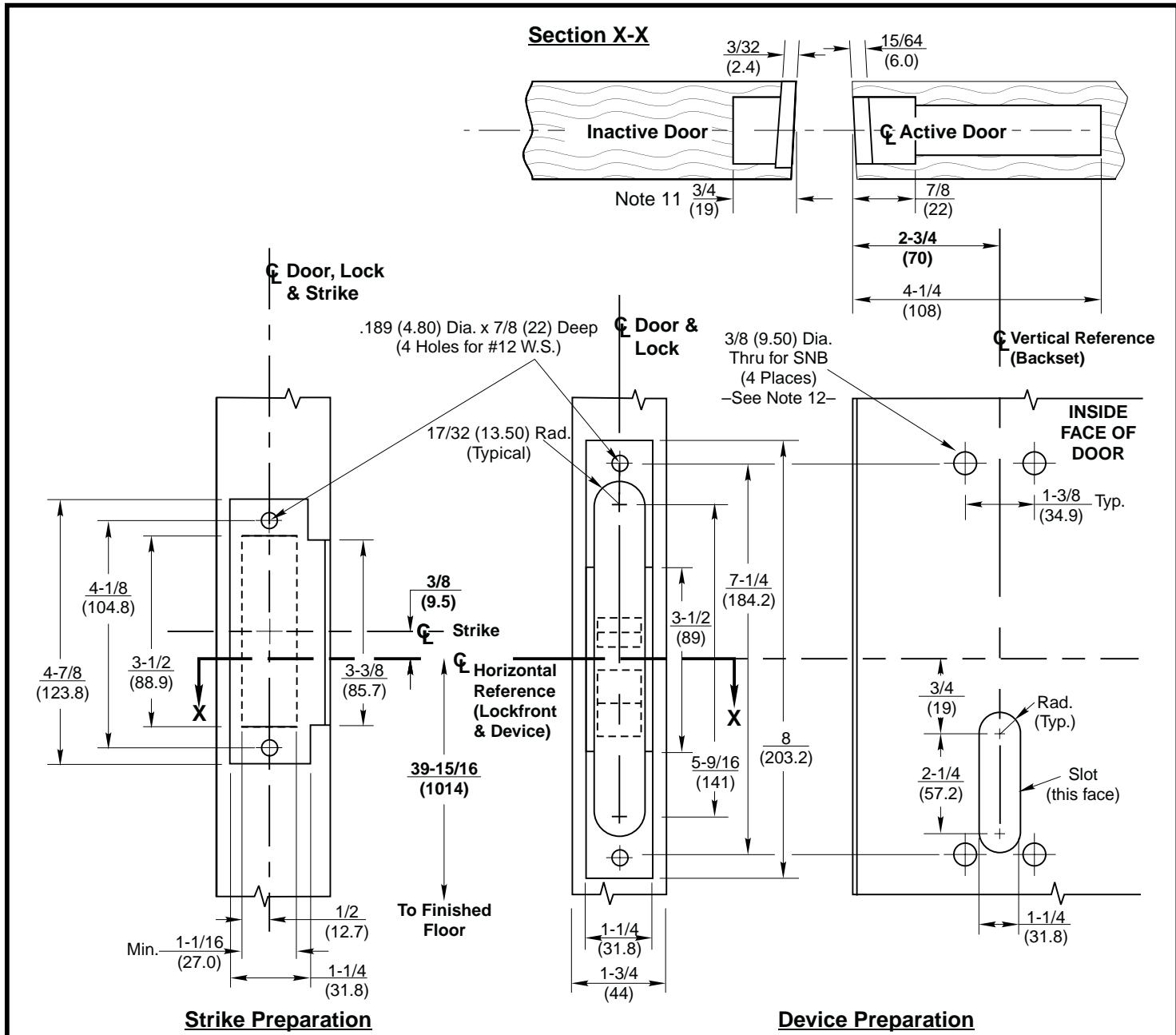

1530 and 1530F Mortise Exit Devices with ANSI A115.1 Strike & Optional SNB

Application to Pair of Wood or Composite Doors without Mullion

Yale Commercial Locks and Hardware

www.yalecommercial.com

TEMPI ATE NUMBER

7415-1031

8-99
