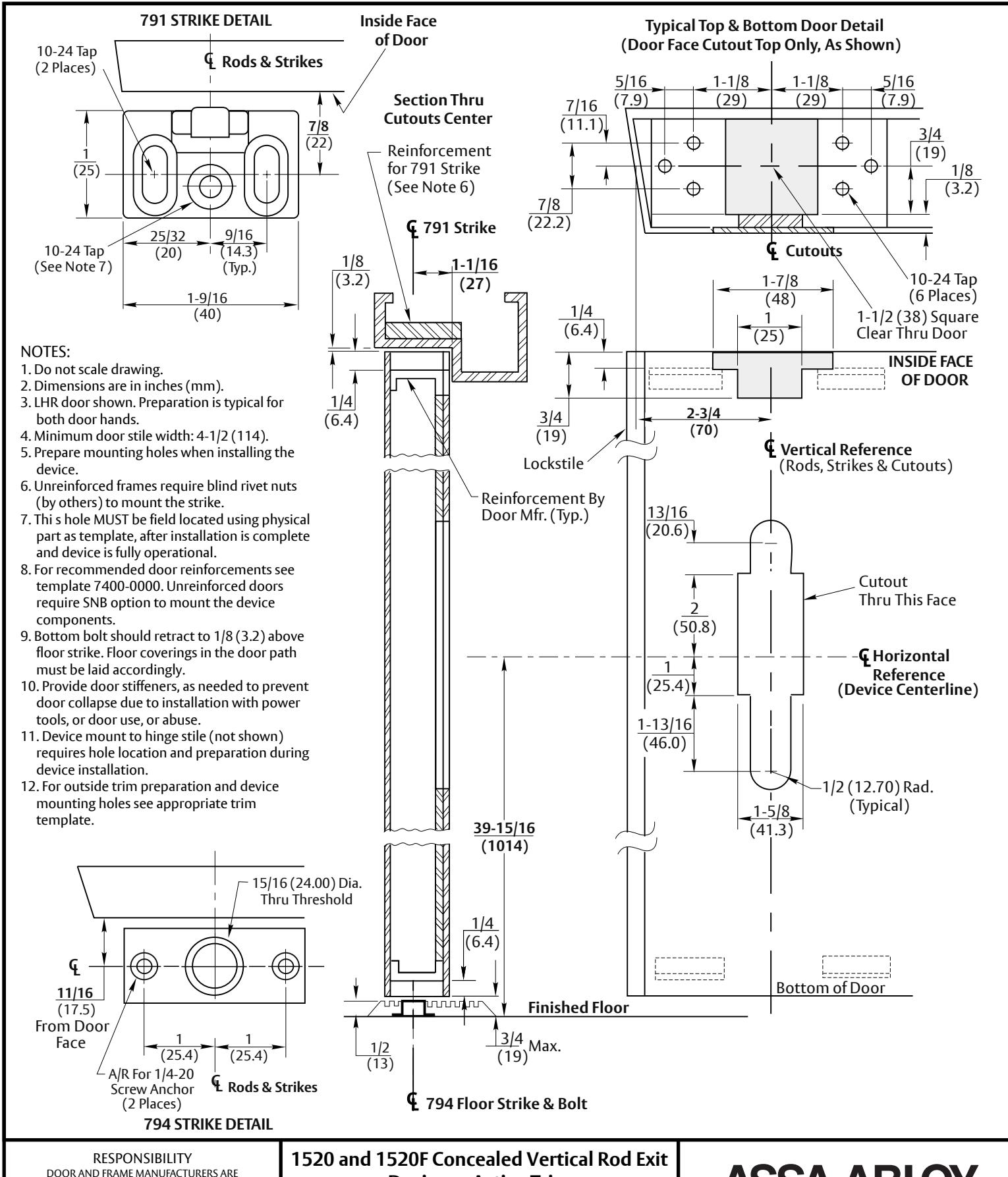

ASSA ABLOY ACCENTRA 1500 Series 1520(F) Wide Stile CVR 794 Floor Strike x Active Trim Metal Door_7415-0026

Open the original PDF document

RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERTY REINFORCED DOORS AND FRAMES REGARDLESS OF TYPE MATERIAL, OR METHOD OF CONSTRUCTION.

Devices x Active Trim

Application for Metal Door and Frame With 1/2" Threshold and 794 Optional Floor Strike

ASSA ABLOY

SLIPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 7415-0026 12 - 23
