RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

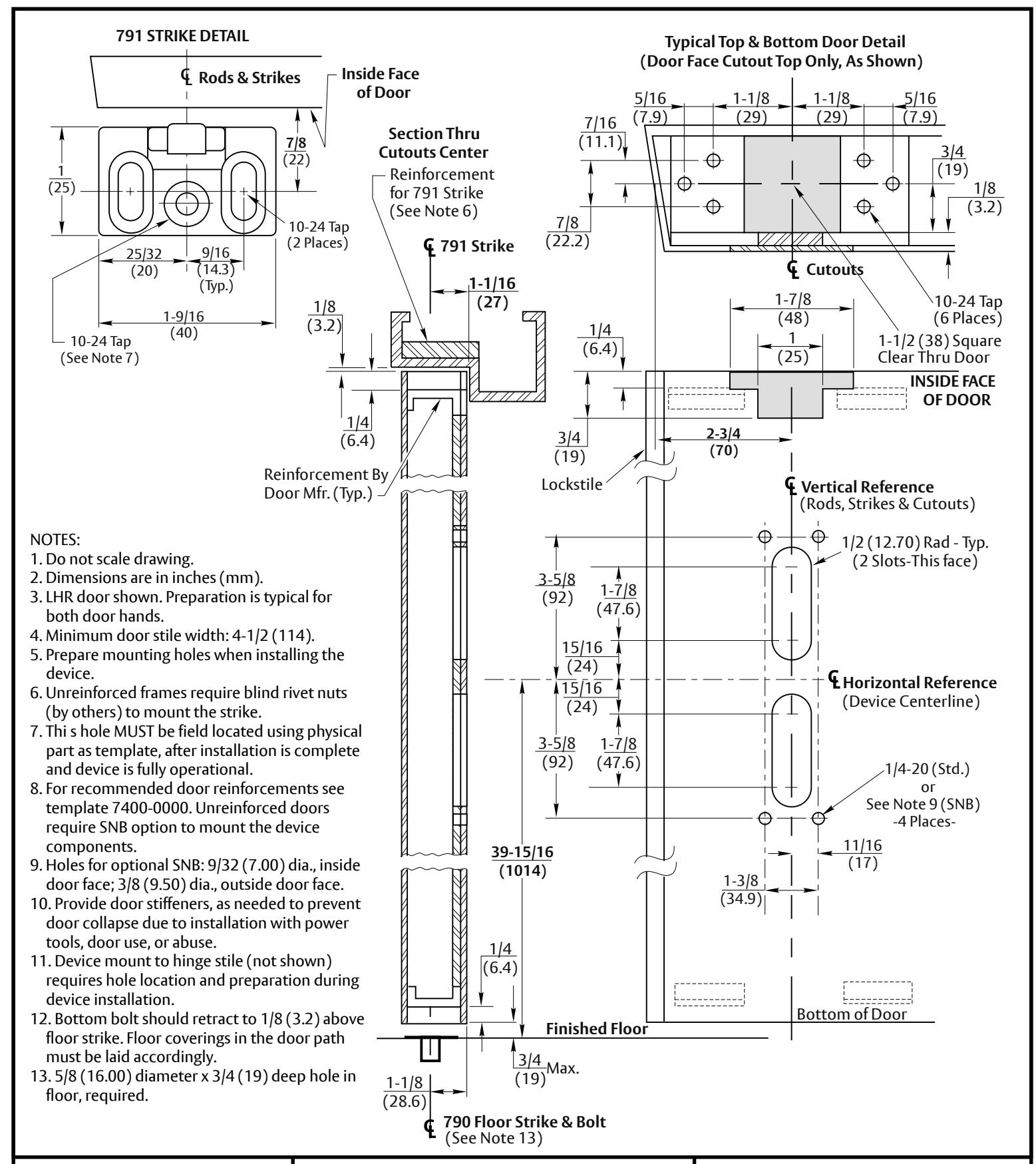

1520 and 1520F Concealed Vertical Rod Exit Devices

Application to Metal Door and Frame With 790 Floor Strike

ASSA ABLOY

SUPERSEDES 8/99 DO NOT SCALE DRAWING TEMPLATE NUMBER 7415-0020 DATE 12-23
