ASSA ABLOY ACCENTRA 1500 Series 1520(F) Wide Stile CVR 790 Floor Strike x Active Trim Metal Door_7415-0025
Open the original PDF document
View PDF
RESPONSIBILITY
DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

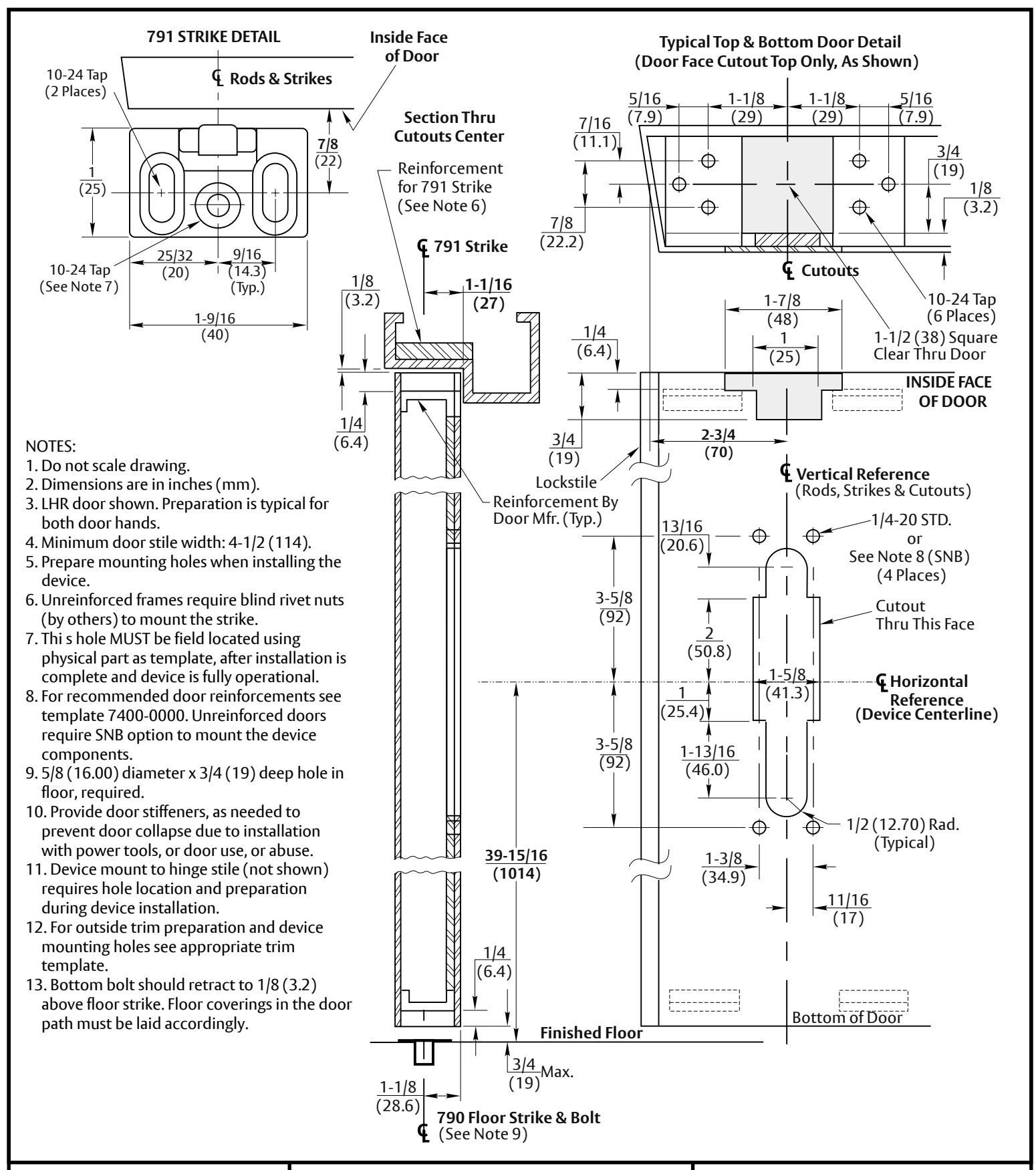

1520 and 1520F Concealed Vertical Rod Exit Devices x Active Trim
Application for Metal Door and Frame With 790 Floor Strike
Contact us for support at 1-855-557-5078.
ASSA ABLOY
SUPERSEDES 3/07 DO NOT SCALE DRAWING TEMPLATE NUMBER 7415-0025 DATE 12-23
