ASSA ABLOY ACCENTRA 1500 Series 1510(F) Wide Stile SVR 790 Floor Strike Metal Door and Frame_7415-0010

Lock Edge

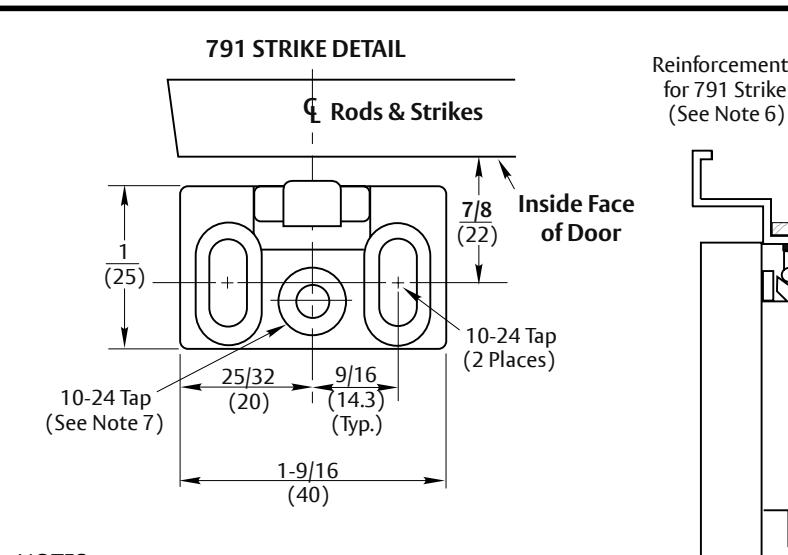

for 791 Strike (See Note 6)

NOTES:

• 1. Do not scale drawing.
• 2. Dimensions are in inches (mm).
• 3. LHR door shown. Preparation is typical for both door hands.
• 4. Minimum door stile width: 4-1/2 (114).
• 5. Prepare mounting holes when installing the device.
• 6. Unreinforced frames require blind rivet nuts (by others) to mount the strike.
• 7. Thi s hole MUST be field located using physical part as template, after installation is complete and device is fully operational.
• 8. For recommended door reinforcements see template 7400-0000. Unreinforced doors require SNB option to mount the hardware.
• 9. Holes for optional SNB: 9/32 (7.00) dia., inside door face; 3/8 (9.50) dia., outside door face.
• 10. Provide door stiffeners, as needed to prevent door collapse due to installation with power tools, door use, or abuse.
• 11. Device mount to hinge stile (not shown) requires hole location and preparation during device installation.
• 12. For outside trim preparation see appropriate trim template.
• 13. Cutout, thru inside door face, only required when outside trim is used.

2-3/4 (70)

A A

B B

C Vertical Reference L

(Device,Rods & Strikes)

Inside Face of Door

See Note 10

CLDoor

2-1/4 (57) 1-5/16 (33.3)

1-1/4 (31.8)

16-3/8 (416)

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE,

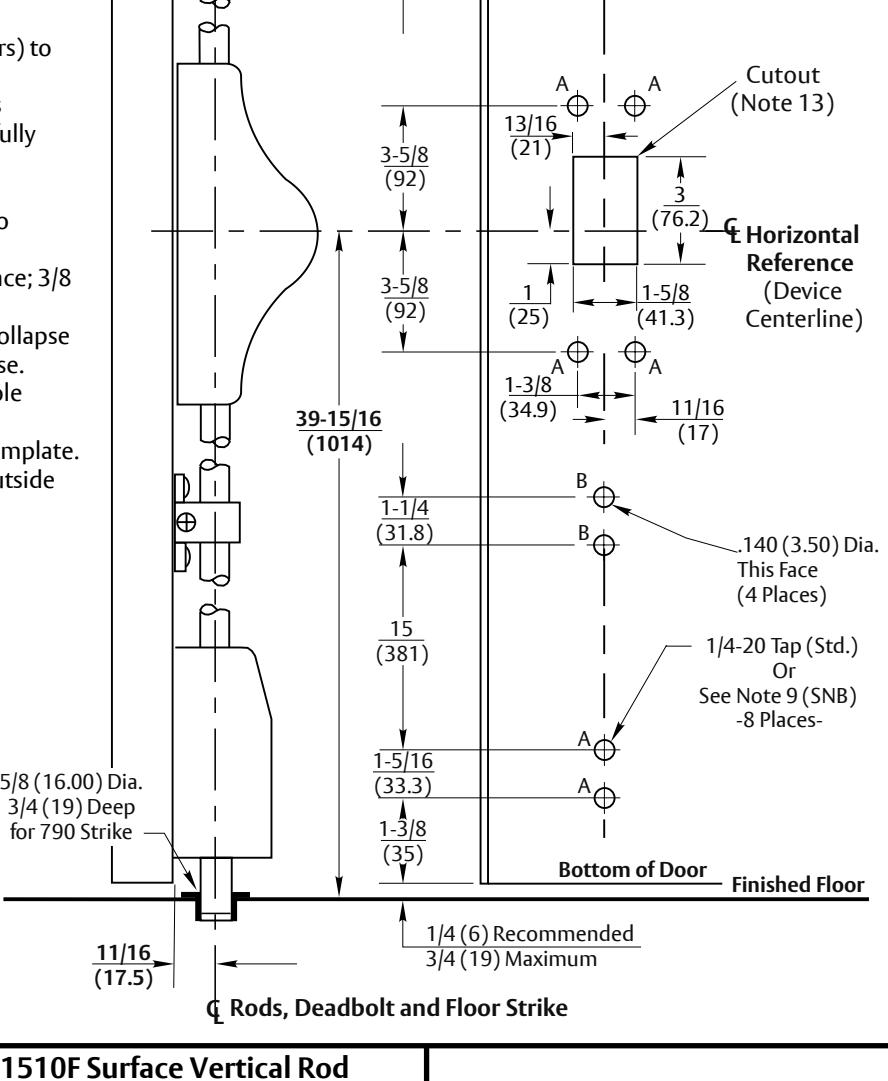

1510 & 1510F Surface Vertical Rod Exit Devices

Application for Metal Door and Frame with 790 Floor Strike

MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-557-5078.

7415-0010 DATE SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 8/99 12-23
