ASSA ABLOY ACCENTRA 1500 Series 1510 Wide Stile SVR with Bottom Pullman Latch and SNB Wood_7415-1016

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-557-5078.

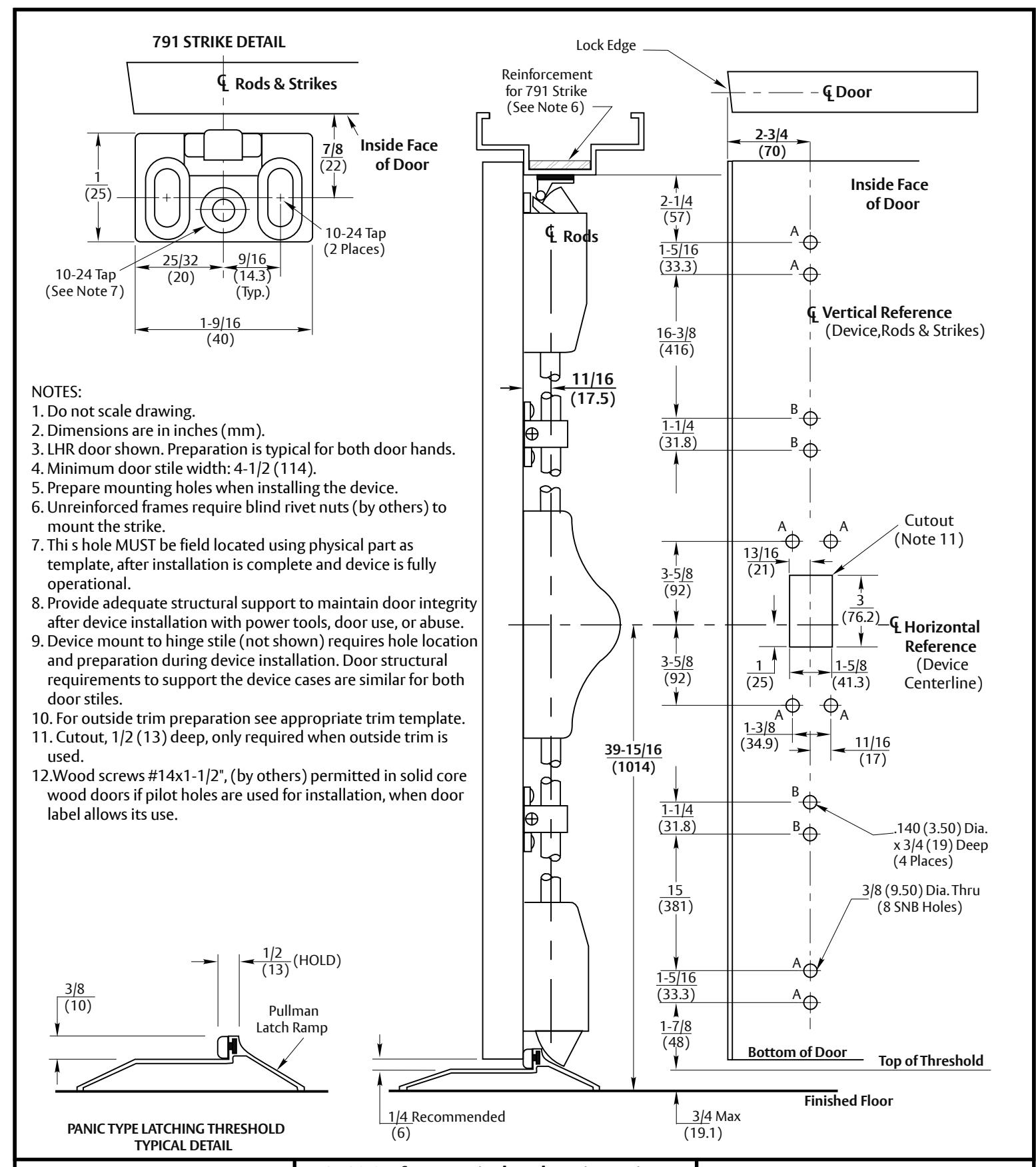

1510 Surface Vertical Rod Panic Devices with Bottom Pullman Latch Option and SNB

Application for Wood or Composite Door and H.M. Frame with Latching Threshold

7415-1016 DATE SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 8/99 12-23
