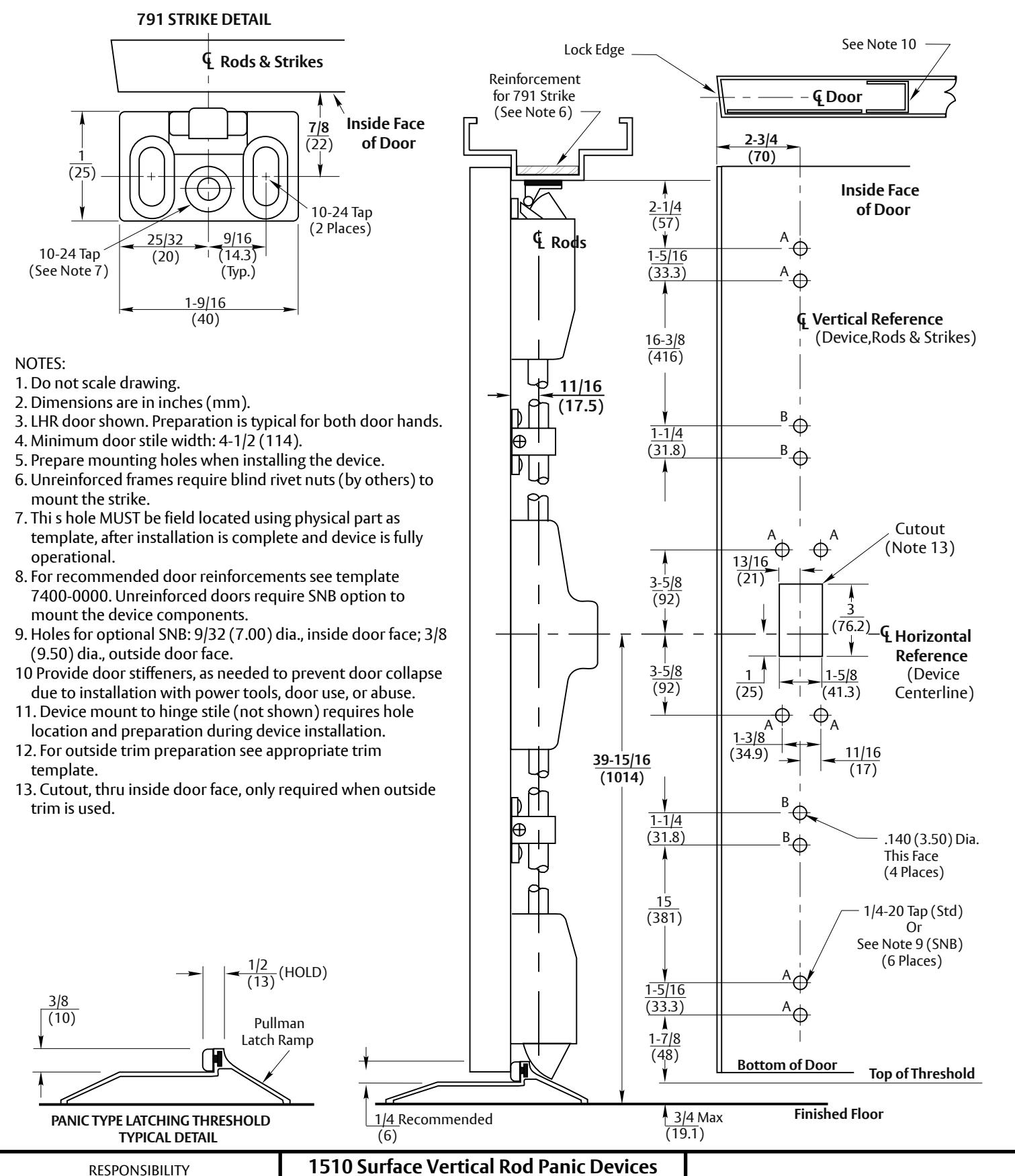

ASSA ABLOY ACCENTRA 1500 Series 1510 Wide Stile SVR with Bottom Pullman Latch Metal Door and Frame_7415-0016
Open the original PDF document
View PDF
RESPONSIBILITY
DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERTY REINFORCED DOORS AND FRAMES REGARDLESS OF TYPE MATERIAL, OR METHOD OF CONSTRUCTION.
with Bottom Pullman Latch Option
Application for Metal Door and Frame with Latching Threshold
Contact us for support at 1-855-557-5078.
ASSA ABLOY
SLIPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 7415-0016 12 - 23
