ASSA ABLOY ACCENTRA 1500 Series 1510 Wide Stile SVR 702 Floor Strike with Bottom Pullman Latch Metal_7415-0015

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE,

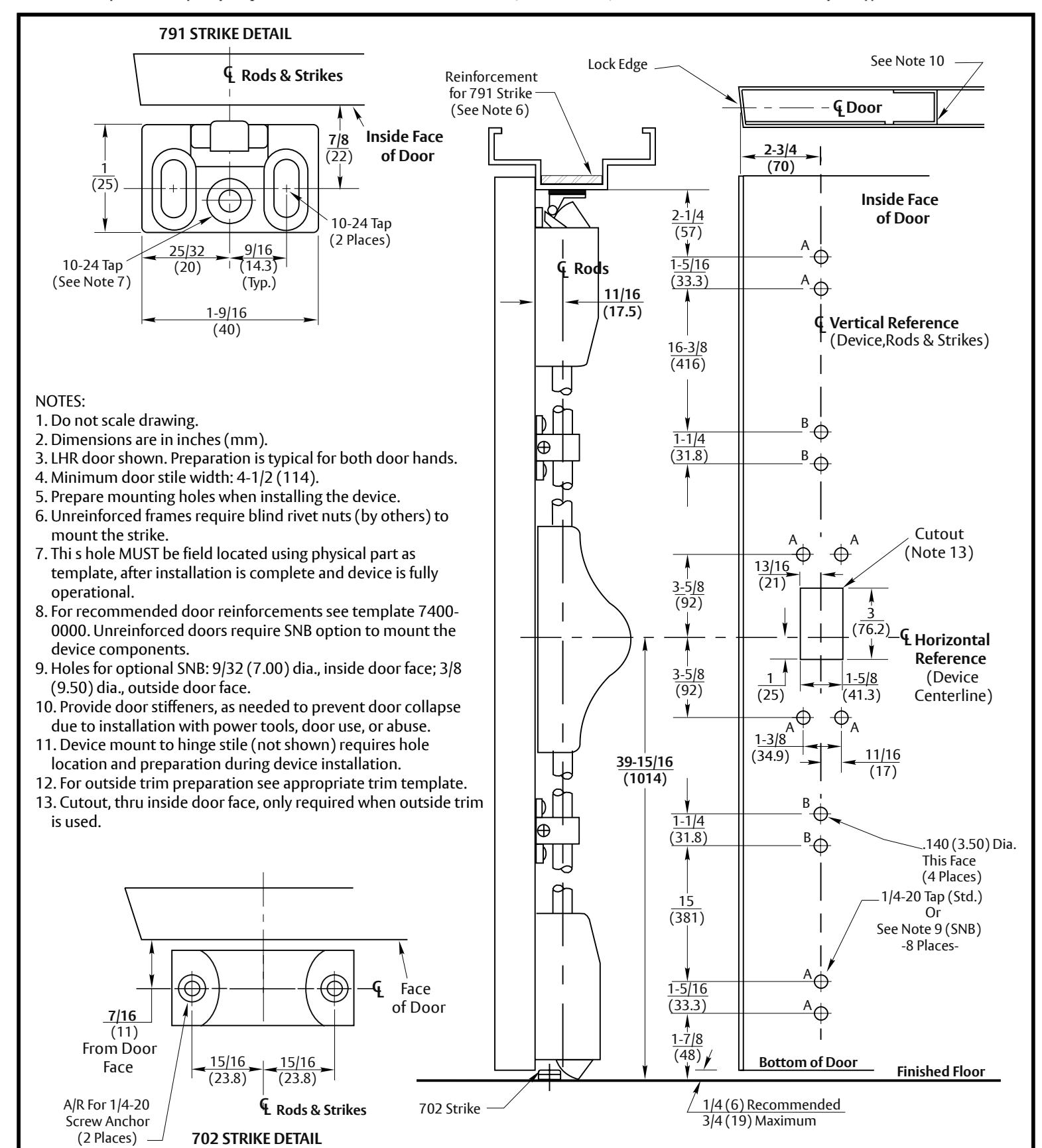

1510 Surface Vertical Rod Panic Devices with Bottom Pullman Latch Option

Application for Exit with Metal Door and Frame with 702 Floor Strike

MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-557-5078.

7415-0015 DATE SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 8/99 12-23
