ASSA ABLOY ACCENTRA 1500 Series 1500F Wide Stile Rim 799 Strike Optional SNB Wood or Composite Door_7415-1002

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-557-5078.

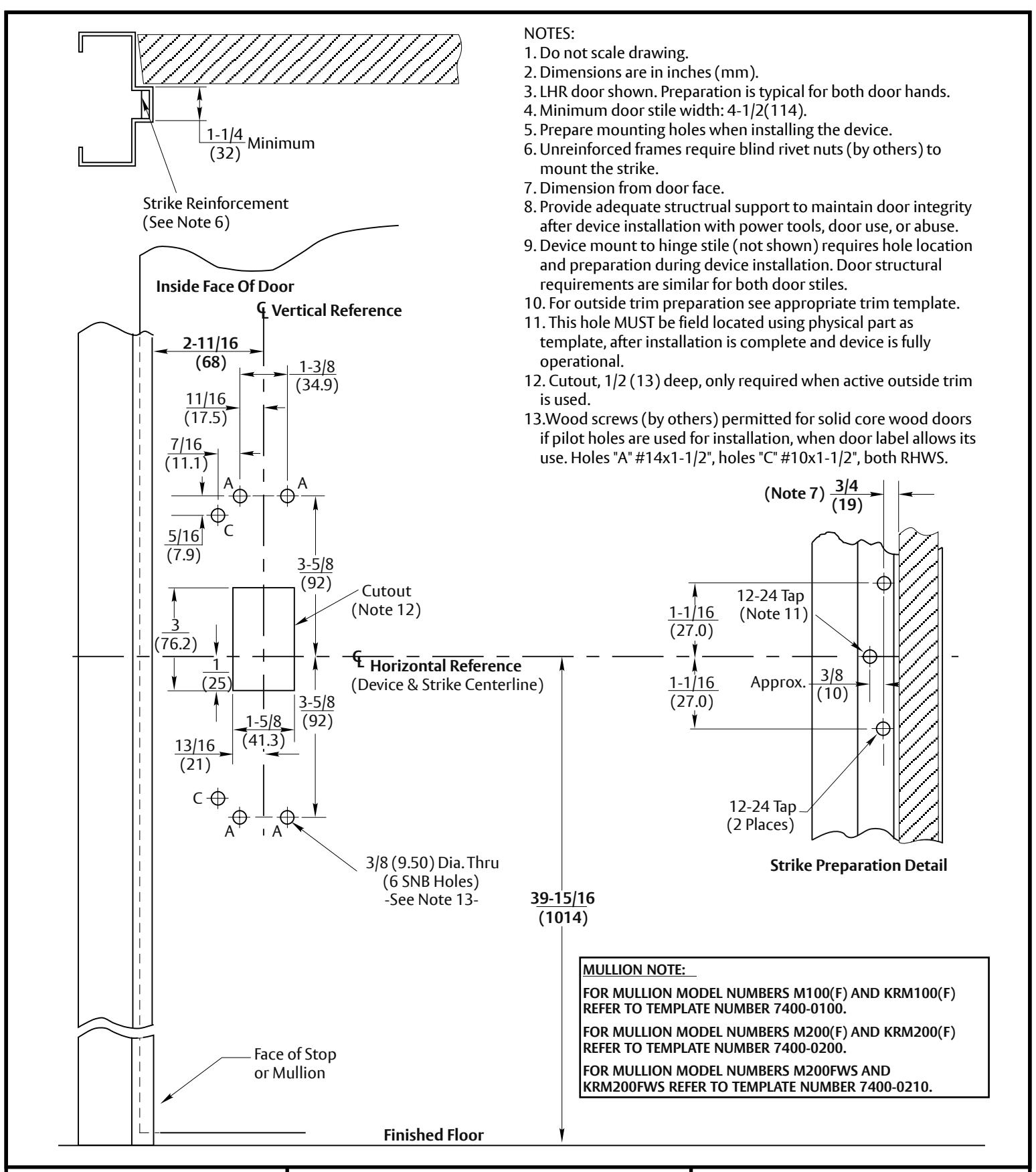

1500F Rim Fire Exit Devices with 799 Strike & Optional SNB

Application for Fire Labeled Wood or Composite Door and H.M. Frame or Mullion

7415-1002 DATE SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 02/08

12-23
