ASSA ABLOY ACCENTRA 1500 Series 1500F Wide Stile Rim 799 Strike Metal Door and Frame or Mullion_7415-0002

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-557-5078.

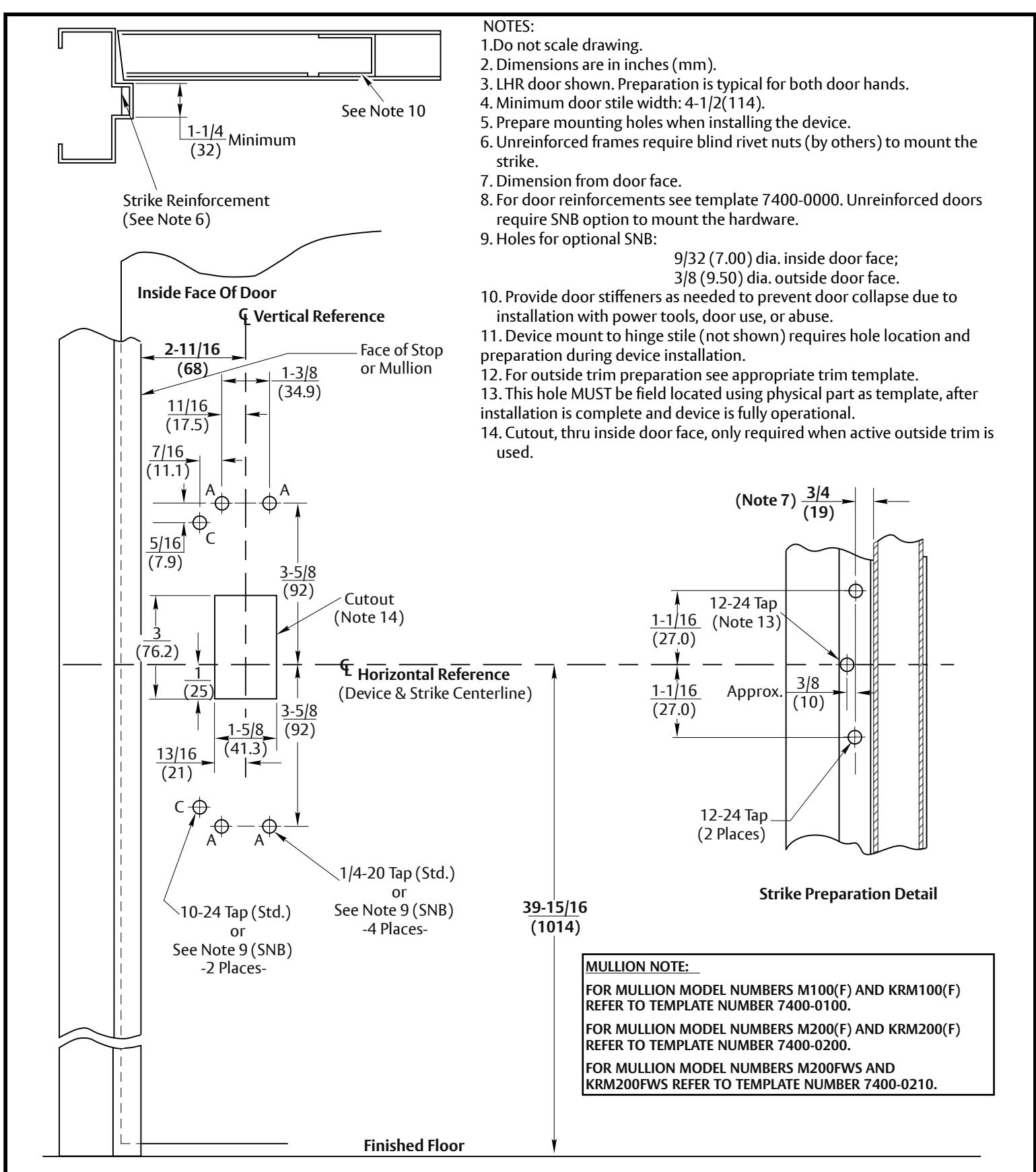

1500F Rim Fire Exit Devices with 799 Strike

Application For Fire Labeled Metal Door and Frame or Mullion

7415-0002 DATE SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 02/08 12-23
