ASSA ABLOY ACCENTRA 1500 Series 1500 Wide Stile Rim 799 Strike Optional SNB Wood or Composite Door_7415-1000

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE,

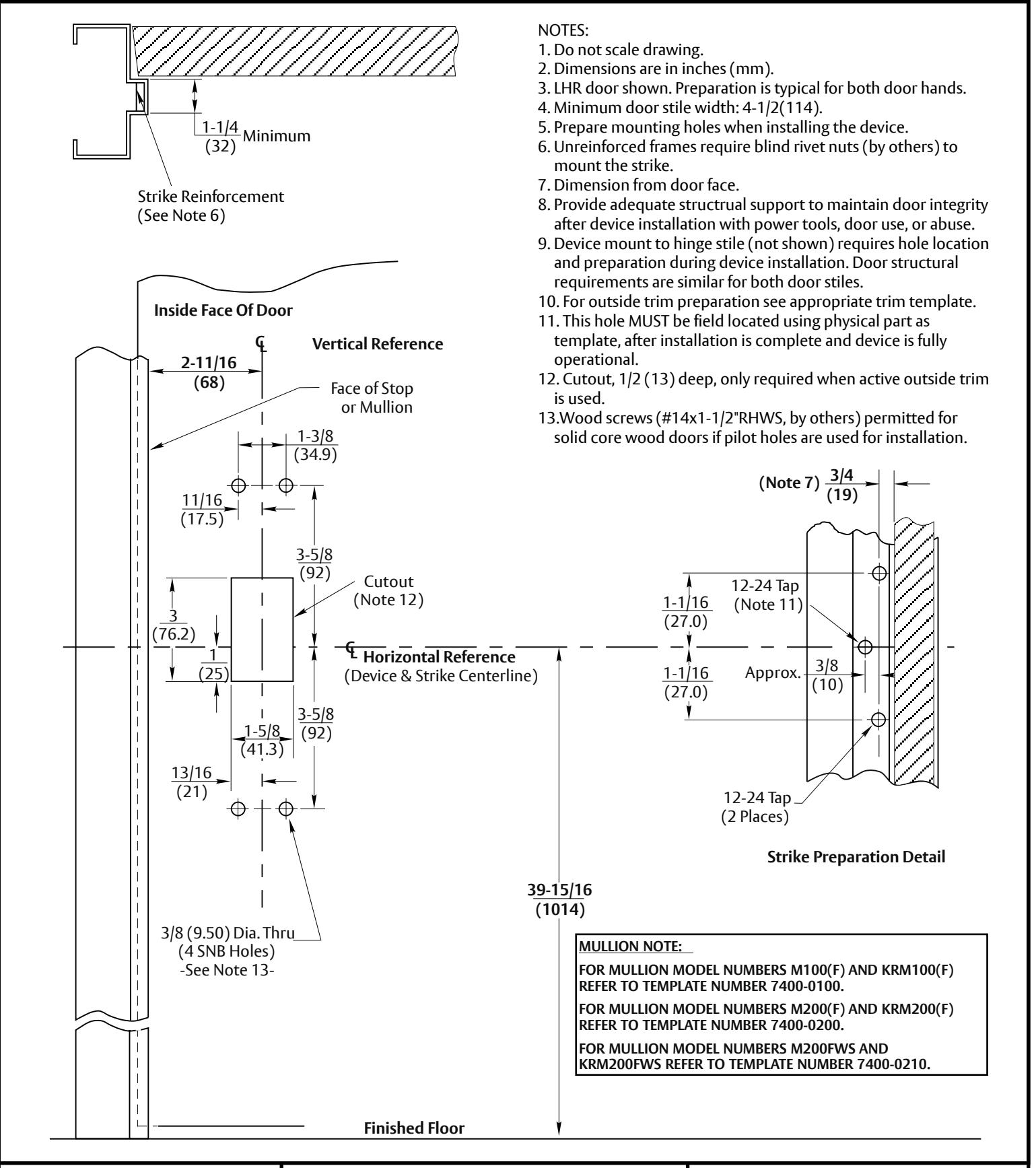

1500 Rim Panic Devices with 799 Strike & Optional SNB

Application for Wood or Composite Door and H.M. Frame or Mullion (Not for Fire Labeled Devices)

MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-557-5078.

7415-1000 DATE SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 02/08

12-23
