ASSA ABLOY ACCENTRA 1500 Series 1500 Wide Stile Rim 799 Strike Metal Door and Frame or Mullion_7415-0000

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

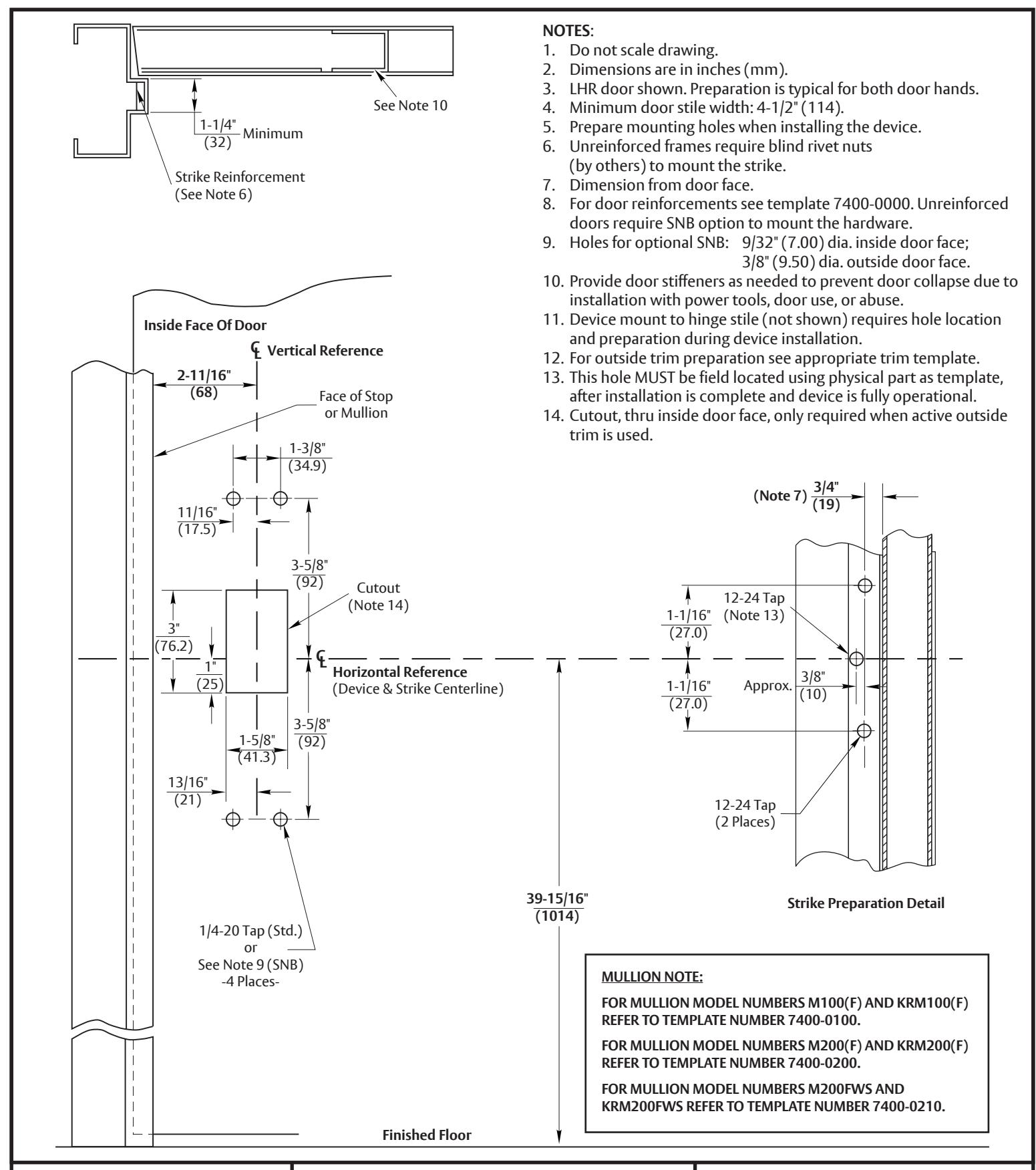

1500 Rim Panic Devices with 799 Strike

Application For Metal Door and Frame or Mullion (Not for Fire Labeled Devices)

Contact us for support at 1-800-438-1951.

SUPERSEDES DO NOT SCALE DRAWING 7415-0000 (02-08)

TEMPLATE NUMBER

7415-0000 DATE

01-24
