ASSA ABLOY ACCENTRA 121NL Outside Cylinder Trim for 2100(F), 6100ED(F), and 7100(F) Series Wide_7400-1121

NOTES:

• 1. Prep shown is for cylinders.
• 2. Do not scale drawing.
• 3. Dimensions are given in inches (mm).

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

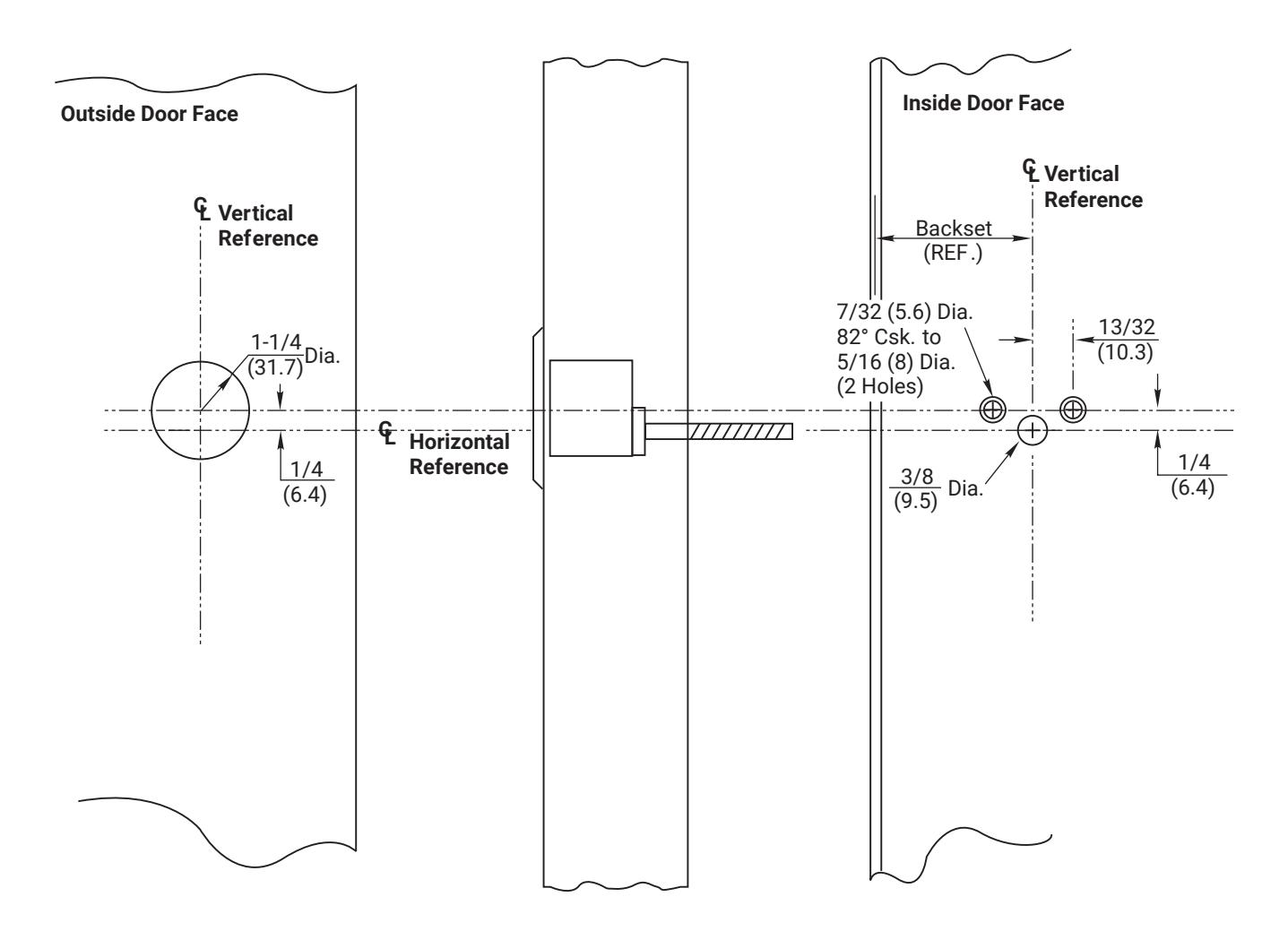

121NL Outside Cylinder Application

1-855-557-5078 Ext. 2 www.accentra-assaabloy.com for Wood Door With 7100, 2100 or 1800 Series Exit Devices
