Date: Tuesday, November 15, 2011

Subject: ASA Strike Plate for All Alarmlock CR (Non-Dead Bolt) Mortise Locks

Models: DL3500-CR / PDL3500-CR (Supplement to WI1003 USA Mortise Door Template)

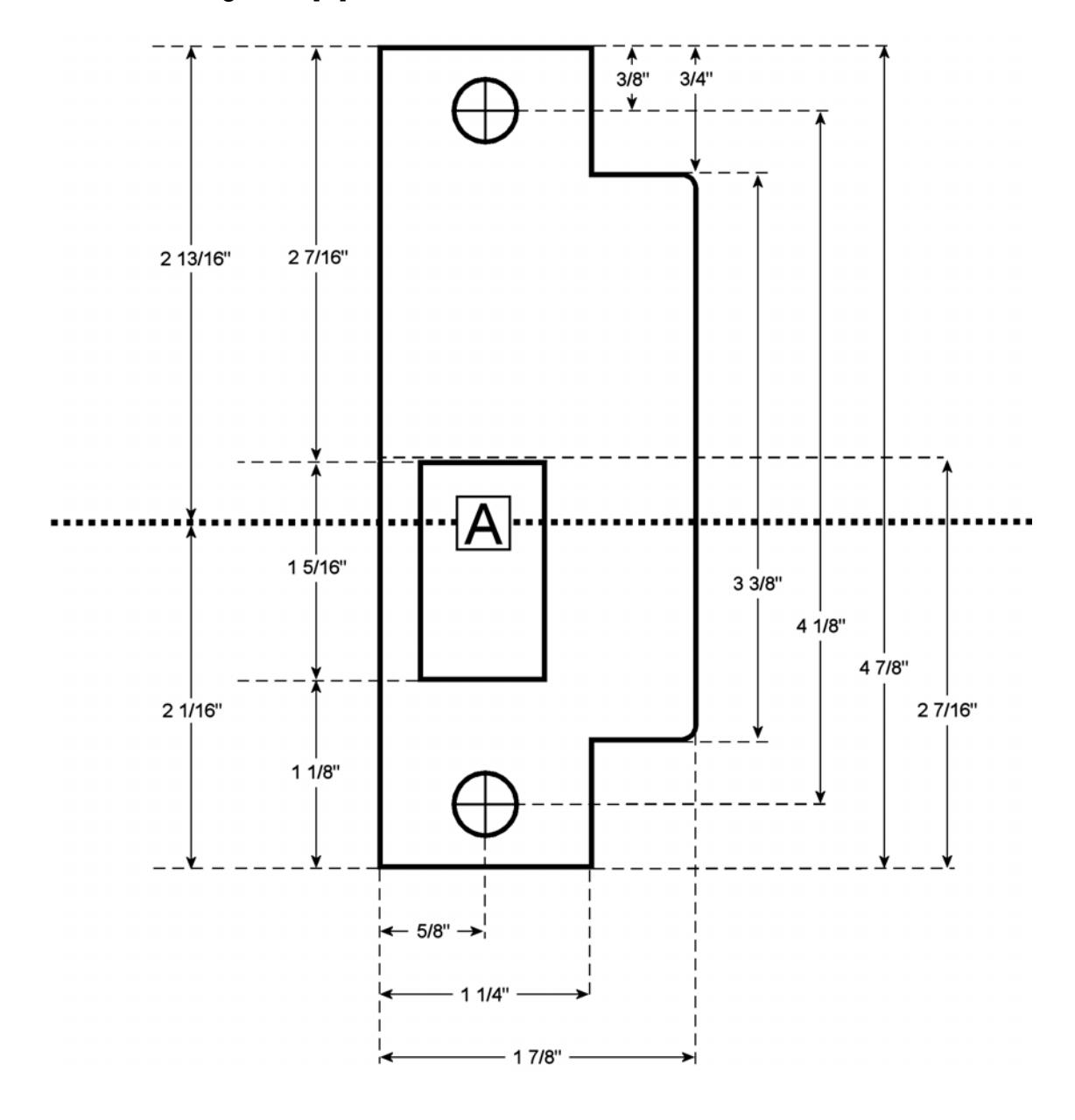

For DL/PDL3500-CR: Align line [ A ] with the centerline of the MORTISE LOCK CASE.

345 Bayview Avenue, Amityville, New York, U.S.A. 11701

For Sales and Repairs 1-800-ALA-LOCK • For Technical Service 1-800-645-9440

Fax: 631-789-3383 • info@alarmlock.com Note: Technical Service is for security professionals only

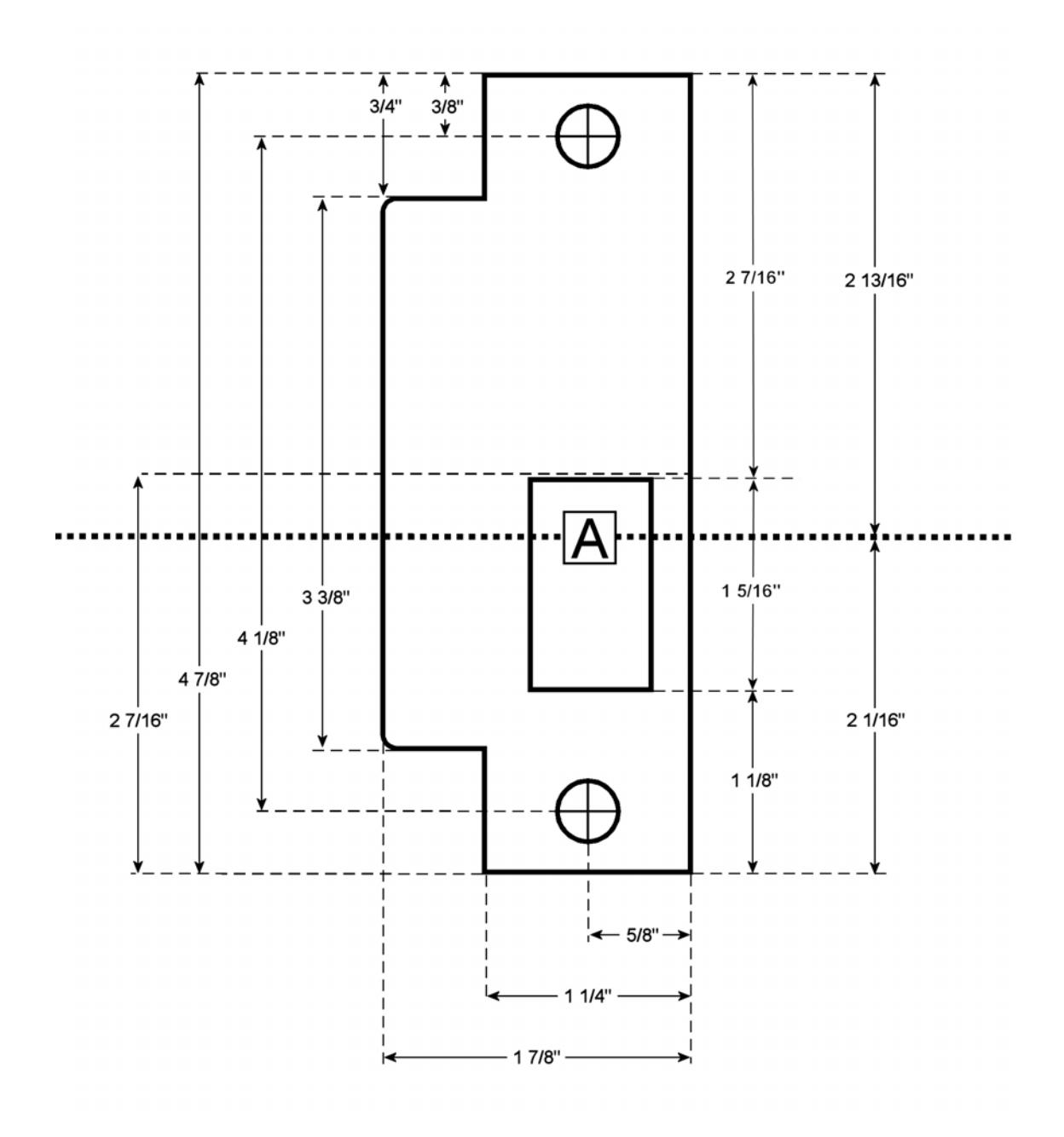

For DL/PDL3500-CR: Align line [ A ] with the centerline of the MORTISE LOCK CASE.
