ALARM LOCK Tech Support

Date: Thursday, December 29, 2011

Subject: ASA Strike Plate Template for All Alarm Lock Dead Bolt Mortise Locks

Models: DL3500-DB PDL3500-DB DL4500-DB PDL4500-DB

Supplement to the Alarm Lock USA Mortise Door Template (WI1003C).

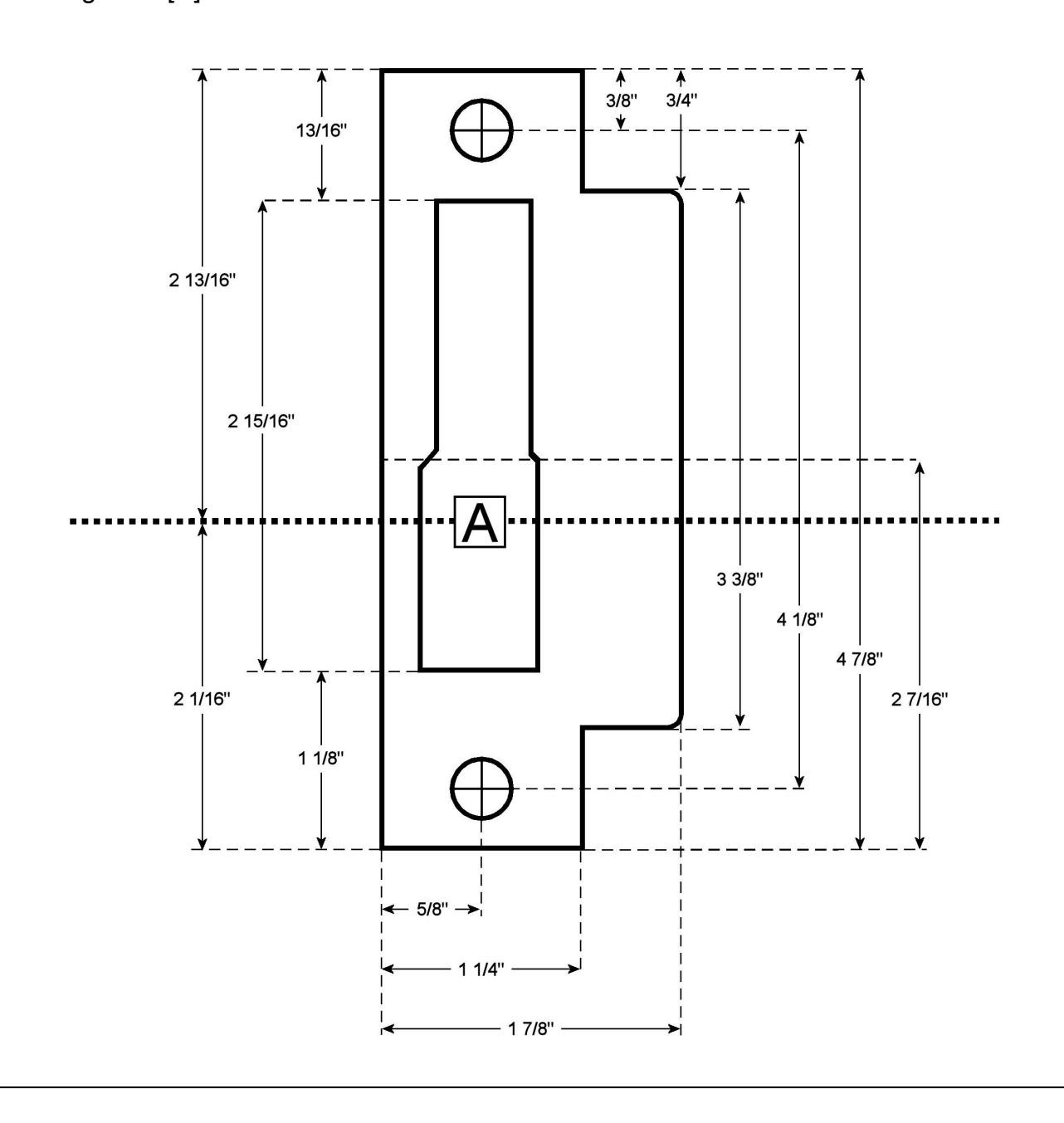

RIGHT HAND DOOR

ASA Strike Plate for Alarm Lock DL/PDL3500-DB & 4500-DB.

Instructions: Align line [ A ] with the centerline of the MORTISE LOCK CASE.

ALARM LOCK

345 Bayview Avenue, Amityville, New York, U.S.A. 11701 For Sales and Repairs 1-800-ALA-LOCK For Technical Service 1-800-645-9440

Fax: 631-789-3383 info@alarmlock.com

Note: Technical Service is for security professionals only

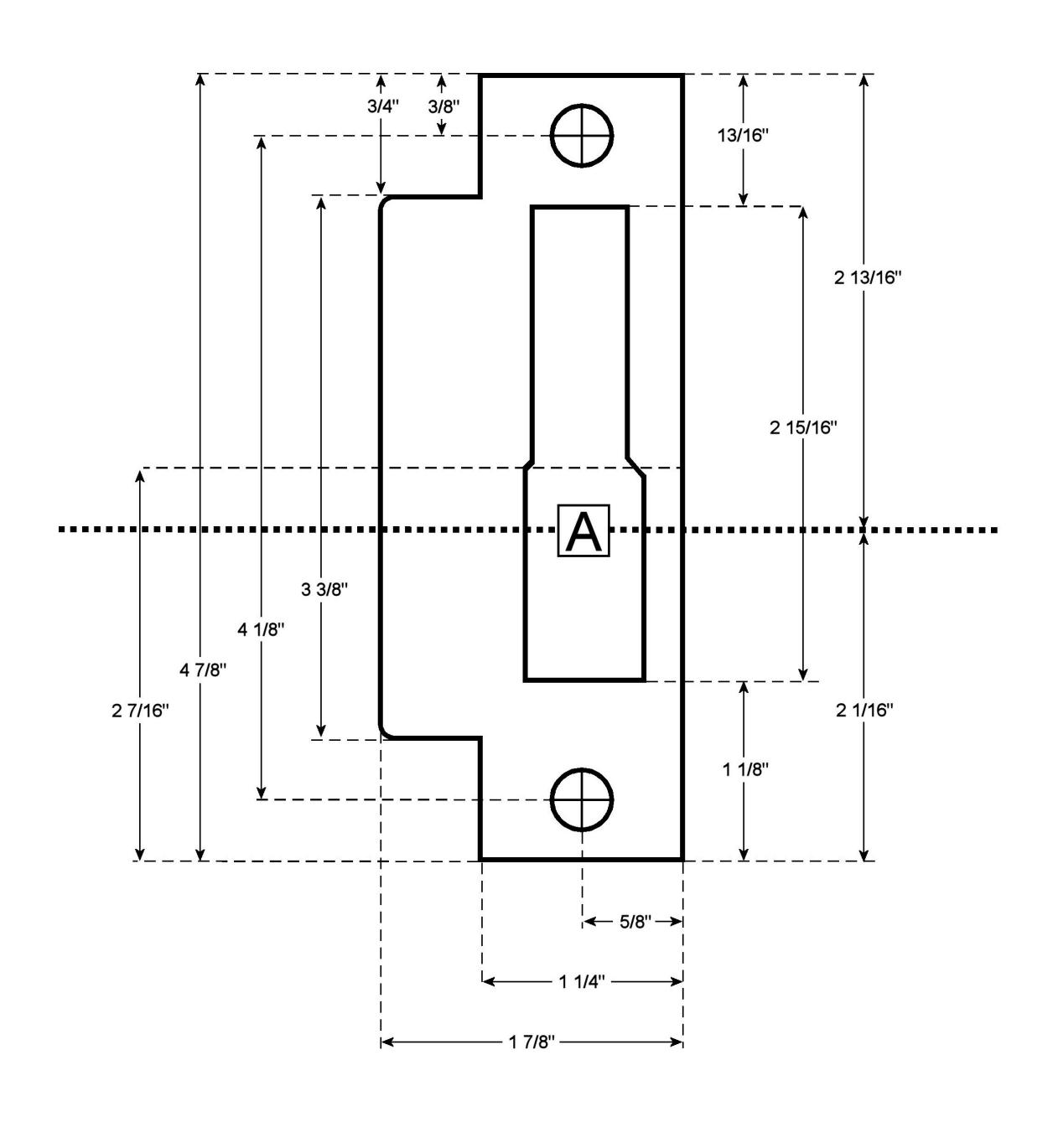

LEFT HAND DOOR

ASA Strike Plate for Alarm Lock DL/PDL3500-DB & 4500-DB. Instructions: Align line [ A ] with the centerline of the MORTISE LOCK CASE.
