AS Adjustable Studs for Stainless Steel Pin & Barrel Hinge Template

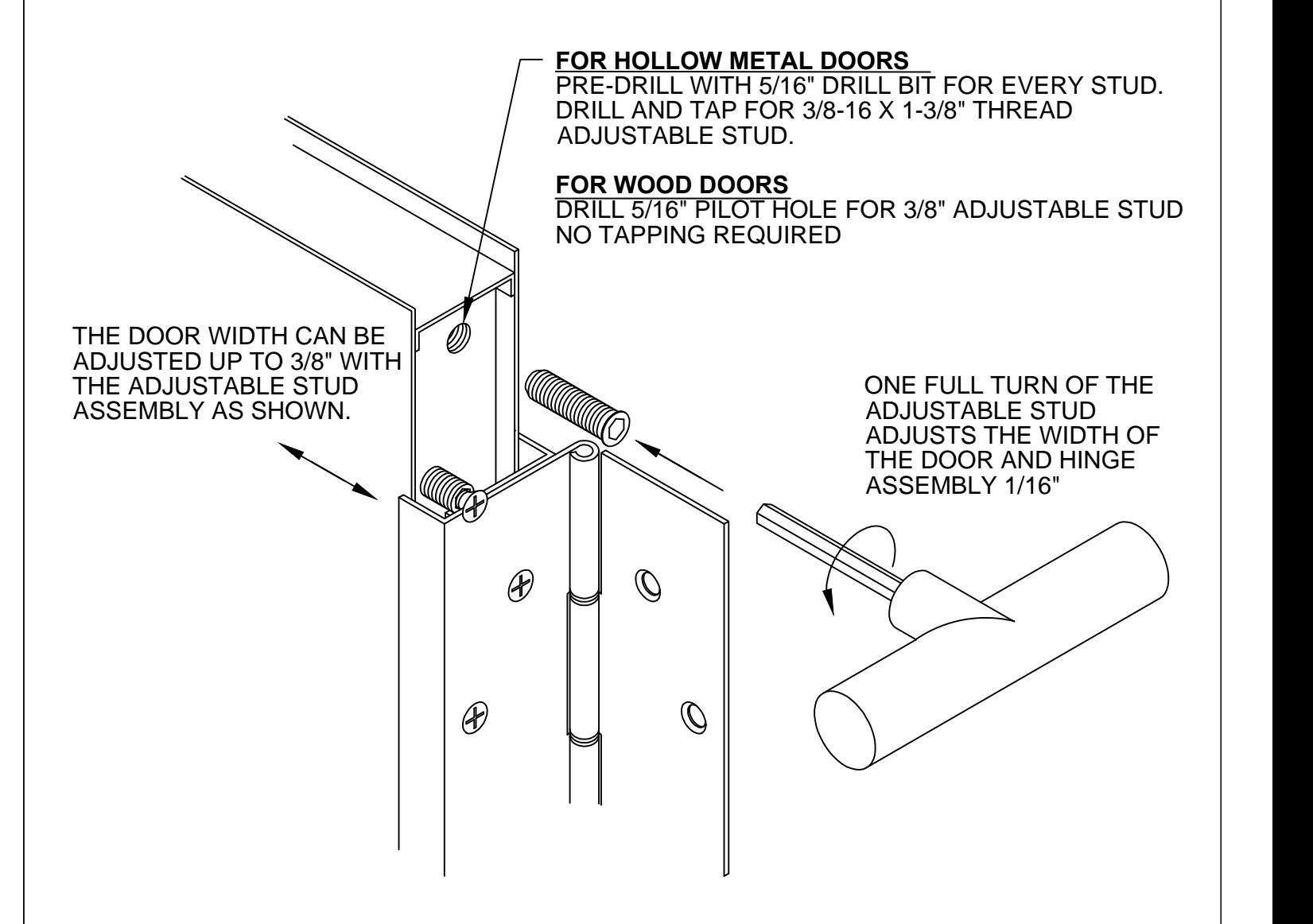

UNIVERSAL ADJUSTABLE STUD ASSEMBLY

10-32X3/4" PHILLIPS FLAT HEAD UNDERCUT STAINLESS STEEL MACHINE SCREW

ADJUSTABLE FASTENER WITH 10-32 INTERNAL THREAD AND HEX HEAD ADJUSTMENT

NOTE:

IF USING AN ADJUSTABLE HINGE GUARD WITH ADJUSTABLE STUD, USE 14 GUAGE REINFORCEMENTS ON FRAME AND 12 GAUGE REINFORCEMENTS ON DOOR.

SS HINGE ADJUSTABLE STUD ASSEMBLY-04.DWG

STAINLESS STEEL HINGE ADJUSTABLE STUD ASSEMBLY

c

REVISED 12-10-18
