ARREXKIT-ED Installation Instruction

I N S T A L L A T I O N I N S T R U C T I O N S

DESCRIPTION

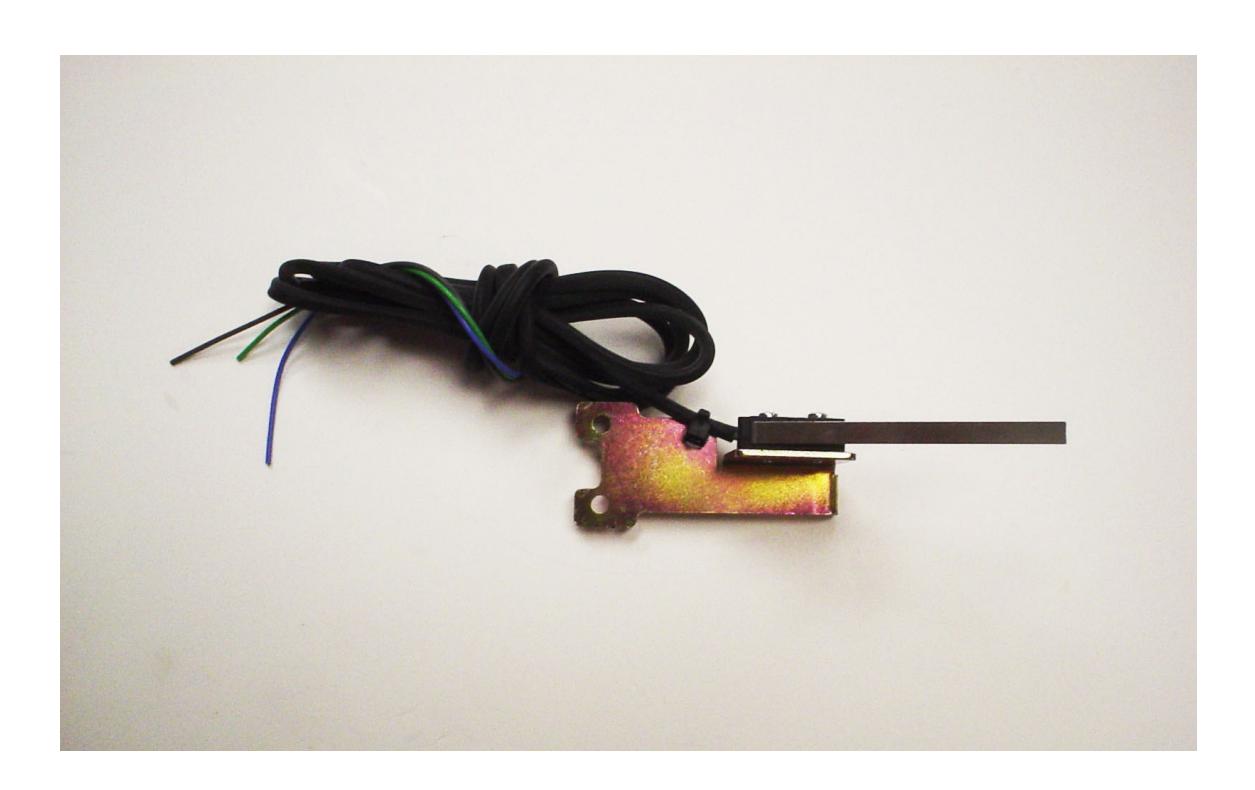

ARREXKIT-ED

Field Installable Request-to-Exit switch for Adams Rite 8400,8600,8800 exit device. This kit is an easy to install switch which sends a signal to alert the control panel that the door is about to be opened by someone exiting from within the secured area. This switch is SPDT (single pull, double throw).

SPECIFICATIONS:

Rating: 5A@ 120VAC/DC

Configuration: Green - Common (C)

Blue - Normally Open (NO) Gray - Normally Closed (NC)

I N S T A L L A T I O N I N S T R U C T I O N S

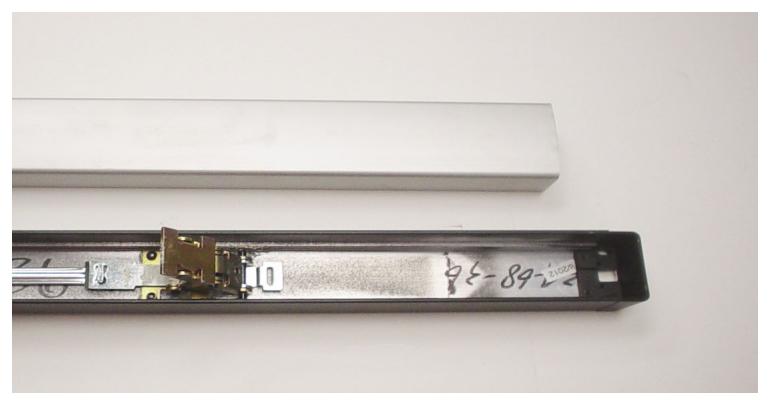

Remove push pad from the exit device. 1.

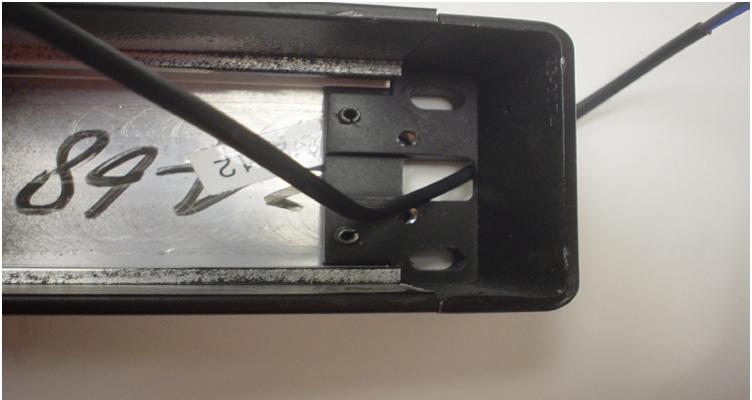

Locate exiting holes at the end of the device and fish wires through. 2.

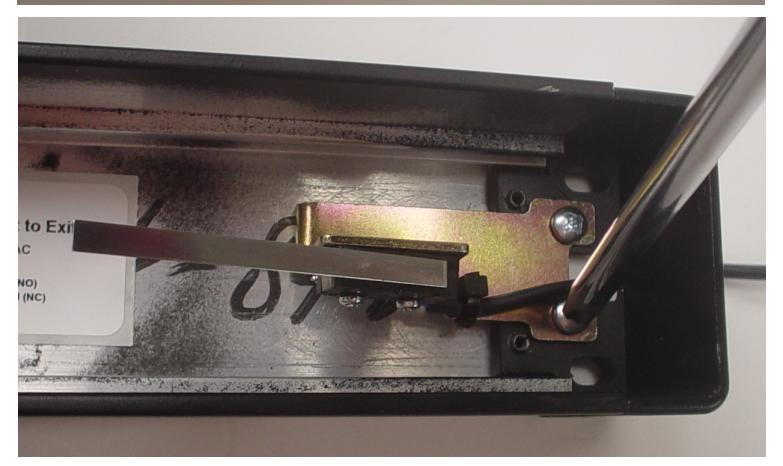

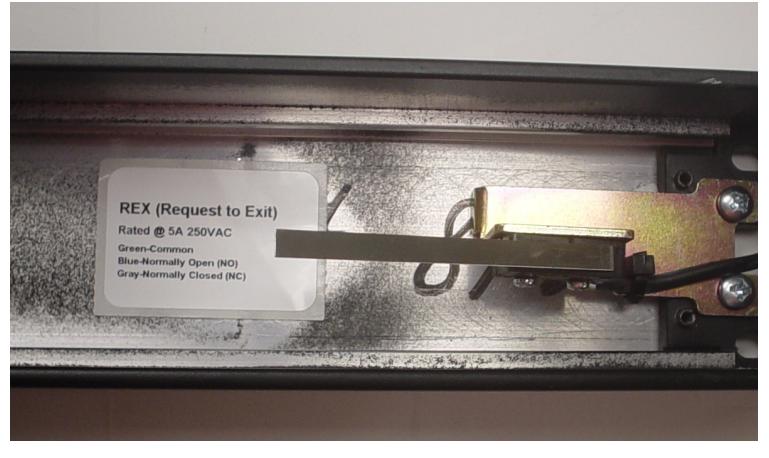

Place wire color code label and test switch for proper function. 4.
