ARLP88-KIT

• Works on all Adams Rite 8800 series
• Easy installation
• Cost-effective latch retraction
• • Available in 12V or 24V

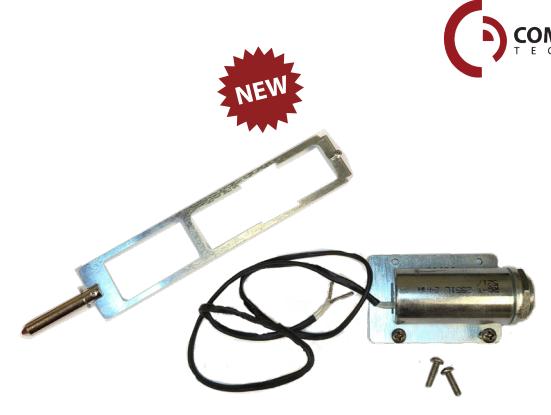

The new ARLP88-KIT is a incredibly easy field installable solenoid latch retraction kit for Adams Rite 8800 series exit devices. The only hole you'll need to drill is the raceway! It's an ideal solution for latch retraction on a stairwheel device where cost is a concern. It can be prepped at the factory for 24V or 12V solenoids.

SPECIFICATIONS

Voltage:

• Input Voltage:24VAV/DC or 12VAC/DC+/- 10%
• Solenoid Amperage 12V: 900mA
• Solenoid Amperage 24V: 450mA
• Wire gauge: Minimum 18 gauge

Wire Run:

• 300' with 18ga wire

Product Details:

• Weight: 2 Lbs

Device Cutdown Details:

• 36/42/48" - All the way to the back activting arm

Accessories: Additional Charge

• ARREXKIT-ED - Field Installable REX Kit

Features:

• Solenoid Latch Pullback Audible retraction
• High-Performance quality solenoids designed for demanding applications
• Extended duration latch pullback capability for "continuously on" conditions
• Low Current Draw
• Up to 300' wire run with 2-18ga wire Long wire runs provides installer with convenience of placing the Command locking hardware power supply in a centralized location; i.e. the same closet as the access control panel
• 5' cable with Quick Connect for solenoid to easily connect to power supply lead
• 3-year "no hassle" warranty

U.S. Customer Support 1-888-622-2377

Visit our website for more details www.CommandAccess.com

Canada Customer Support 1-855-823-3002

How to Order

Part #	Easy Order #	Description
ARLP88-KIT-24 ARLP88-KIT-12	79563 79562	Kit for Adams Rite 8800 series, EU 24V Kit for Adams Rite 8800 series, EU 12V

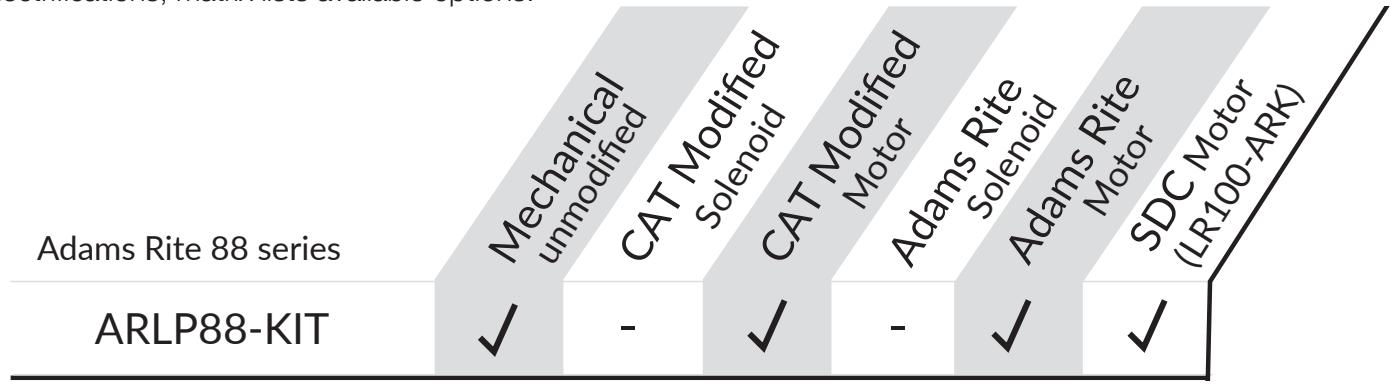

ARLP88-KIT Matrix

The ARLP88- KIT will work in new installations and as a replacement for installations with existing electrifications, matrix lists available options.
