INSTALLATION INSTRUCTIONS
APB1000A EMERGENCY ACCESS PANEL

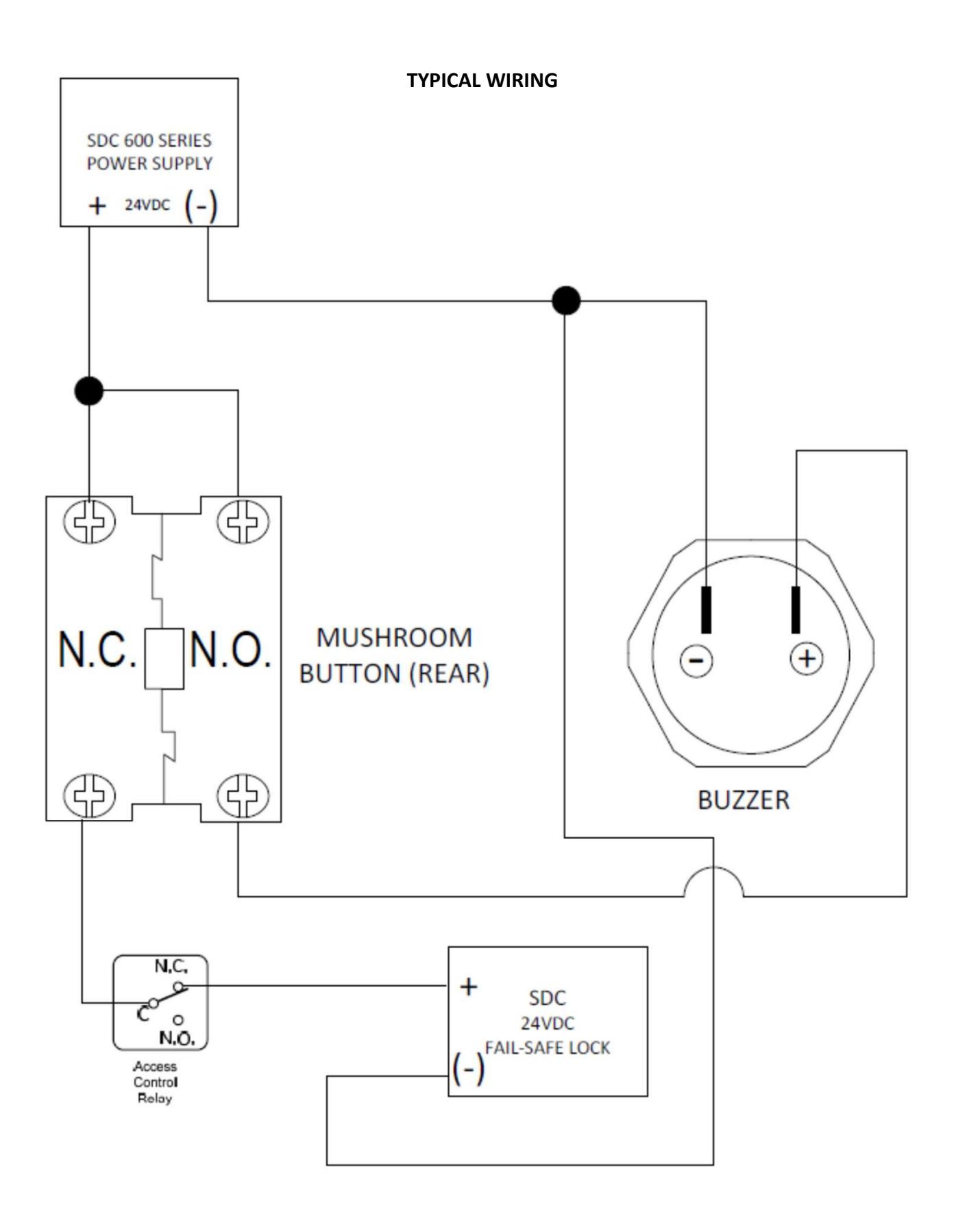

SOME INSTALLATIONS REQUIRE THAT THE WIRING BE ENCLOSED WITHIN A CONDUIT. A 4 GANG ELECTRICAL DEEP BOX MAY BE USED TO ENCLOSE THE SWITCHES
[t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011
SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM
