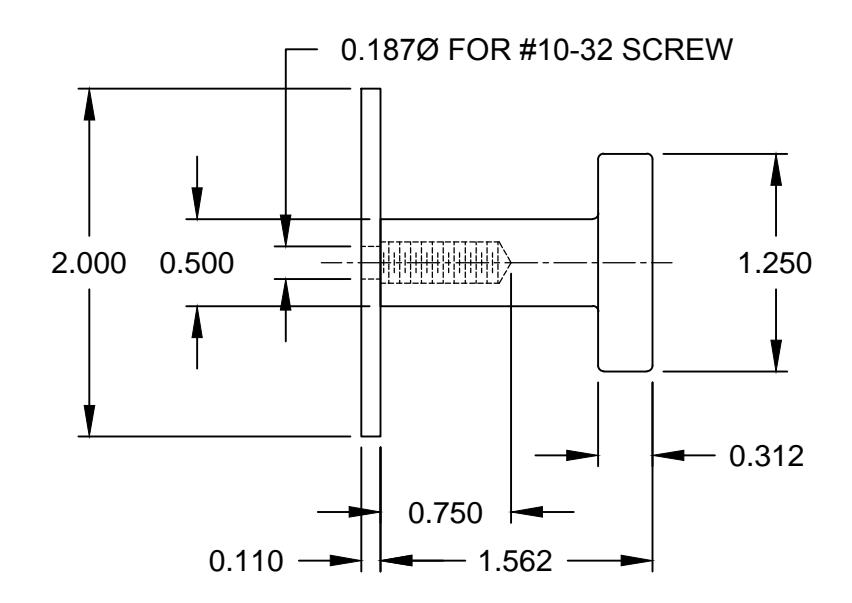

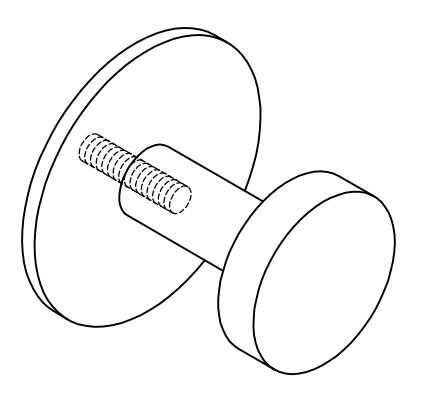

View PDFAM801 - COAT HOOK
#10-32 x 1-1/2" MACHINE SCREW
#10-32 MACHINE / #10 WOOD SCREW
NOTE:
1. ALL DIMENSIONS ARE IN INCHES.
www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)
ABH is a minority owned and operated manufacturing company.
© 2015 ABH Mfg., Inc. printed in USA
AM801 COAT HOOK-00.DWG
AM801
PAGE 1 OF 1 ISSUED 12-10-15
