ALP Paddle Positive Pull (684 Kit) Instructions

Open the original PDF document

INSTALLATION INSTRUCTIONS

FOR INSTALLATION ASSISTANCE, CALL SARGENT AT 1-800-727-5477 • www.sargentlock.com

ASSA ABLOY

Step 2) Remove both surface mount screws from pull side of door

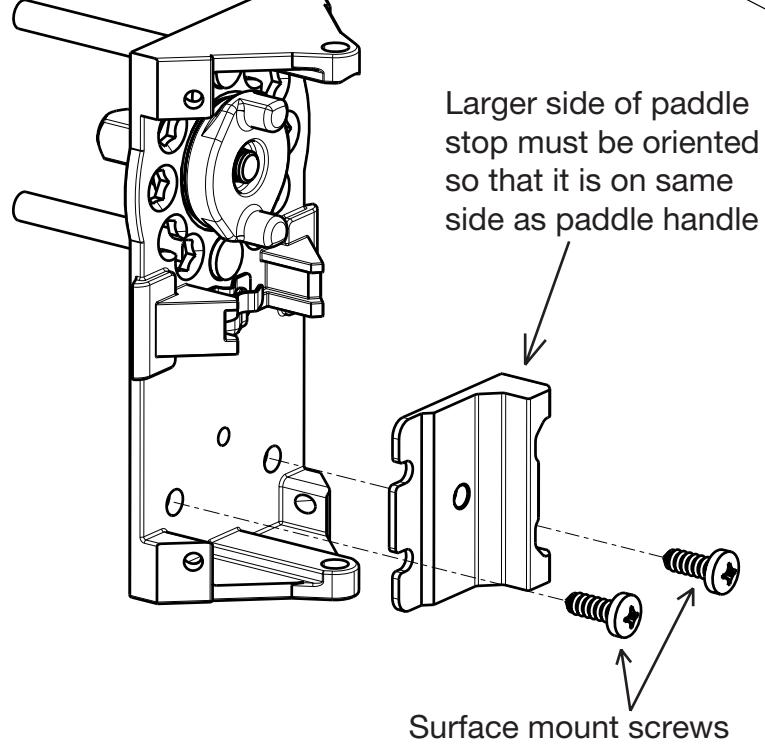

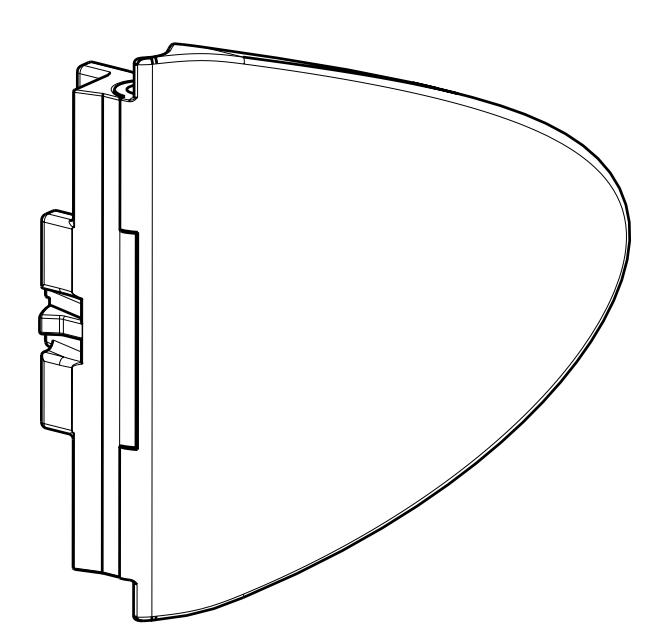

Step 3) Orient paddle stop so that larger side is underneath the paddle

Step 4) Re-install both surface mount screws

Step 5) Check to make sure paddle retracts latch when pushed but not when pulled

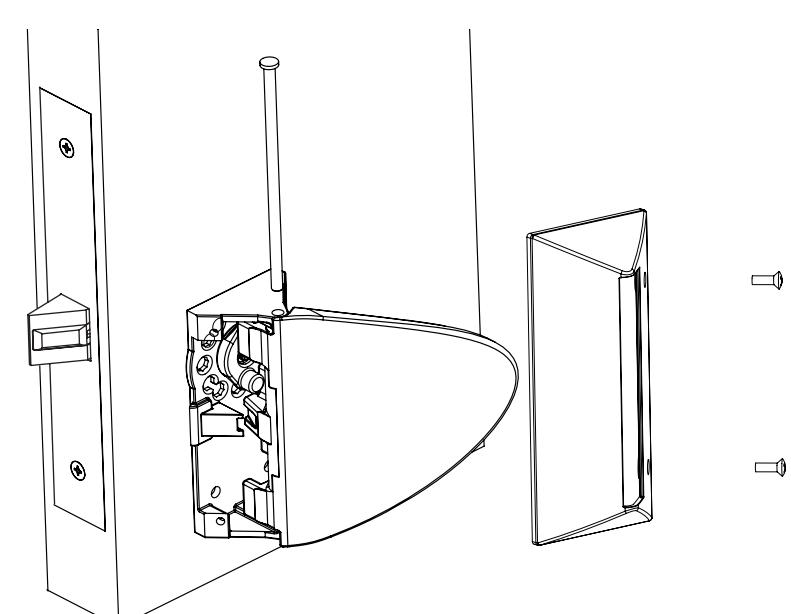

Step 6) Re-Install paddle and cover
