AD8400 Narrow Stile Concealed Vertical Rod Exit Device

• TOLERANCE ON ALL FRACTIONAL DIMENSIONS ± 1/64" BOTTOM AND TOP STRIKES MUST BE USED, SEE STRIKE TEMPLATE NO. 4649.
• SEE TEMPLATE 4212 FOR AUX CONTROL IF REQ'D
• FOR NB PREFIX, HOLES FOR BOTTOM CASE ARE NOT REQUIRED

SARGENT® Manufacturing Company 100 Sargent Drive New Haven, CT 06511

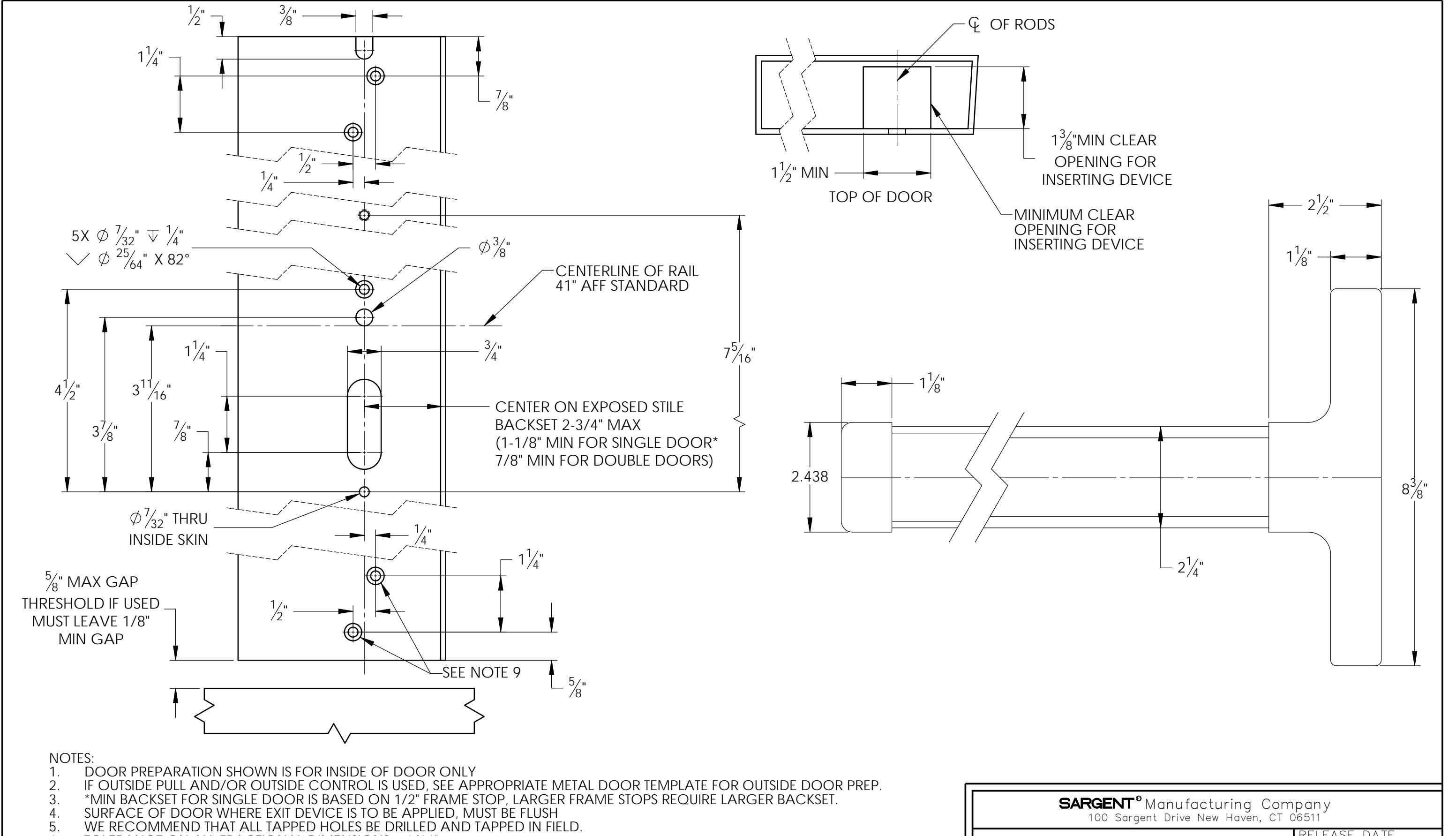

DOOR MANUFACTURERS TEMPLATE: AD8400 NARROW DESIGN CONCEALED VERTICAL ROD EXIT DEVICE FOR ALUMINUM DOORS (INSIDE ONLY)

RELEASE DATE 11 MARCH 2014 TEMPLATE NO. 4312 K
