SERIES 1340 VISUAL INDICATORS

COVERS THE FOLLOWING MODELS:

• 1340-1 ONE INDICATOR, SINGLE GANG, ROUND LED (RED OR GREEN), WALL MOUNT
• 1340-1-2 TWO INDICATORS, SINGLE GANG, ROUND LED (RED AND GREEN), WALL MOUNT

ELECTRICAL SPECIFICATIONS

- LED INDICATORS RATED AT 20mA @ 24VDC

LED INDICATORS

- MOUNTS IN A SINGLE GANG WALL MOUNT BOX 2-1/8" DEEP.

RED OR GREEN LED WIRING

- RED WIRE LEAD IS (+) POSITIVE AND BLACK WIRE LEAD IS (-) NEGATIVE.

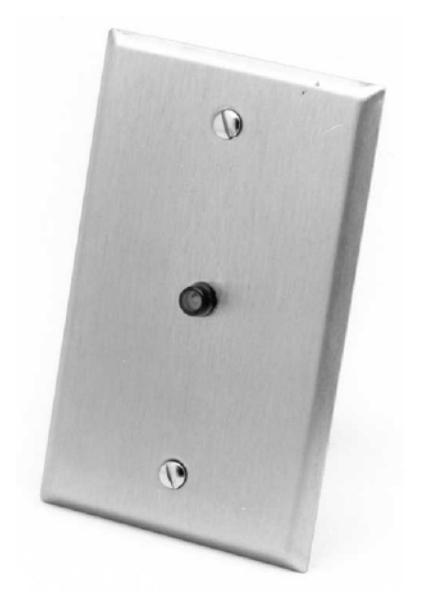

1340-1 INDICATOR SHOWN
