ASTERISK SECURITY HARDWARE INTERNATIONAL INC PS SERIES POWER SUPPLY PDCU 2020 1-4 ZONES POWER DISTRIBUTION CONTROL UNIT

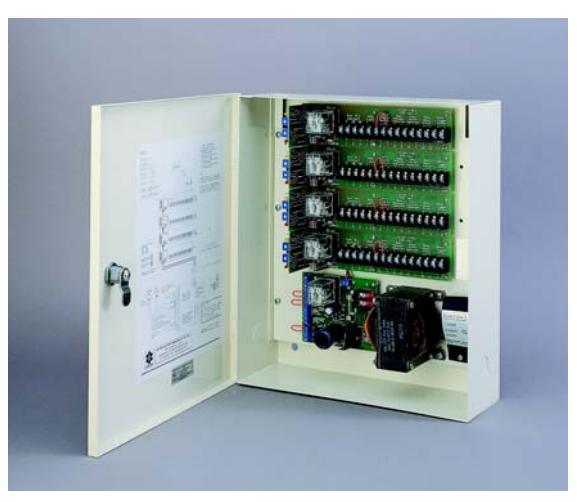

The Asterisk PS series and PDCU 2020 series is a UL and ULC listed power supply , time delay control unit design to power up to six magnetic locking devices. Its built-in ground fault release, fire alarm release and manual/automatic selective reset capability meets the intention of national and provincial building codes. Combine with the Asterisk series of magnetic locking devices, electric strikes, switched exit devices and a host of switching and annunciations options, the PDCU features unsurpassed flexibility to accommodate any access control specifications. The PS/PDCU provides 12 or 24vdc power to any electromagnetic locking devices. .

Features:-

• ∗ Design to power up to 6 (24vdc) magnets or 3 ( 12vdc) magnets.
• ∗ The power supply can be expanded up to 4 zones. Each zone can perform independently. All doors in the same zome perform identicaaly.
• ∗ Built-in fire alarm contact terminals. All locks release immediately upon fire alarm signal and loss of power.
• ∗ Manual/automatic reset system. Selective mode to reset the system after fire alarm system reset and restoration of power.
• ∗ Battery backup capability
• ∗ Auxiliary 12 and 24 vac output.
• ∗ Auxiiiary Form "C" contact ( follow) status of fire alarm contact
• ∗ AC and DC fused.
• ∗ Field expandable, 1 to 4 zones.
• ∗ Multiple PS/PDCU can be daisy-chained for a single fire alarm release and rest feature.

SPECIFICATIONS:

Power supply shall be Asterisk seriesPS or PDCU , UL and ULC listed to meet the intend of the building code. The power supply shall. Be 120vac in/ ut / 1`2 or 24vdc output. With built-in fire alarm release contact and , manual or automatic reset contact.

ULC listed—Door releasing and automatic releasing devices (electrically activated) CAN/ulc-S533-M87 STANDARD UL listed—Releasing devices (SZNT)general purpose power supply

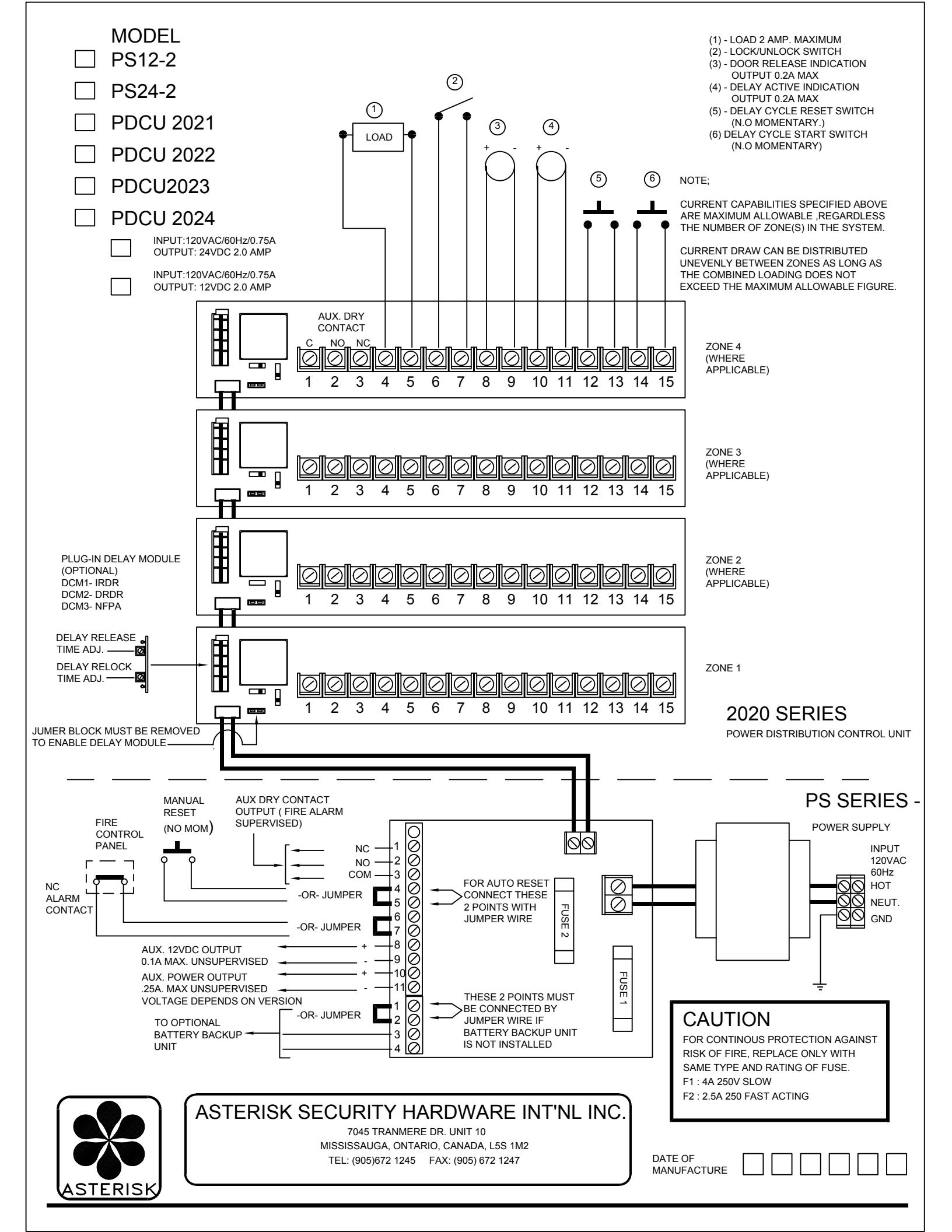

PLUG-IN DELAY MODULES :

DCM1—Instand release , delay relock (adjustable)

DCM-2—Delay release ( adjustable ) delay relock ( adjustable)

DCM-3—NFPA Delay release ( adjustable set to 15 sec) manual reset.

DCM-3N NFPA 3 seconds nuisance Delay release, amunal relock

Zone card features

• ∗ Independent zone lock/unlock switch terminal
• ∗ Auxiliary Form "C" contact
• ∗ Door release output
• ∗ Delay release output
• ∗ Zone trigger switch terminal
• ∗ Zone reset switch..

Specifications:

Height—14"

Width—12 "

Depth—4"

Input—120vac

Output :

12vdc/2amp

Or

24vdc/2amp

Contact rating

3amp@ 120vac/30v

ASTERISK SECURITY HARDWARE INTERNATIONAL INC. 7045 TRANMERE DR. UNIT 10 MISSISSAUGA, ONTARIO, CANADA L5S 1M2 TEL:(905)672 1245 FAX: (905) 672 1247
