SERIES 1310 MORTISE KEY SWITCHES, NARROW STYLE

COVERS THE FOLLOWING MODELS:

• 1310-4 KEYSWITCH NARROW STYLE, 1-3/4" FRAME MOUNT.
• 1310-4-2 KEYSWITCH NARROW STYLE WITH 2 STATUS INDICATORS (RED & GREEN). 1-3/4" FRAME MOUNT.

ELECTRICAL SPECIFICATIONS

• DPDT CONTACT CONFIGURATION
• CONTACTS RATED AT 1A @ 30VDC
• LED INDICATORS RATED AT 20mA @ 24VDC

MOMENTARY ACTION FUNCTION

- WHEN THE KEY IS TURNED TO THE CLOCKWISE POSITION, THE BLACK LEAD MAKES CONTACT WITH THE WHITE LEAD AND BREAKS CONTACT WITH THE RED LEAD; THE BROWN LEAD MAKES CONTACT WITH THE BLUE LEAD AND BREAKS CONTACT WITH THE YELLOW LEAD. WHEN THE KEY IS RELEASED, THE CONTACTS RETURN TO THEIR NORMAL POSITION.

RED WIRE - N.C. BLACK WIRE - COM. WHITE WIRE - N.O. YELLOW WIRE - N.C. BROWN WIRE - COM. BLUE WIRE - N.O.

MAINTAIN ACTION FUNCTION

- WHEN THE KEY IS TURNED TO SET THE SWITCH IN THE "MAINTAINED COUNTERCLOCKWISE" POSITION, THE CONTACTS ARE CONFIGURED, WITH RESPECT TO "COM.", AS SHOWN BELOW:

RED WIRE - CLOSED BLACK WIRE - COM. WHITE WIRE - OPEN YELLOW WIRE - CLOSED BROWN WIRE - COM. BLUE WIRE - OPEN

- WHEN THE KEY IS TURNED TO SET THE SWITCH IN THE "MAINTAINED CLOCKWISE" POSITION, THE CONTACTS ARE CONFIGURED, WITH RESPECT TO "COM.", AS SHOWN BELOW:

RED WIRE - OPEN BLACK WIRE - COM. WHITE WIRE - CLOSED YELLOW WIRE - OPEN BROWN WIRE - COM. BLUE WIRE - CLOSED

RED/GREEN LED STATUS INDICATORS

RED LED LEADS ARE IDENTIFIED WITH A RED CABLE TIE, AND THE GREEN LED LEADS ARE IDENTIFIED WITH A GREEN CABLE TIE. RED WIRE LEADS ARE (+) POSITIVE AND BLACK WIRE LEADS ARE (-) NEGATIVE.

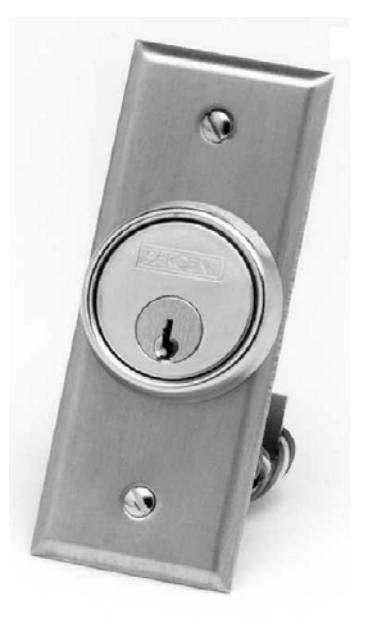

MODEL 1310-4 SHOWN
