SERIES 1310 KEY SWITCHES WITH TWO INDEPENDENT SPDT OUTPUTS

COVERS THE FOLLOWING MODELS:

• 1310-6 KEY SWITCH SINGLE GANG WALL MOUNT IN STANDARD 2-1/8" ELECTRICAL BOX.
• 1310-7 KEY SWITCH WITH ONE STATUS INDICATOR (RED OR GREEN), SINGLE GANG WALL MOUNT IN STANDARD 2-1/8" ELECTRICAL BOX.
• 1310-8 KEY SWITCH WITH TWO STATUS INDICATORS (RED & GREEN), SINGLE GANG WALL MOUNT IN STANDARD 2-1/8" ELECTRICAL BOX.

FEATURES

-TWO INDEPENDENT SPDT MOMENTARY SWTICH OUTPUT CONTACTS CONTROLLED BY KEY CYLINDER CAM: CLOCKWISE ROTATION ACTUATES FIRST SWITCH COUNTER-CLOCKWISE ROTATION ACTUATES SECOND SWITCH

ELECTRICAL SPECIFICATIONS

• SPDT MOMENTARY CONTACT CONFIGURATION
• CONTACTS RATED AT 1A @ 30VDC
• LED INDICATORS RATED AT 20mA @ 24VDC

NORMAL CONTACT CONFIGURATION WITH KEY REMOVED FROM CYLINDER

FIRST SWITCH ORANGE WIRE - N.C. GRAY WIRE - COM. GREEN WIRE - N.O. SECOND SWITCH YELLOW WIRE - N.C. BROWN WIRE - COM. BROWN WIRE - COM. BLUE WIRE - N.O.

CLOCKWISE ROTATION SWITCH FUNCTION

WHEN THE KEY IS MOMENTARILY ROTATED TO THE CLOCKWISE POSITION, THE FIRST SWITCH CONTACTS ARE CONFIGURED, WITH RESPECT TO "COM.", AS SHOWN BELOW:

ORANGE WIRE - OPEN GRAY WIRE - COM. GREEN WIRE - CLOSED

COUNTER-CLOCKWISE ROTATION SWITCH FUNCTION

WHEN THE KEY IS MOMENTARILY ROTATED TO THE COUNTER-CLOCKWISE POSITION, THE SECOND SWITCH CONTACTS ARE CONFIGURED, WITH RESPECT TO "COM.", AS SHOWN BELOW:

YELLOW WIRE - OPEN BROWN WIRE - COM. BLUE WIRE - CLOSED

RED/GREEN LED STATUS INDICATORS

RED LED LEADS ARE IDENTIFIED WITH A RED CABLE TIE, AND THE GREEN LED LEADS ARE IDENTIFIED WITH A GREEN CABLE TIE. RED WIRE LEADS ARE (+) POSITIVE AND BLACK WIRE LEADS ARE (-) NEGATIVE.

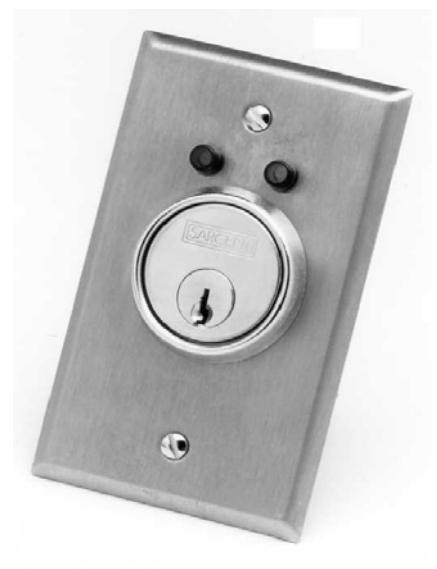

MODEL 1310-8 SHOWN

2720 CLARK AVE., ST. LOUIS, MO 63103 (800) 753-5558

II-1300-16
