EXIT DEVICE INSTALLATION INSTRUCTIONS

K-111 SWITCH KIT

DOR-O-MATIC SERIES 990 AND 1090 EXIT DEVICES SWITCH MONITORS EGRESS BY PUSHBAR ACTIVATION OF EXIT DEVICE

ELECTRICAL SPECIFICATIONS

• SPDT MONITOR SWITCH
• CONTACT RATING: 4 AMP @ 250VAC

COLOR CODE FOR WIRES

• YELLOW WIRE: COMMON
• RED WIRE: NORMALLY OPEN
• GRAY WIRE: NORMALLY CLOSED

INSTALLATION INSTRUCTIONS

STEP 1: REMOVE HINGE STYLE CASE.

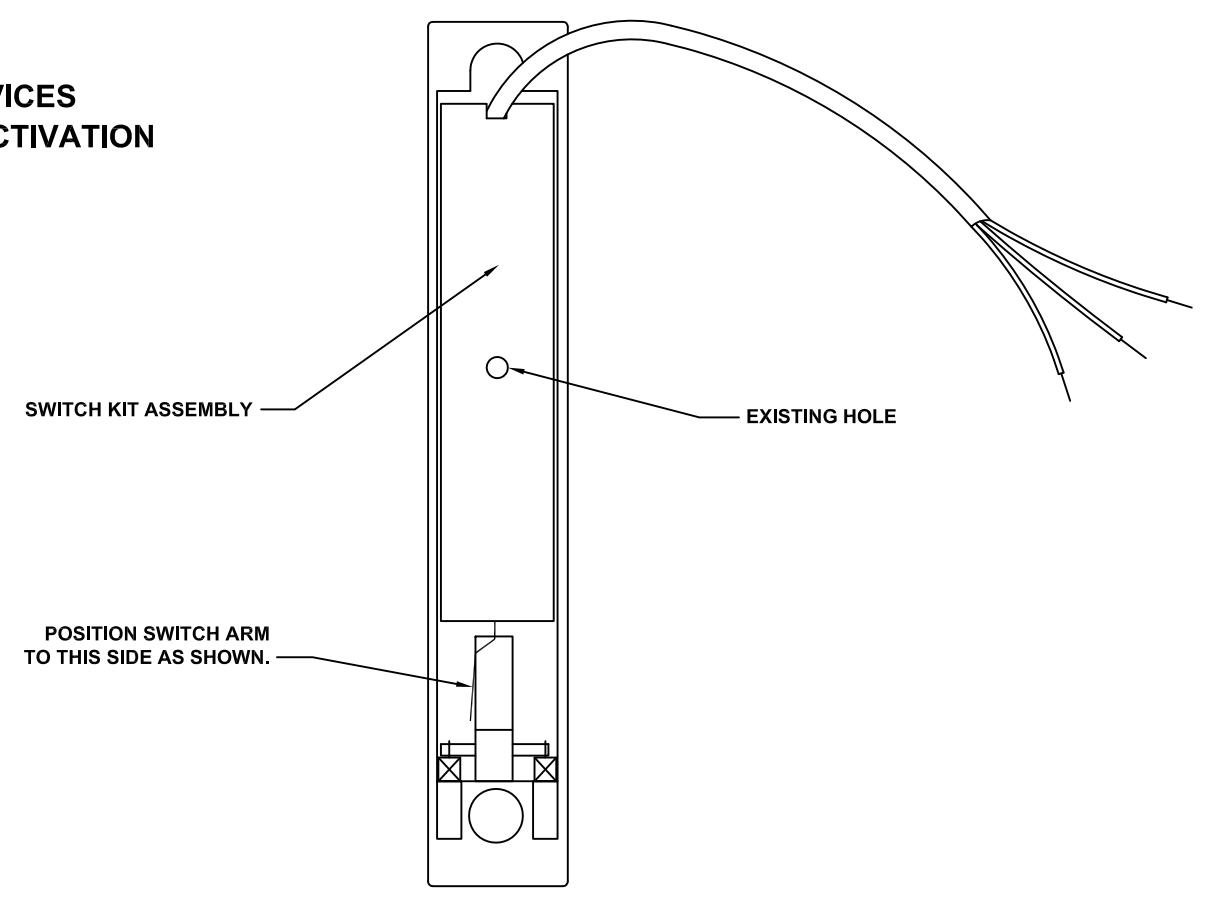

STEP 2: PLACE SWITCH ASSEMBLY INTO DEVICE AS SHOWN. ASSEMBLY FITS OVER TOP OF EXISTING HOLE. SET SCREW OF SWITCH KIT BRACKET FITS INSIDE HOLE.

STEP 3: MAKE SURE SWITCH ARM IS PLACED ON CORRECT SIDE OF ACTIVE MECHANISM AS SHOWN.

STEP 4: SWITCH KIT IS CAPTURED BETWEEN DOOR SURFACE AND HINGE STYLE MAKE SURE BRACKET IS FLUSH WITH MOUNTING SURFACE.

STEP 5: CHECK FOR PROPER SWITCH ACTIVATION WHEN PUSHBAR IS FULLY DEPRESSED, REFER TO COLOR CODE CHART FOR PROPER WIRING FOR APPLICATION.

STEP 6: MAKE SURE COLOR CODE FOR WIRES CHART IS USED FOR PROPER HOOK-UP OF SWITCH CONTACTS.
