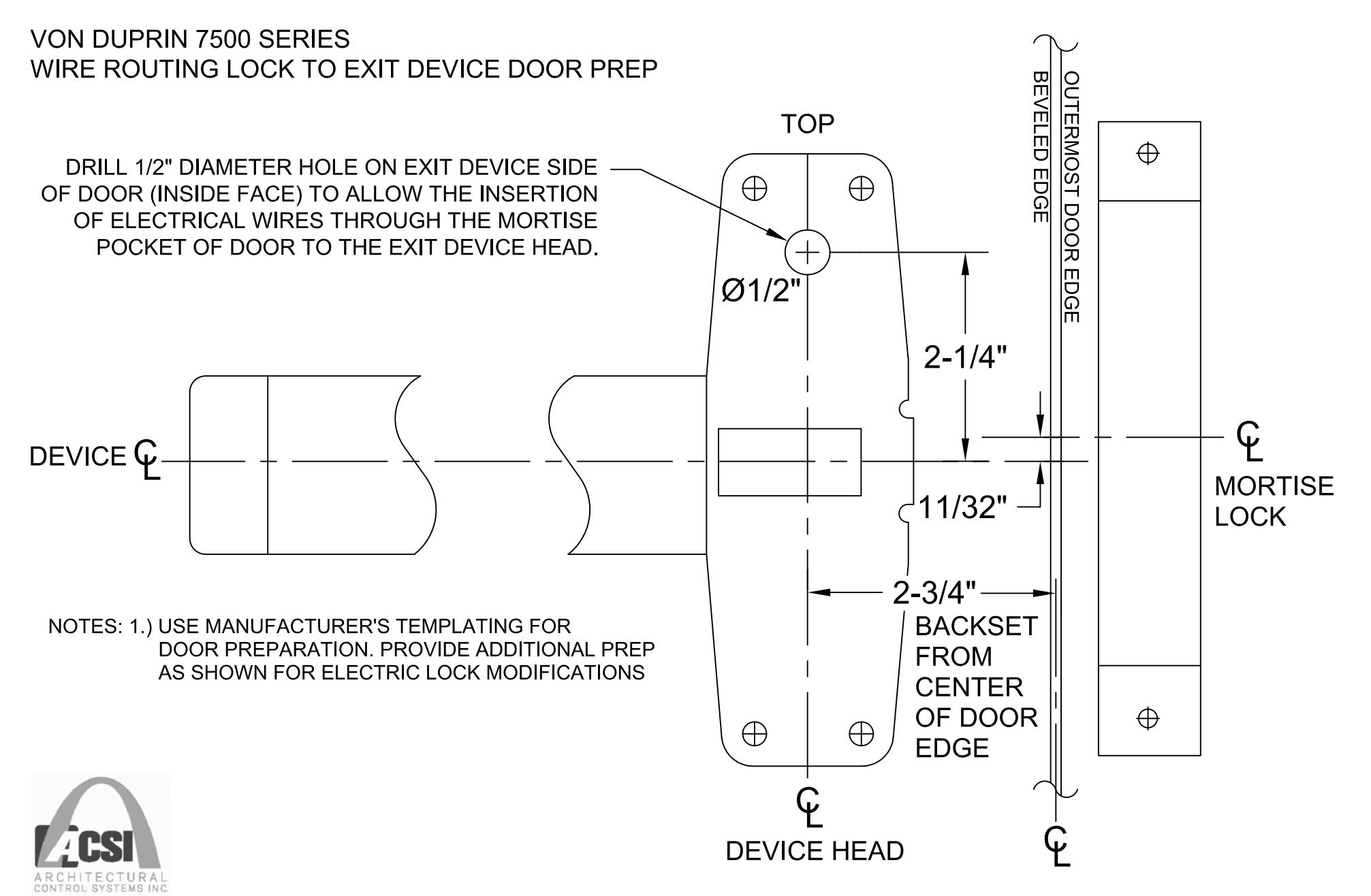

ELECTRIC TRIM CONTROL TEMPLATE

MODEL ME1510C AND ME1520C

2720 CLARK AVE., ST. LOUIS, MO 63103 (800) 753-5558

REV. 11/2017

VON DUPRIN 7500 SERIES ELECTRIC LOCK ME1510/1520C FUNCTION CHANGE INSTRUCTIONS

TO CHANGE THE LOCKING FUNCTION FOLLOW THE INSTRUCTIONS BELOW CAREFULLY.

ME1510C FAIL SAFE FUNCTION (POWER LOCK)

• REMOVE THE 4 COVER SCREWS AND THE COVER.

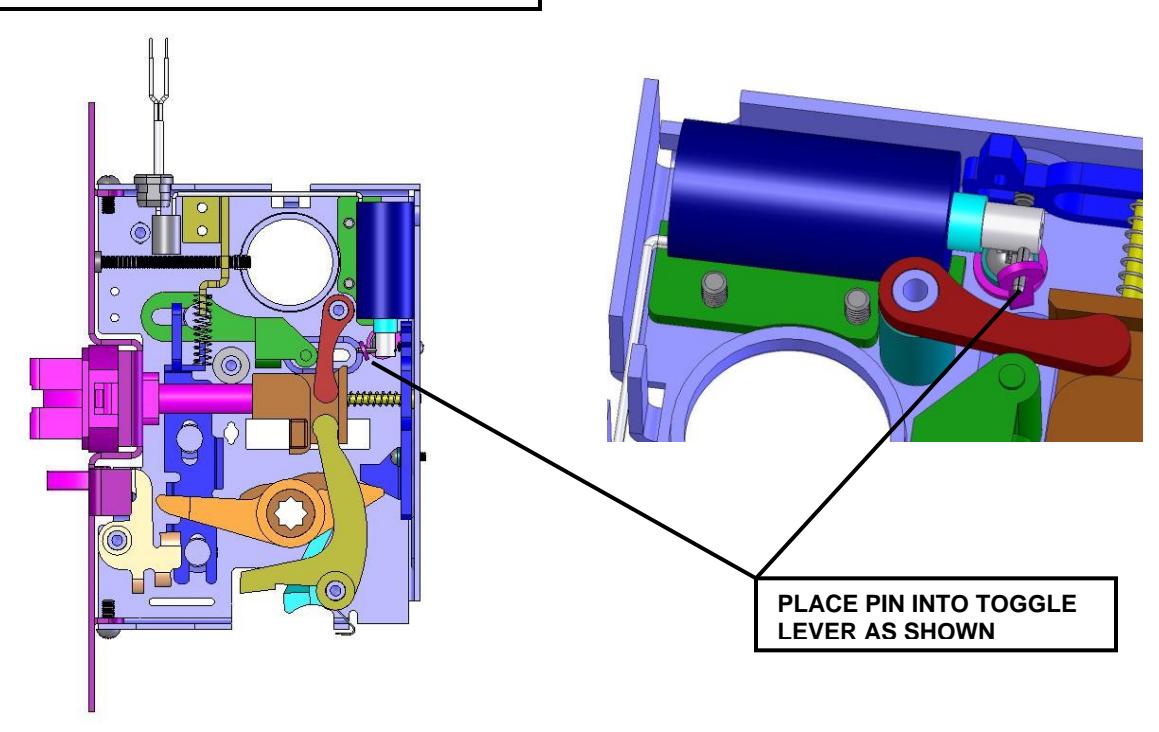

• LIFT SOLENOID AND PLUNGER UP ENOUGH TO ROTATE THE PIN INTO THE HOLE OF THE TOGGLE LEVER AS SHOWN ABOVE.
• MAKE SURE THAT SOLENOID IS POSITIONED BACK INTO HOLDER.
• REPLACE COVER AND SCREWS.

ME1520C FAIL SECURE FUNCTION (POWER UNLOCK)

SHOWN

• REMOVE THE 4 COVER SCREWS AND THE COVER.

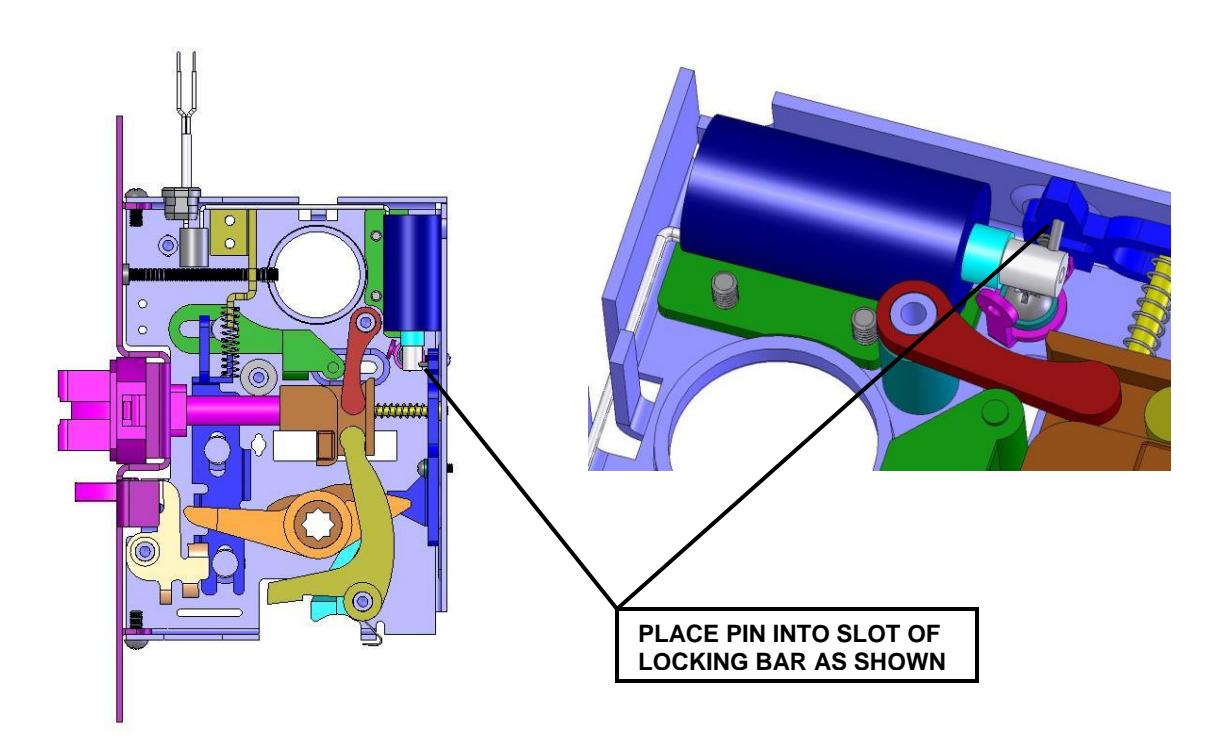

• LIFT SOLENOID AND PLUNGER UP ENOUGH TO ROTATE THE PIN INTO THE SLOT OF THE LOCKING BAR AS SHOWN ABOVE.
• MAKE SURE THAT SOLENOID IS POSITIONED BACK INTO HOLDER.
• REPLACE COVER AND SCREWS.

ELECTRICAL SPECIFICATION

NOTE: ALL SOLENOIDS ARE CONTINUOUS DUTY TYPE. KEEP OPERATING VOLTAGE AT +/- 10% OF RATED VOLTAGE.

VOLTAGE	AMP
12 VAC/DC	.612 A
12 VDC	.612 A
24 VAC/DC	.330 A
24 VDC	.330 A
