DPS - DOOR POSITION SENSOR
Description:
Monitors the door position.

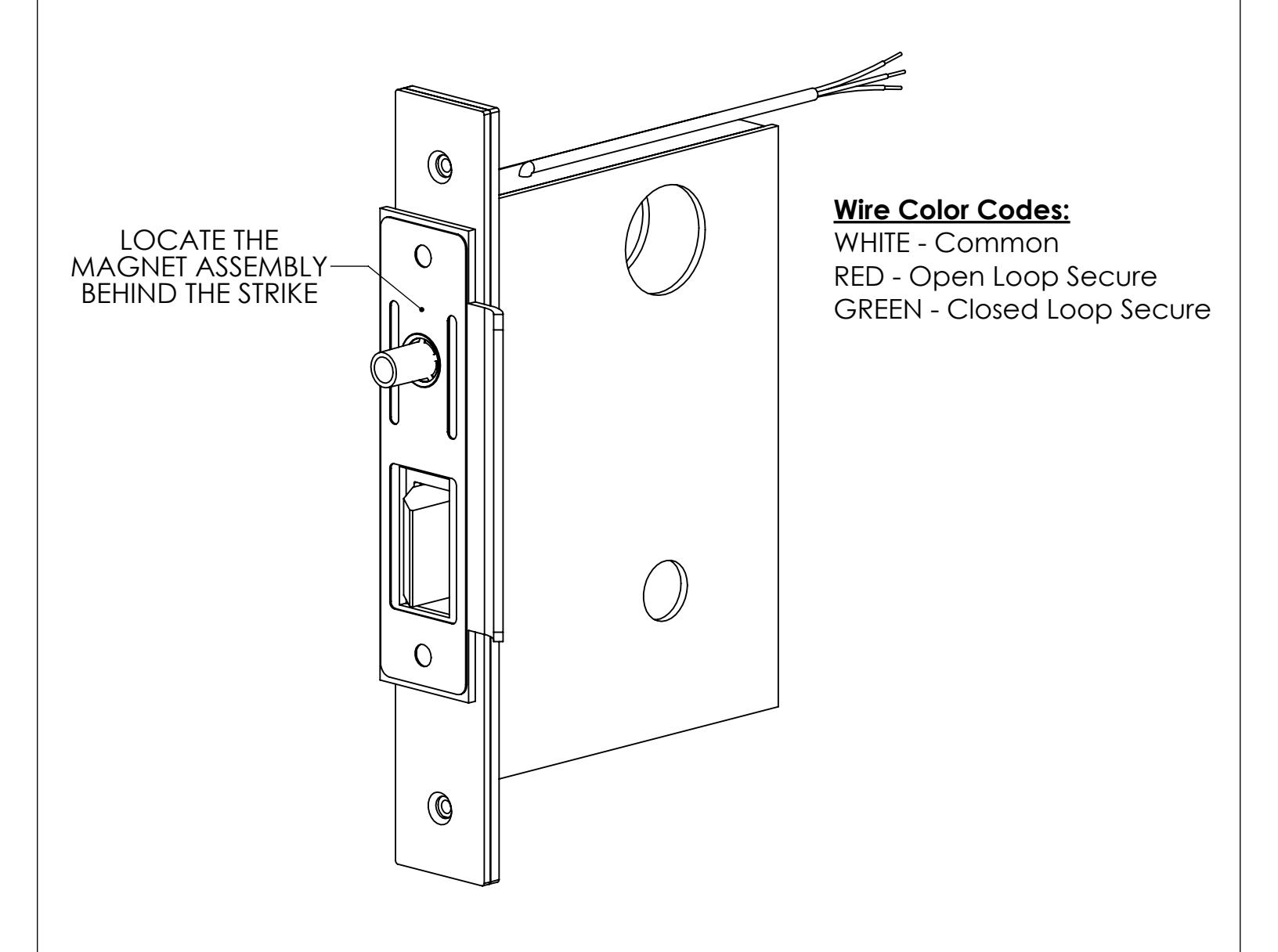

A magnetic sensor mounted in the mortise lock reacts to the proximity of a magnet mounted behind the ASA strike.
Electrical Specifications:
SPDT Monitor Switch
Contacts Rated: 0.3A @ 28VDC
