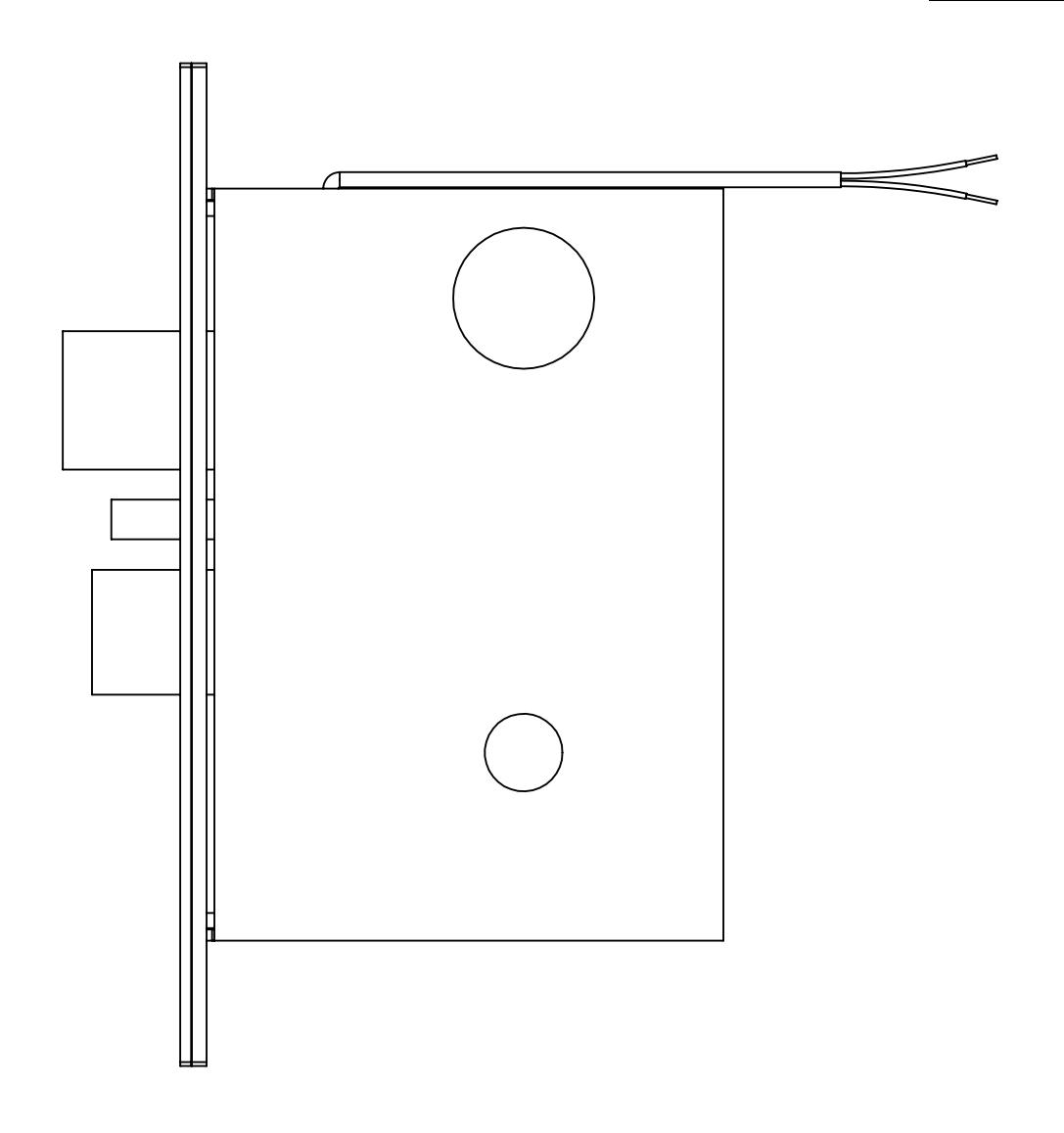

ELECTRIC MORTISE LOCK INSTRUCTIONS DS - DEADBOLT SECURED (MOTOR-CONTROLLED)
Description:
The full extension of the deadbolt disables the electrical control of a fail secure lockset locking the OUTSIDE trim. Retracting the deadbolt will enable the electrical control. Free egress at all times.
Electrical Specifications:
Voltage: 12-24V AC/DC (11V - 30V)
Current: 250mA MAX Inrush, 10mA MAX Holding
Non-polarized Leads
| 2-Conductor Wire Run | |
|---|---|
|
Distance
12V/24V |
Wire Gauge |
| 125'/250' | 22 |
| 200'/400' | 20 |
| 300'/600' | 18 |
| 500'/1000' | 16 |
| 750'/1500' | 14 |
| 1250'/2500' | 12 |
