ACSI Electric Mortise Lock Instructions Security Monitoring II-M1500-11

ELECTRIC MORTISE LOCK INSTRUCTIONS SM - SECURITY MONITORING

Description:

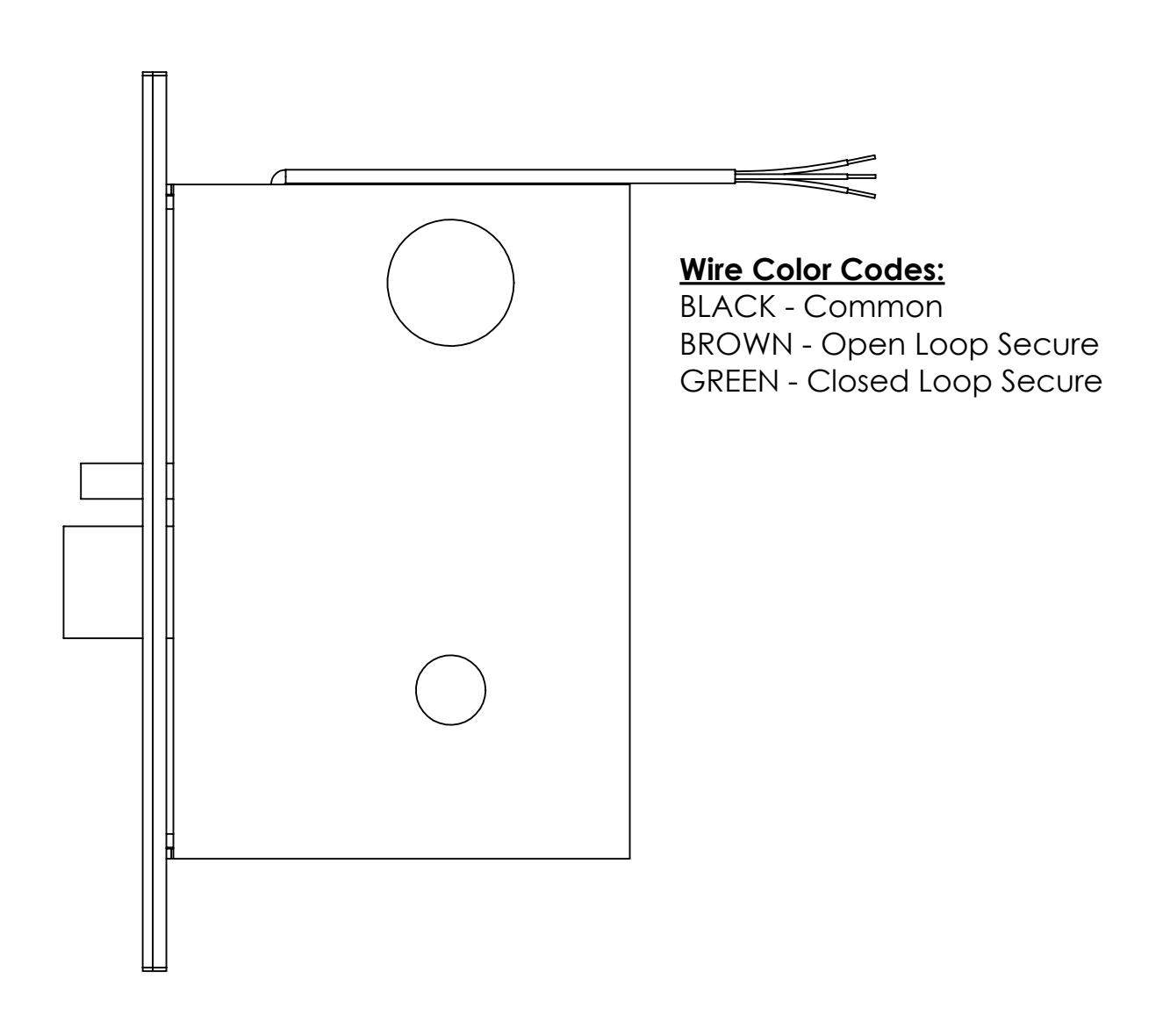

Monitors the locked or unlocked status (LB - Locking Bar Monitor) and the dead latch status (AM - Auxiliary Latch Monitor) in series.

The OUTSIDE trim must be locked and the auxiliary latch must be depressed (as when the door is closed) to get a secure signal.

Electrical Specifications:

SPDT Monitor Switch

Contacts Rated: 3A @ 125VAC

2A @ 30VDC
