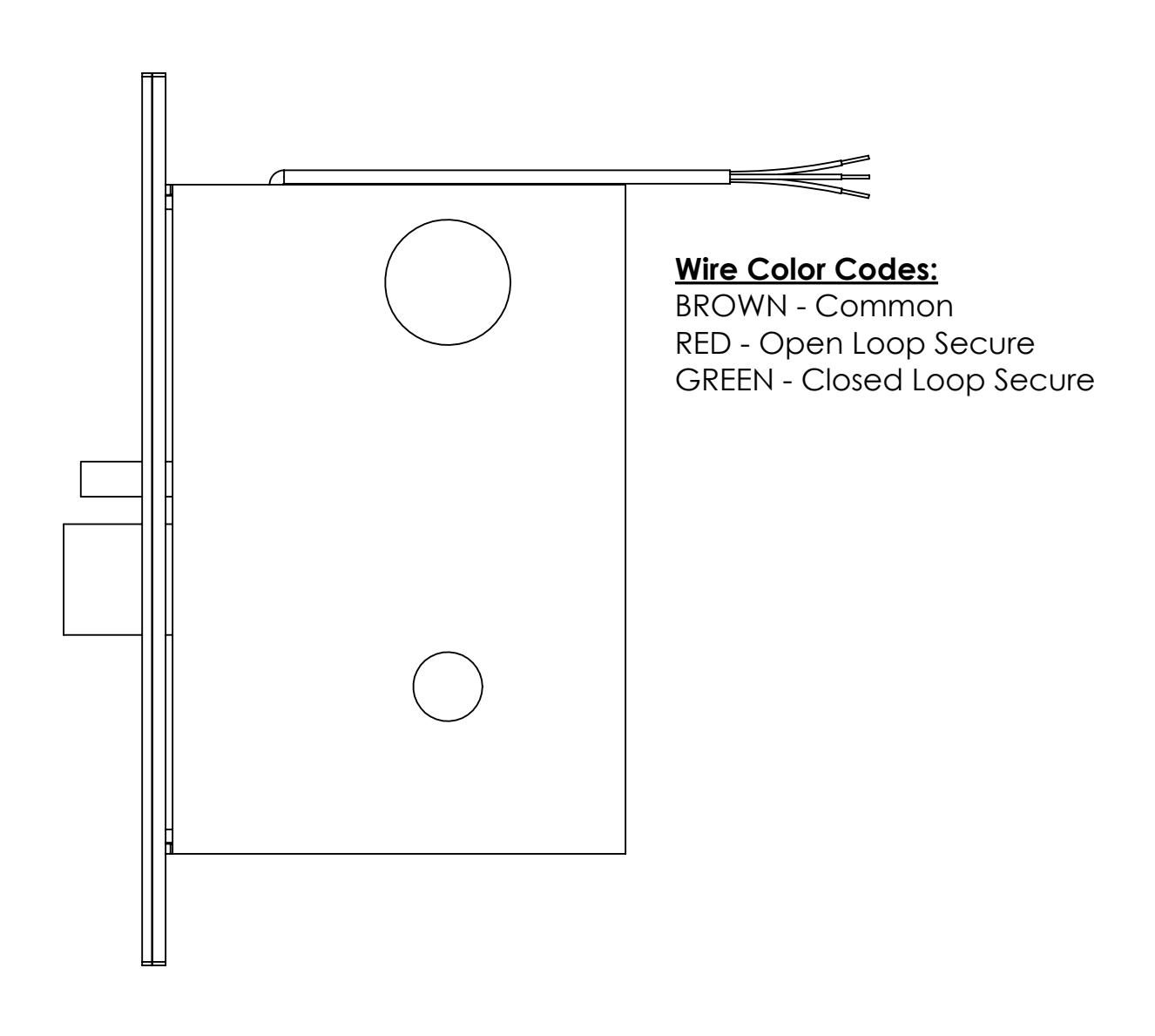

ELECTRIC MORTISE LOCK INSTRUCTIONS LB - LOCKING BAR MONITOR
Description:
Monitors the position of the locking bar.
Electrical Specifications:
SPDT Monitor Switch
Contacts Rated: 3A @ 125VAC
2A @ 30VDC
