ELECTRIC MORTISE LOCK INSTRUCTIONS DMS - DEADBOLT MONITOR SECURED (SOLENOID-CONTROLLED)
Description:
Monitors the full extension of the deadbolt (DM - Deadbolt Monitor) disabling the electrical control of a fail secure lockset locking the OUTSIDE trim. Retracting the deadbolt will enable the electrical control. Free egress at all times.
Electrical Specifications:

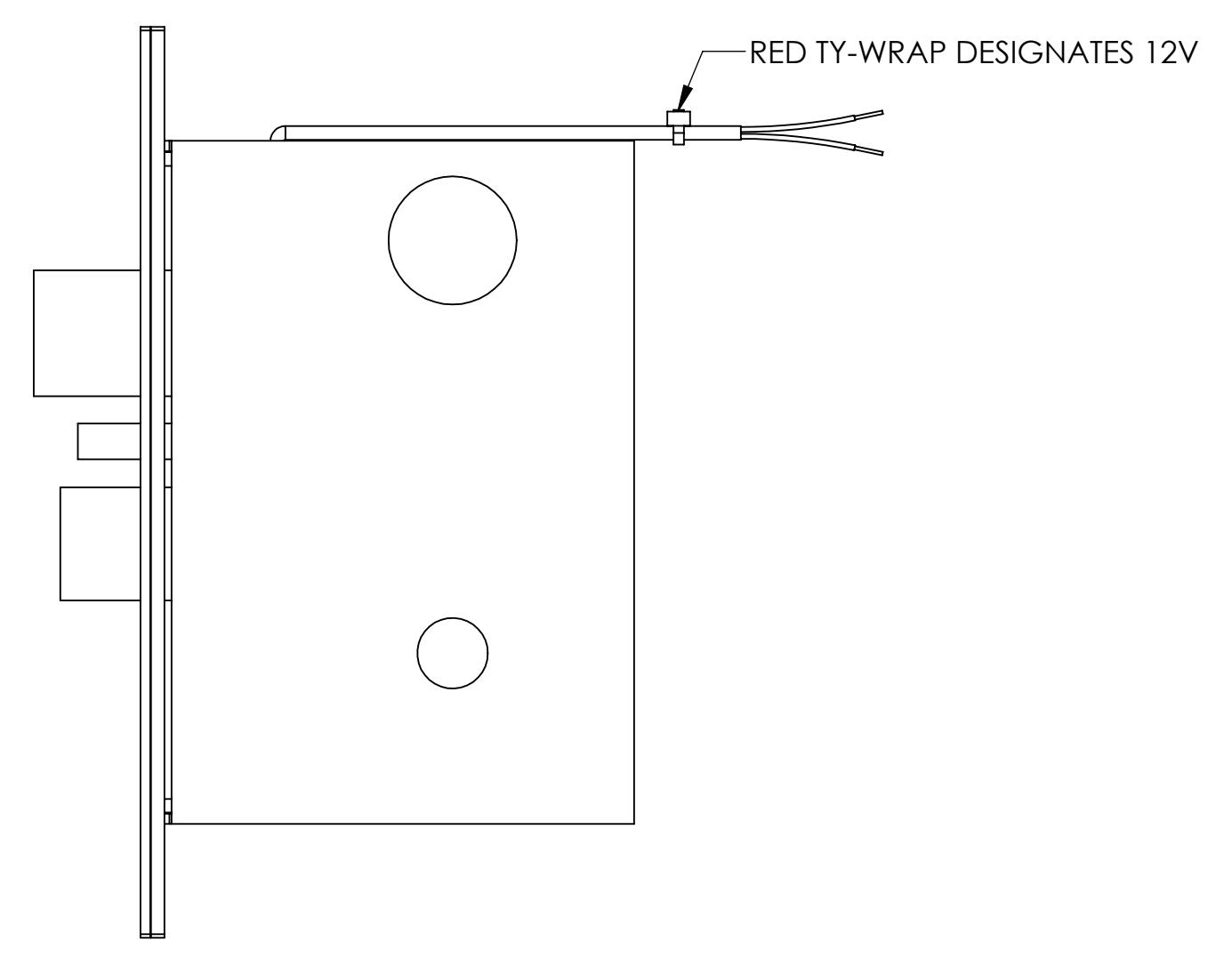

Continuous Duty Solenoids
- 12VAC/DC 10%, 612mA
- 12VDC 10%, 612mA
- 24VAC/DC 10%, 330mA
- 24VDC 10%, 330mA
Non-polarized Leads
- Blue (AC/DC)
- White (DC)
| 2-Conductor Wire Run | |
|---|---|
|
Distance
12V/24V |
Wire Gauge |
| 50'/175' | 22 |
| 75'/275' | 20 |
| 120'/450' | 18 |
| 200'/700' | 16 |
| 300'/1100' | 14 |
| 500'/1800' | 12 |
