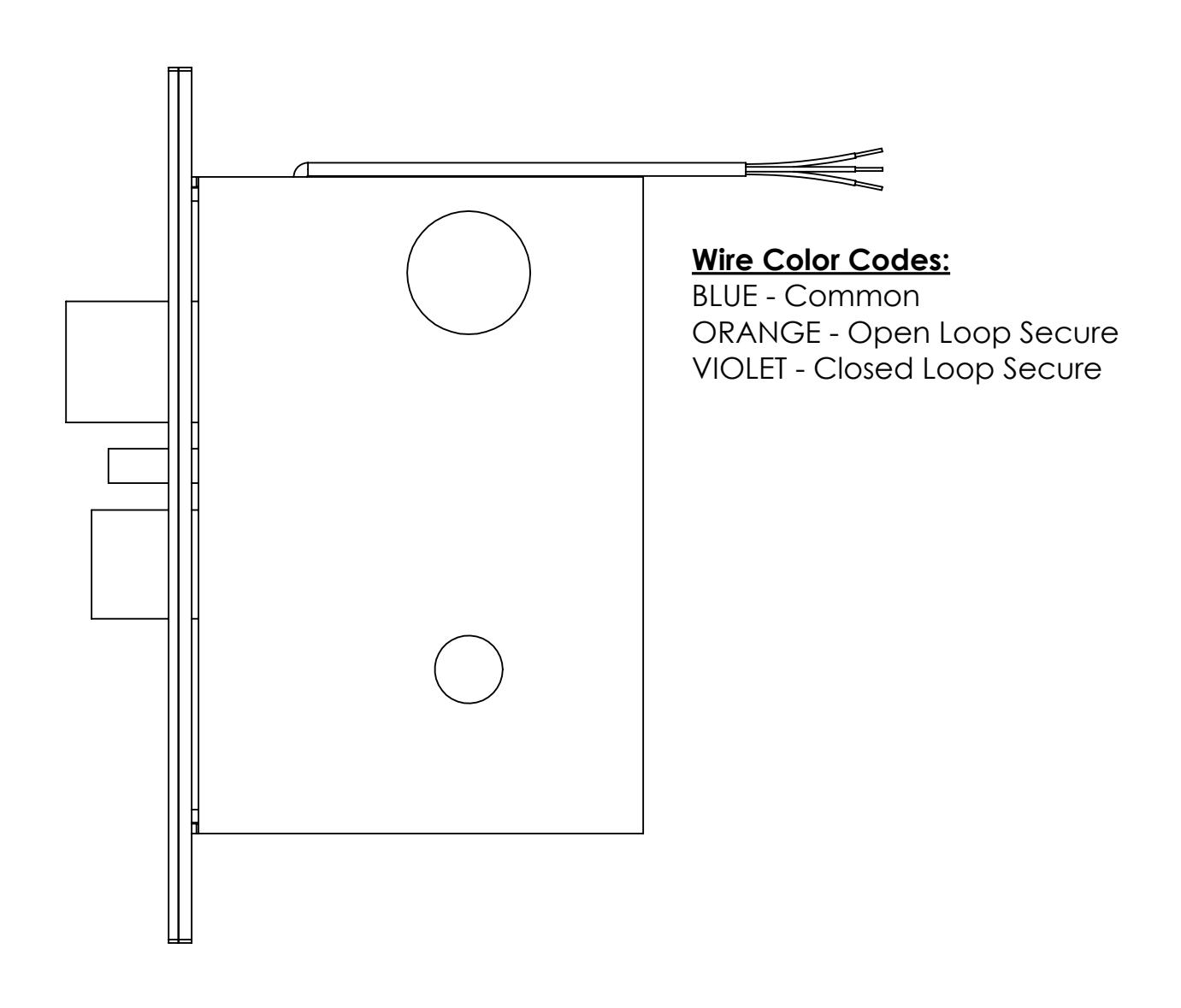

ELECTRIC MORTISE LOCK INSTRUCTIONS DM - DEADBOLT MONITOR

Description:

Monitors the full extension of the deadbolt.

Electrical Specifications:

SPDT Monitor Switch

Contacts Rated: 3A @ 125VAC

2A @ 30VDC
