ACSI Electric Mortise Lock Instructions Configuration Door Prepration M1500-03

ELECTRIC MORTISE LOCK TEMPLATE "C" CONFIGURATION DOOR PREPARATION

1500 ELECTRIC MONITOR 1510/1520 ELECTRIC LOCKING/UNLOCKING

Notes:

• 1. This door preparation is in addition to the door preparation shown on the manufacturer's mechanical mortise lock template.
• 2. The door manufacturer to provide the door with adequate construction and reinforcement for proper support and installation of the door hardware.

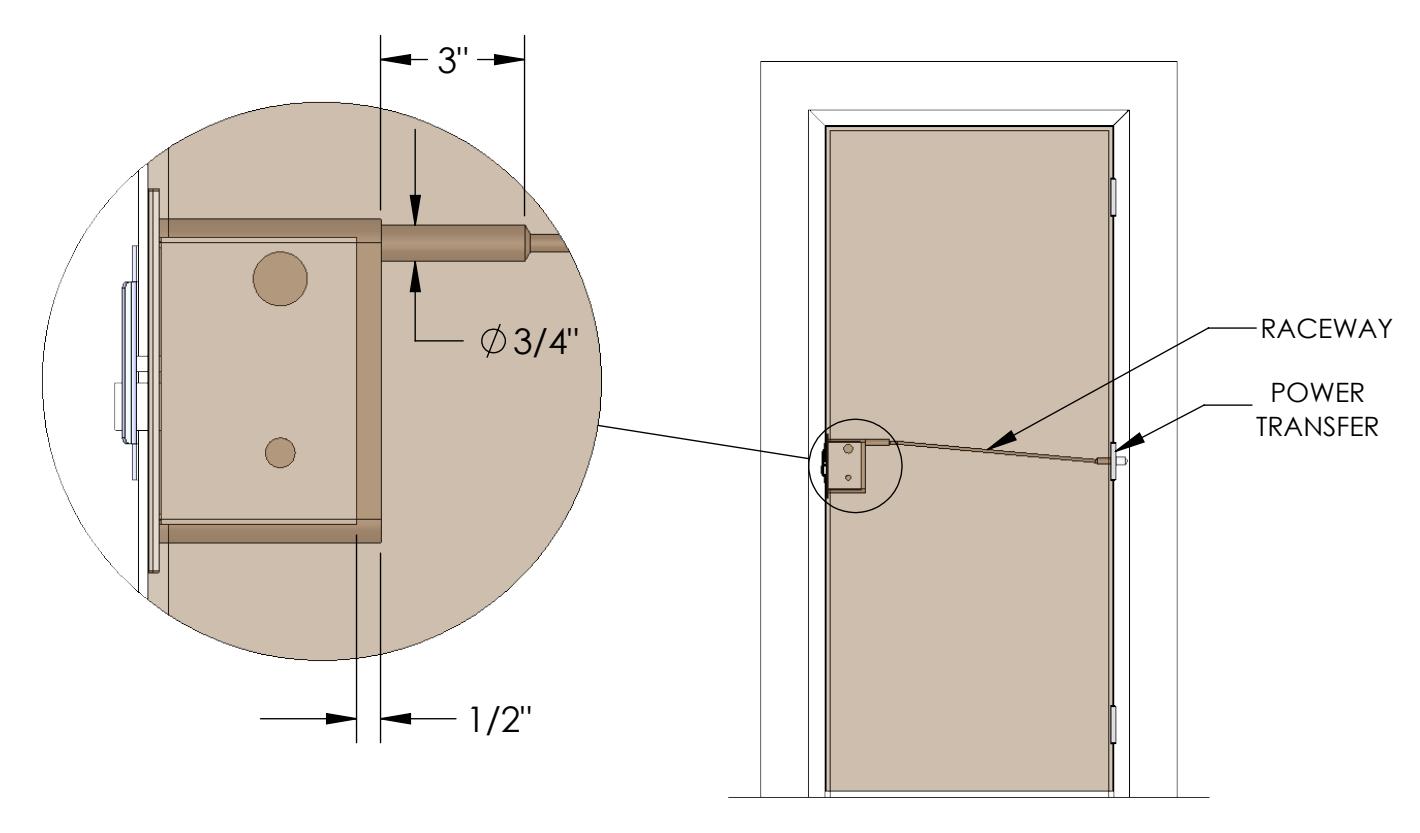

• 3. The door manufacturer to provide a 3/8" raceway through the door between the mortise lock and the low voltage power transfer for wire routing.

VIEW FROM OUTSIDE OF DOORWAY
