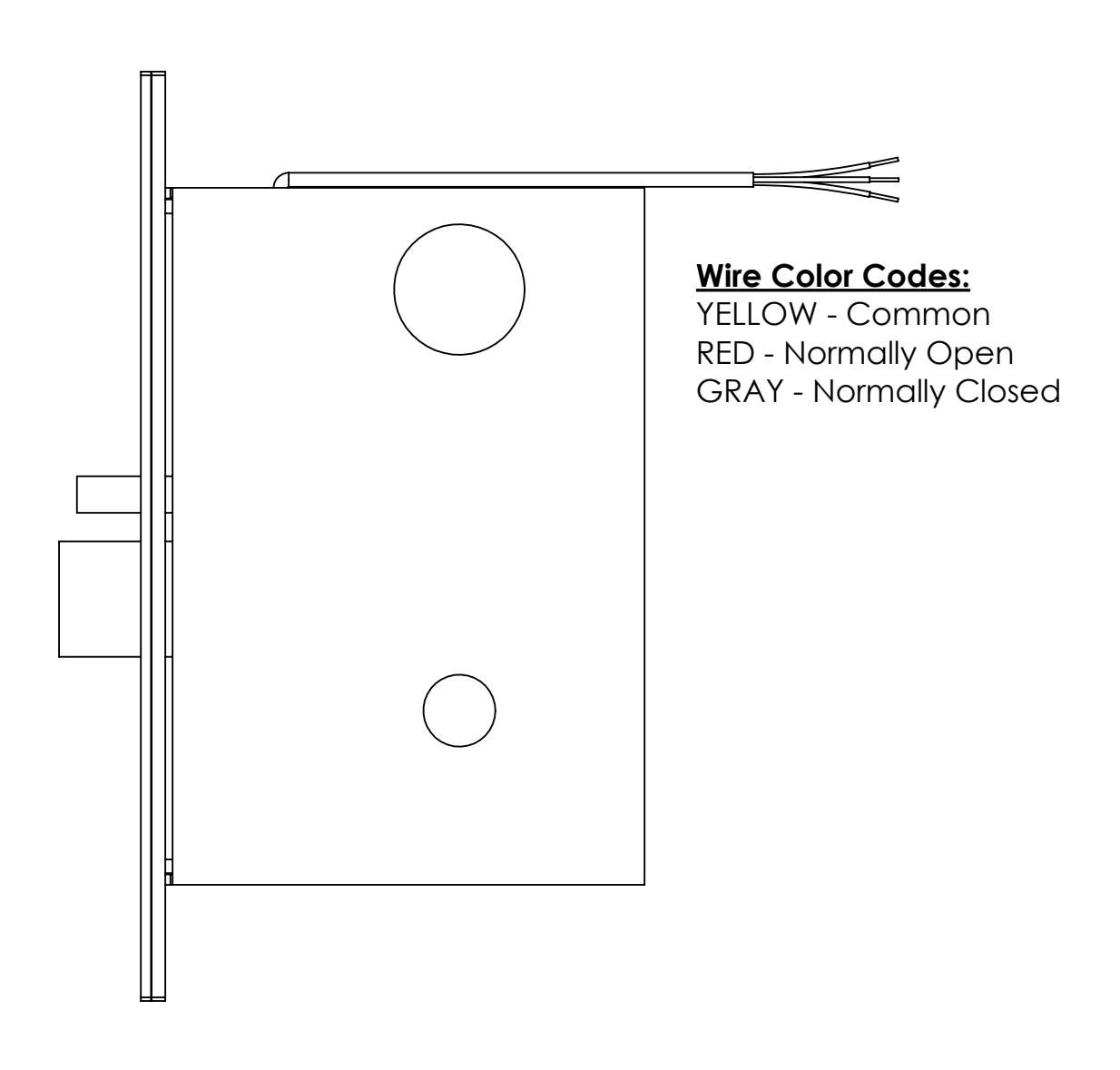

ELECTRIC MORTISE LOCK INSTRUCTIONS AE - AUTHORIZED EGRESS (REQUEST-TO-EXIT)
Description:
Monitors the use of the INSIDE trim when the OUTSIDE trim is locked.
Electrical Specifications:
SPDT Monitor Switch
Contacts Rated: 3A @ 125VAC
2A @ 30VDC
