ELECTRIC EXIT DEVICE TEMPLATE DOOR PREPARATION
1500 ELECTRIC MONITOR 1540 ELECTRIC DOGGING 1550 ELECTRIC LATCH RETRACTION 1560/1570 ELECTRIC TRIM CONTROL
Notes:
- 1. This door preparation is in addition to the door preparation shown on the manufacturer's mechanical exit device template.
- 2. The door manufacturer to provide the door with adequate construction and reinforcement for proper support and installation of the door hardware.

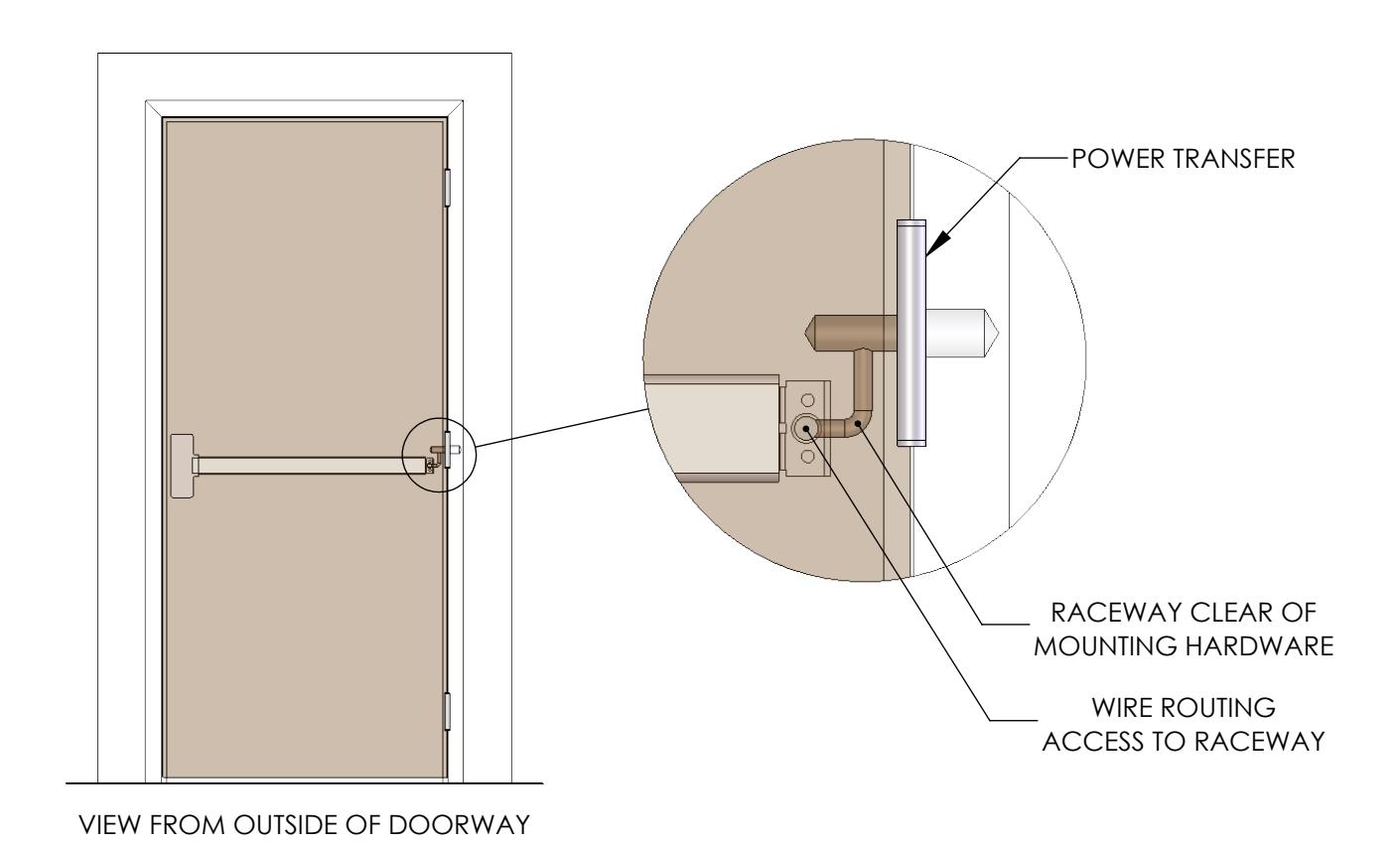

- 3. The door manufacturer to provide a 3/8" raceway through the door between the exit device's wire access feature and the low voltage power transfer for wire routing.
