EXIT DEVICE INSTALLATION INSTRUCTIONS

K-203 SWITCH KIT

SARGENT 80 SERIES ARROW 1000, 3000, AND 4000 SERIES DOREX 9500 SERIES SWITCH MONITORS EGRESS BY PUSHBAR ACTIVATION OF EXIT DEVICE

CENTER LINE OF DEVICE CHANNEL

ELECTRICAL SPECIFICATIONS

• 2 EACH SPDT MONITOR SWITCH
• CONTACT RATING: 4 AMP @ 250VAC

COLOR CODE FOR WIRES

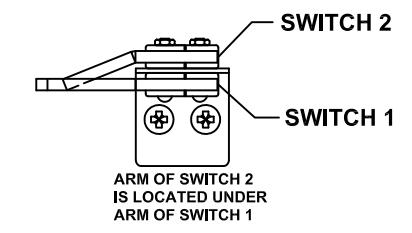

SWITCH #1

• YELLOW WIRE: COMMON
• RED WIRE: NORMALLY OPEN
• GRAY WIRE: NORMALLY CLOSED

SWITCH #2

• BLACK WIRE: COMMON
• ORANGE WIRE: NORMALLY OPEN
• VIOLET WIRE: NORMALLY CLOSED

⊕)

INSTALLATION INSTRUCTIONS

STEP 1: REMOVE END COVER FROM CHANNEL.

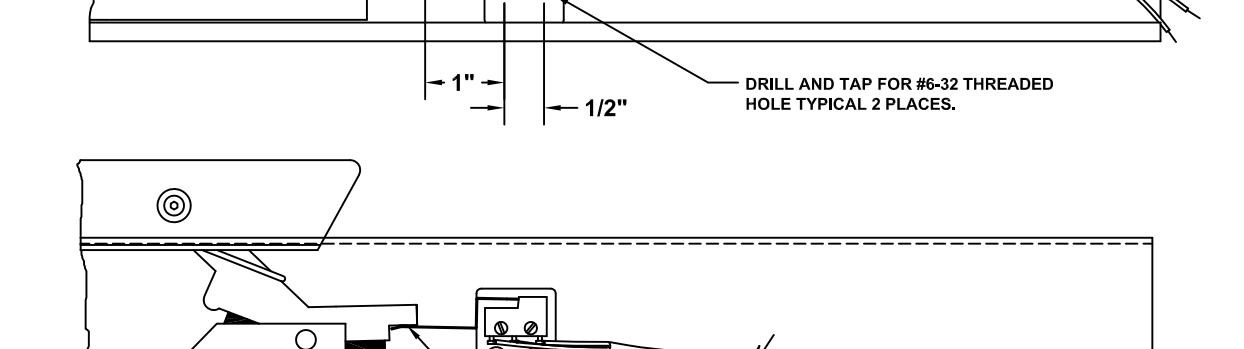

STEP 2: LOCATE CENTER OF CHANNEL, THEN MARK DIMENSIONS AS SHOWN.

STEP 3: AFTER DIMENSIONS ARE MARKED CENTER PUNCH FOR 2 DRILL HOLES.

USE A #36 (.106 DIA.) DRILL BIT FOR PROPER TAP DRILL SIZE.

STEP 4: DRILL HOLES FOR BRACKET, NEXT USING A #6-32 TAPER TAP, TAP THE 2 HOLES.

STEP 5: DEBURR HOLES SO THAT BRACKET WILL SIT FLAT.

STEP 6: DEPRESS PUSHBAR THEN MAKE SURE THAT SWITCH ARM IS LOCATED UNDER END OF PIVOT, THEN SECURE BRACKET WITH PROVIDED HARDWARE.

STEP 7: SWITCH SHOULD FUNTION AS FOLLOWS: SWITCH ARM SHOULD BE ACTIVATED WHEN PUSHBAR IS IN RELAXED POSITION. SWITCH ARM SHOULD DE-ACTIVATE WHEN PUSHBAR IS DEPRESSED.

STEP 8: MOUNT DEVICE, TERMINATE WIRES ACCORDINGLY WITH PROPER WIRE NUTS OR CRIMPS.

SWITCH ARM LOCATED UNDER PUSHBAR PIVOT AS SHOWN

5/16
