ACSI Electric Exit Device Installation Instructions K-126 Single and K-226 Dual Switch Kit – E1500-16

EXIT DEVICE INSTALLATION INSTRUCTIONS

K-126 (SINGLE) AND K-226 (DUAL) SWITCH KIT

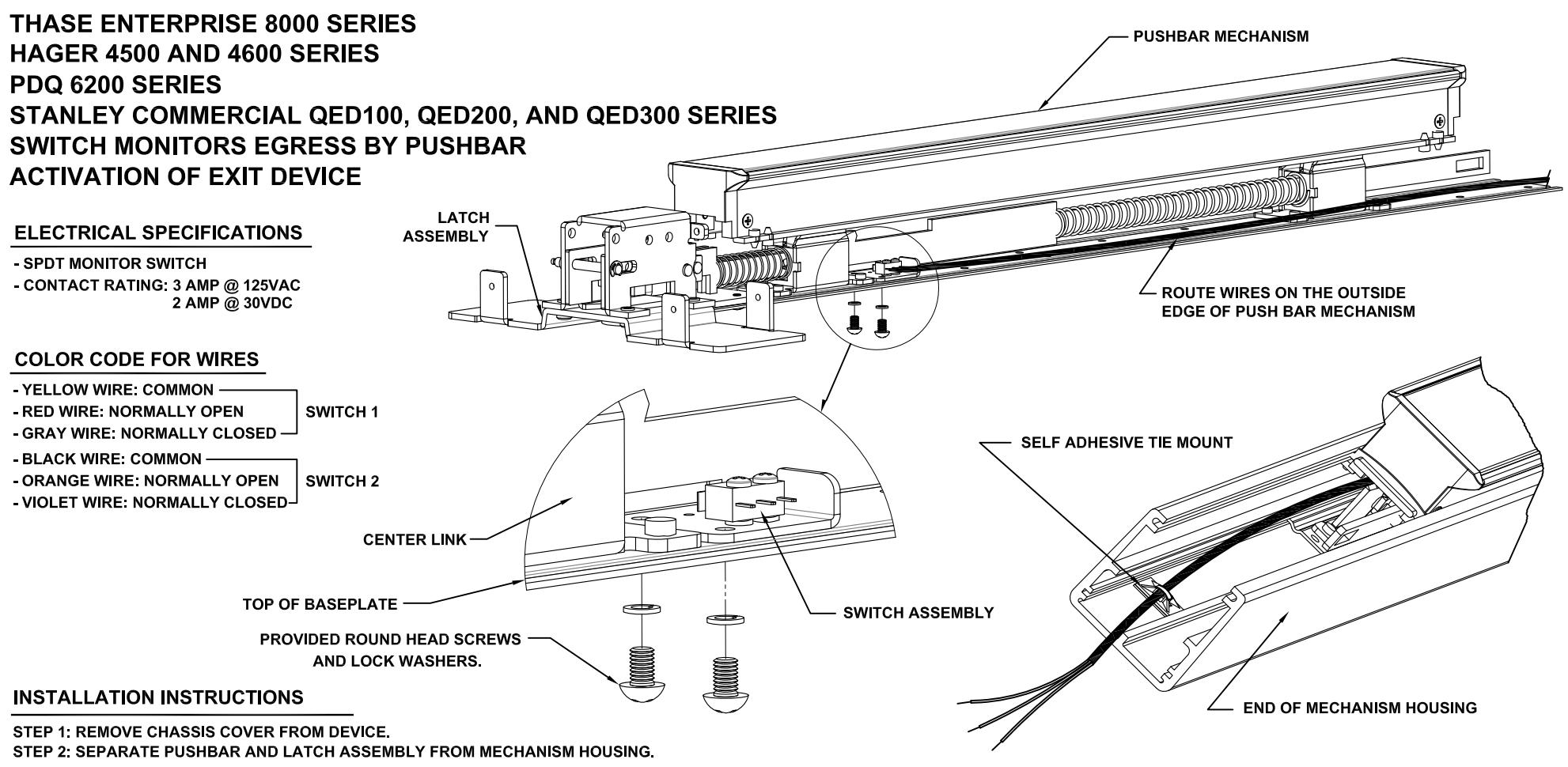

STEP 3: PLACE SWITCH ASSEMBLY INTO DEVICE AS SHOWN. ASSEMBLY FITS OVER TOP OF EXISTING HOLES.

STEP 4: MAKE SURE SWITCH ARM IS PLACED ON OUTSIDE OF THE CENTER LINK ON THE PUSHBAR SO THAT THE SWITCH IS PREACTIVATED.

STEP 5: USE PROVIDED ROUND HEAD SCREWS AND LOCK WASHERS TO SECURE SWITCH ASSEMBLY TO PUSHBAR BASEPLATE.

STEP 6: CHECK FOR PROPER SWITCH ACTIVATION WHEN PUSHBAR IS FULLY DEPRESSED SWITCH SHOULD ACTIVATE.

STEP 7: RUN THE WIRES ALONG THE OUTSIDE EDGE OF THE PUSHBAR MECHANISM.

STEP 8: RE-ASSEMBLE THE MECHANISM HOUSING ONTO THE PUSHBAR MECHANISM.

STEP 9: SECURE SELF ADHESIVE TIE MOUNT HOLDER TO BOTTOM OF MECHANISM HOUSING IN THE END OF DEVICE AS SHOWN.

STEP 10: MAKE SURE COLOR CODE FOR WIRES IS USED FOR PROPER HOOK-UP OF SWITCH CONTACTS.
